Description

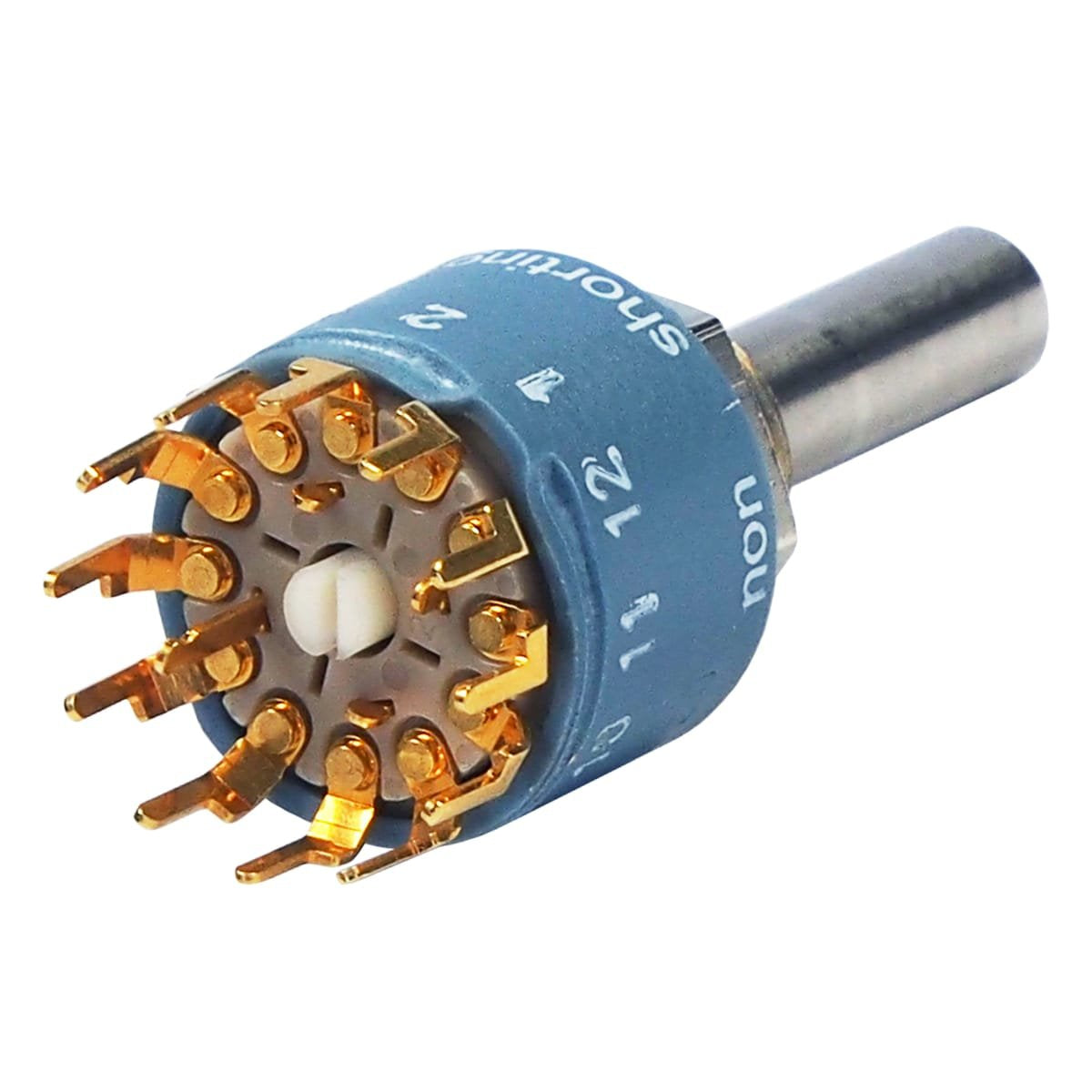

xThis compact 12-position rotary selector switch is designed for high-density PCB mounting. Featuring a robust M10 threaded bushing and a 6mm stainless steel shaft, it provides a precise 30° indexing angle and is rated for 25,000 switching cycles. Its gold-plated contacts ensure high signal integrity, making it ideal for industrial controls and medical instrumentation where space is at a premium but reliability is critical.
Product Features
x- 30° indexing angle
- From 1 x 12 to 4 x 3 poles per positon per wafer
- Gold plated contacts
- IP60 or IP68 shaft / front planel sealing
- Ø 3, 4 or 6 mm stainless steel shaft
- Operating temperature from -40 to +85 °C
- Shorting or non-shorting
- Soldering eyelets or pins for PCB
- Endless rotating or with end stop
- Various options and customizations available
Product Information
xItem/Part Number01-1xxx-20/70xx-12-N
Item Description01 with pins for PCB | 12 positions | M10
