Description

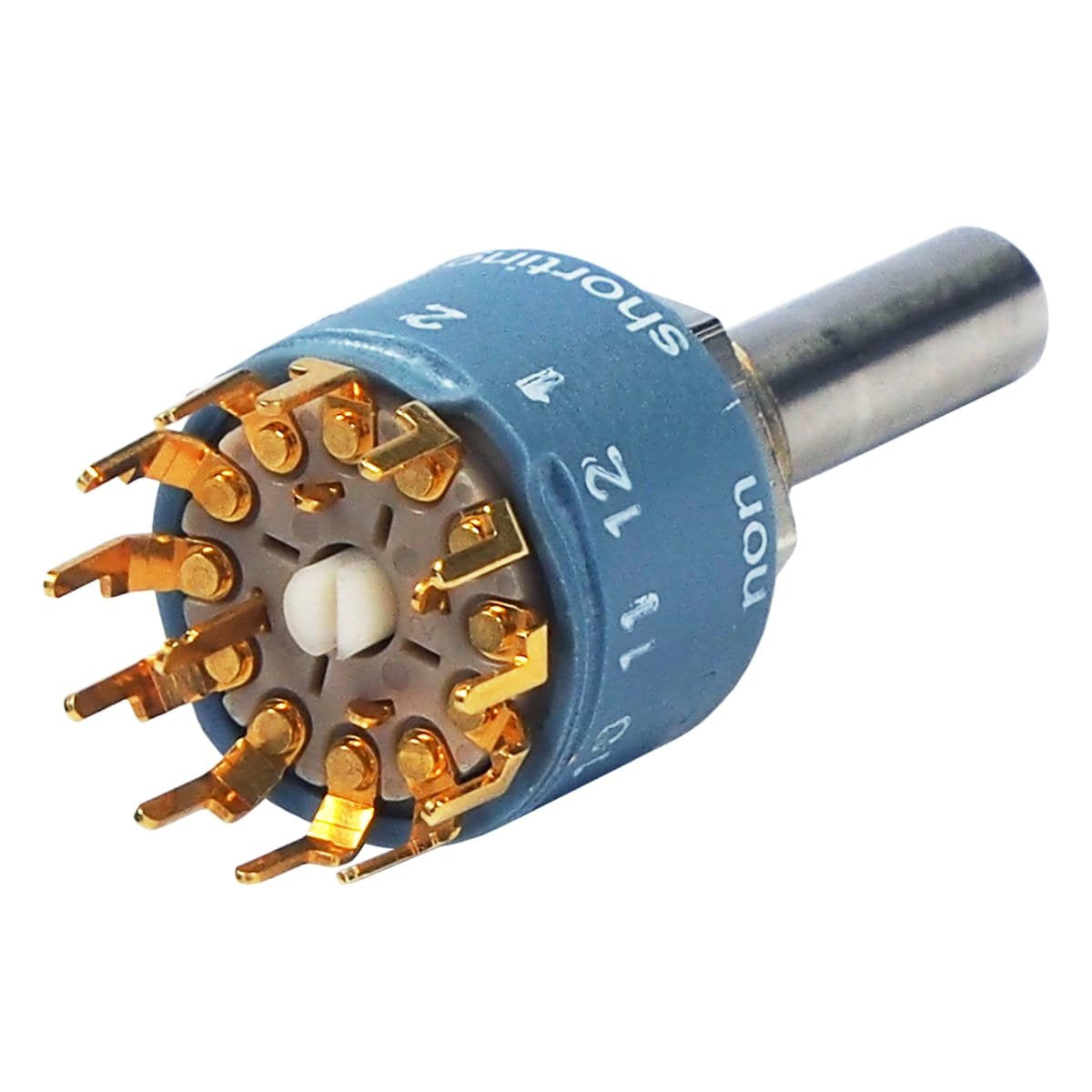

xEngineered for complex signal routing, this dual-wafer version of the Type 01 selector switch offers twice the switching capacity in a single compact footprint. With 12 positions per wafer and a rugged M10 mounting interface, it is perfect for applications requiring multi-pole switching or simultaneous control of separate circuits. The PCB pin terminals allow for secure, direct integration into circuit boards for avionics and high-end audio equipment.
Product Features
x- 30° indexing angle
- From 1 x 12 to 4 x 3 poles per positon per wafer
- Gold plated contacts
- IP60 or IP68 shaft / front planel sealing
- Ø 3, 4 or 6 mm stainless steel shaft
- Operating temperature from -40 to +85 °C
- Shorting or non-shorting
- Soldering eyelets or pins for PCB
- Endless rotating or with end stop
- Various options and customizations available
Product Information
xItem/Part Number01-2xxx-20/70xx-12-N
Item Description01 with pins for PCB | 12 positions | M10 | 2 wafers
