Description

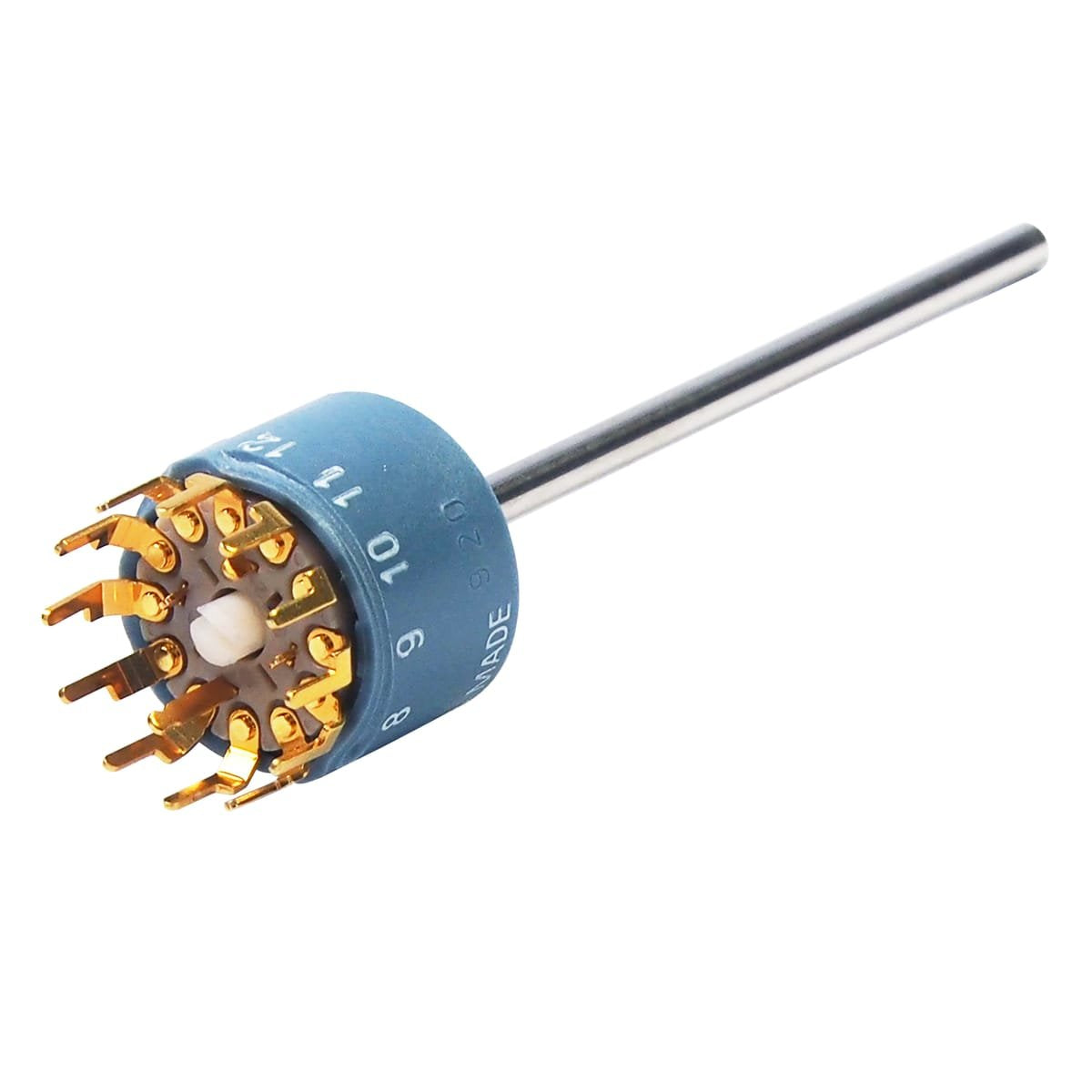

xThe M6 variant represents the most compact mounting option in the Type 01 12-position family. Despite its smaller 6mm bushing, this 2-wafer selector switch offers high-performance multi-deck switching. It is specifically designed for miniaturized electronic devices and handheld industrial controllers that require a 30° detent and long-life durability.
Product Features
x- 30° indexing angle
- From 1 x 12 to 4 x 3 poles per positon per wafer
- Gold plated contacts
- IP60 or IP68 shaft / front planel sealing
- Ø 3, 4 or 6 mm stainless steel shaft
- Operating temperature from -40 to +85 °C
- Shorting or non-shorting
- Soldering eyelets or pins for PCB
- Endless rotating or with end stop
- Various options and customizations available
Product Information
xItem/Part Number01-2xxx-20/70xx-12-M
Item Description01 with pins for PCB | 12 positions | M6 | 2 wafers
