Description

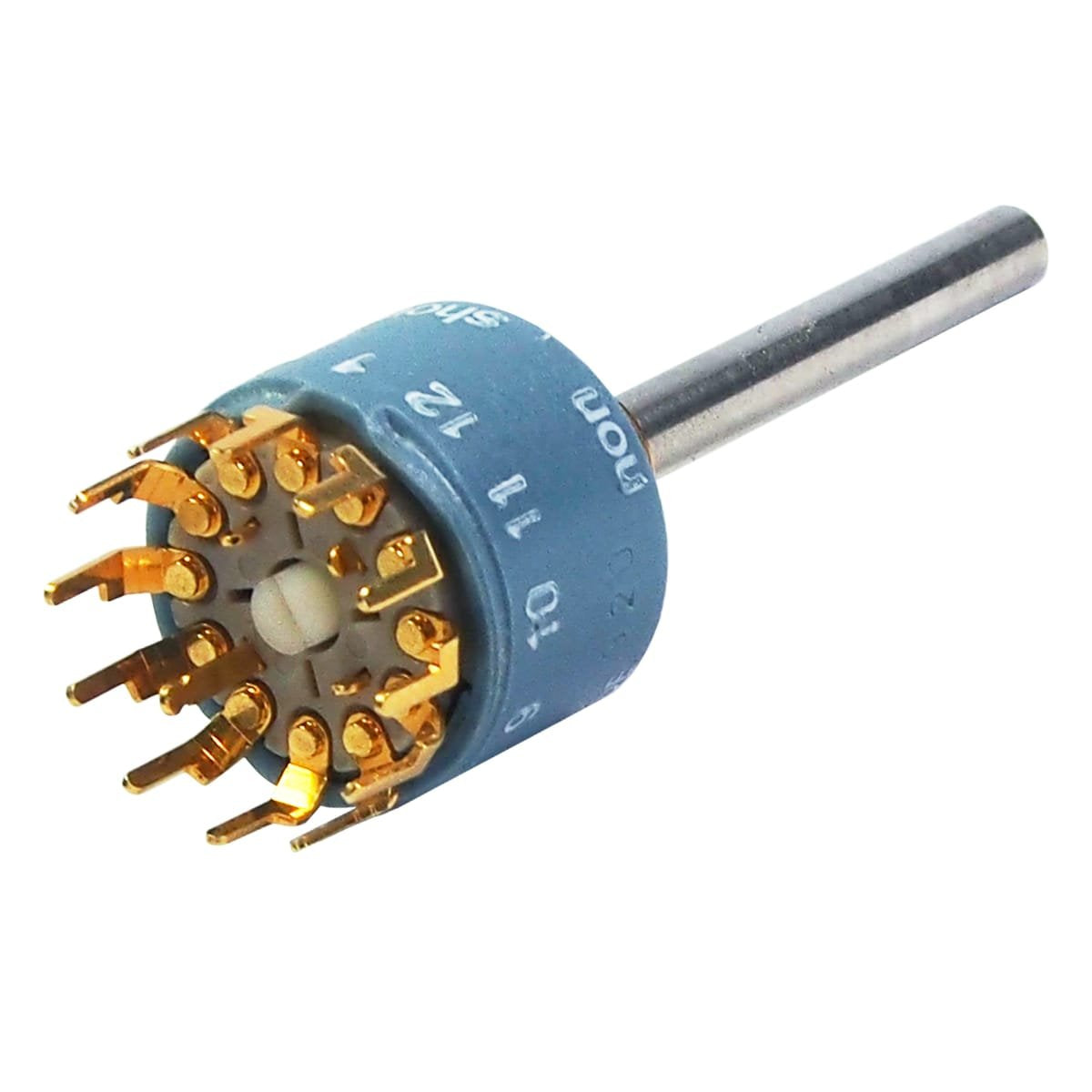

xThis variation utilizes an M8 threaded bushing for applications requiring a smaller mounting profile than the M10 standard. This 12-position switch provides the same world-renowned Elma "switching feel" and 3-micron gold-plated contacts. The M8 housing is optimized for tight front-panel layouts in test and measurement systems.
Product Features
x- 30° indexing angle
- From 1 x 12 to 4 x 3 poles per positon per wafer
- Gold plated contacts
- IP60 or IP68 shaft / front planel sealing
- Ø 3, 4 or 6 mm stainless steel shaft
- Operating temperature from -40 to +85 °C
- Shorting or non-shorting
- Soldering eyelets or pins for PCB
- Endless rotating or with end stop
- Various options and customizations available
Product Information
xItem/Part Number01-1xxx-20/70xx-12-0
Item Description01 with pins for PCB | 12 positions | M8
