Description

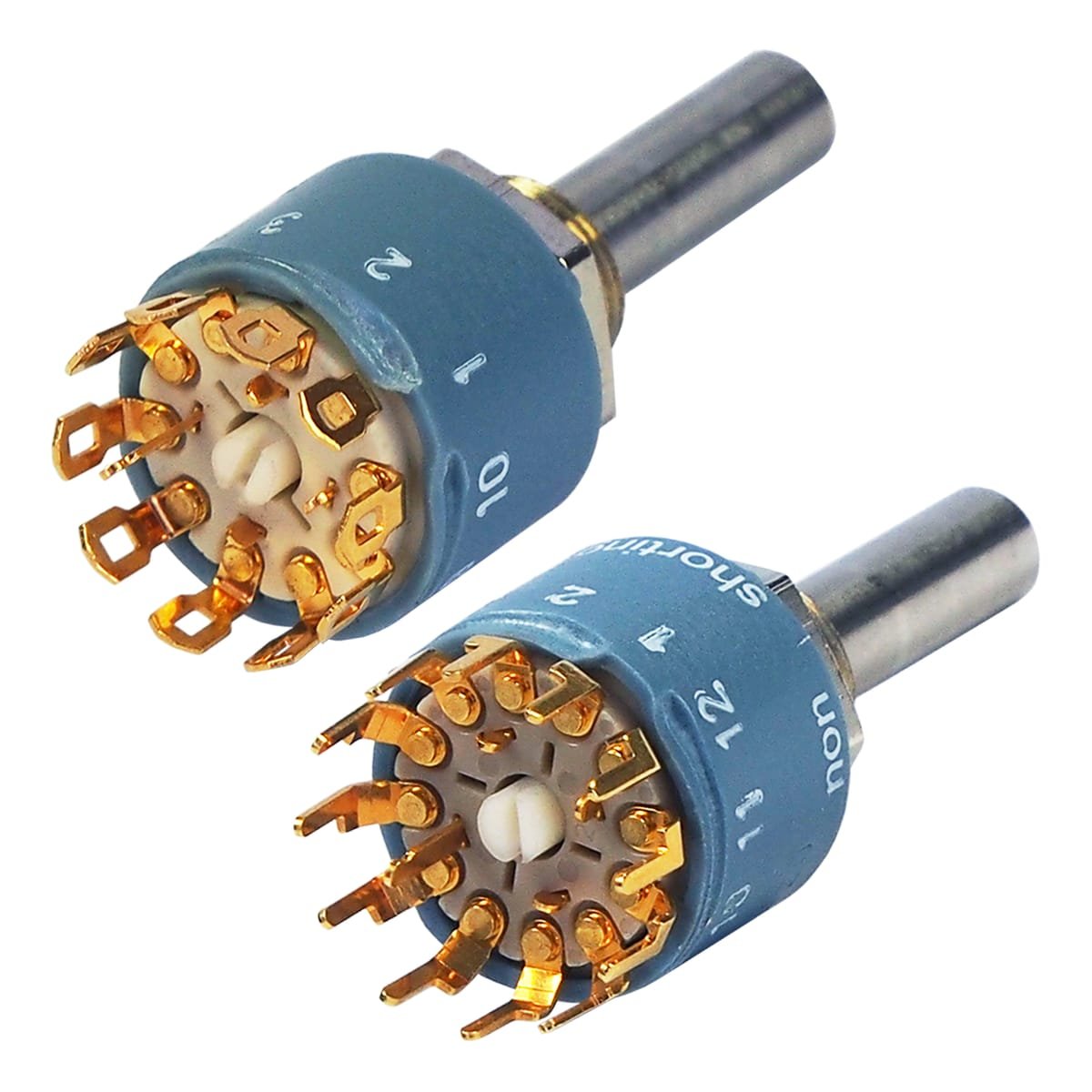

xA versatile range of compact selector switches featuring flexible termination options (PCB pins or solder eyelets) and various mounting sizes. This series supports 6, 10, or 12 positions with indexing angles of 30°, 36°, or 60°. Constructed with stainless steel shafts and optional IP68 sealing, these switches are the go-to solution for rugged embedded environments.
Product Features
x- 30°, 36° or 60° indexing angle
- From 1 x 12 to 4 x 3 poles per positon per wafer
- Gold plated contacts
- IP60 or IP68 shaft / front planel sealing
- Ø 3, 4 or 6 mm stainless steel shaft
- Operating temperature from -40 to +85 °C
- Shorting or non-shorting
- Soldering eyelets or pins for PCB
- Endless rotating or with end stop
- Various options and customizations available
Product Information
xItem/Part Number01-Selector-Overview
Item Description01 with pins for PCB or soldering eyelets | 6, 10, 12 positions | M6, M8, M10
