Description

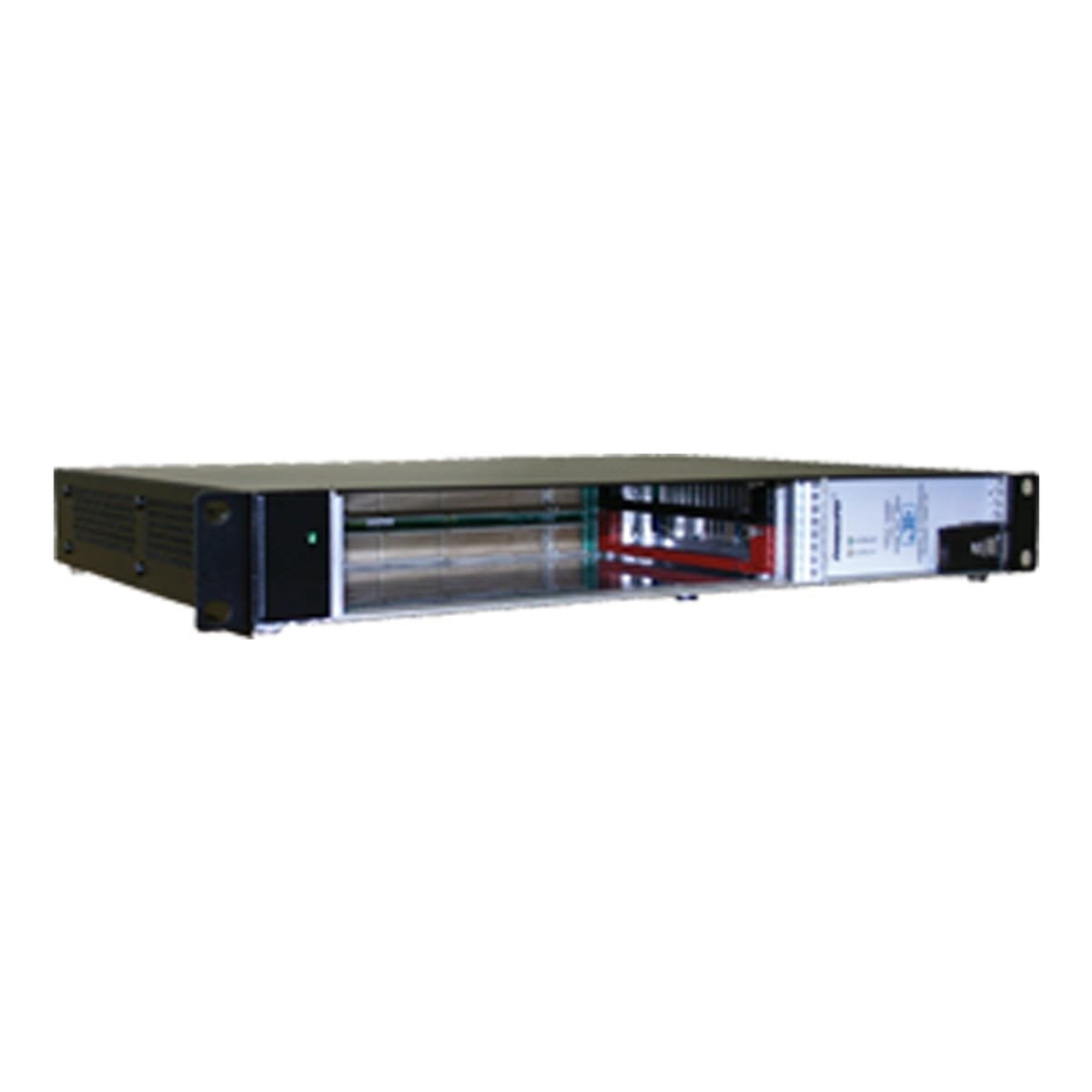

xThe Type 39C, 1U is an advanced generation of CompactPCI chassis for PICMG 2.0, 2.16, 2.17, and EXP.0 applications. IEEE 1101.10/11, 6U x 160mm CPCI cards from the front and 6U x 80mm I/O cards from the rear.
Configure Your Solution
Product Features
x- 19” Rackmount/Desktop fully compliant to Eurocard, IEEE 1101.10/11, and PICMG 2.0
- 1U x 84HP x 290mm (H x W x D)
- 6U horizontal card mounting
- 2 slot
- PICMG: 2.0 backplanes
- Advanced EMC shielding to meet CE, FCC, and NEBS
- Cooling side to side
- Pluggable PSU
- Ready to run - turnkey solution
- The unit holds a 2 slot CPCI backplane. Plug-in power supplies are standard. The platform meets the strict requirements of CE, FCC Class A and NEBS.
Product Information
xItem/Part Number39C02AD118Y3HCBX
Item Description2 Slot 1U CompactPCI 19" Rackmount Development Platform; Type 39 19" Rackmount Chassis
ArchitectureCPCI
Slots2
