Description

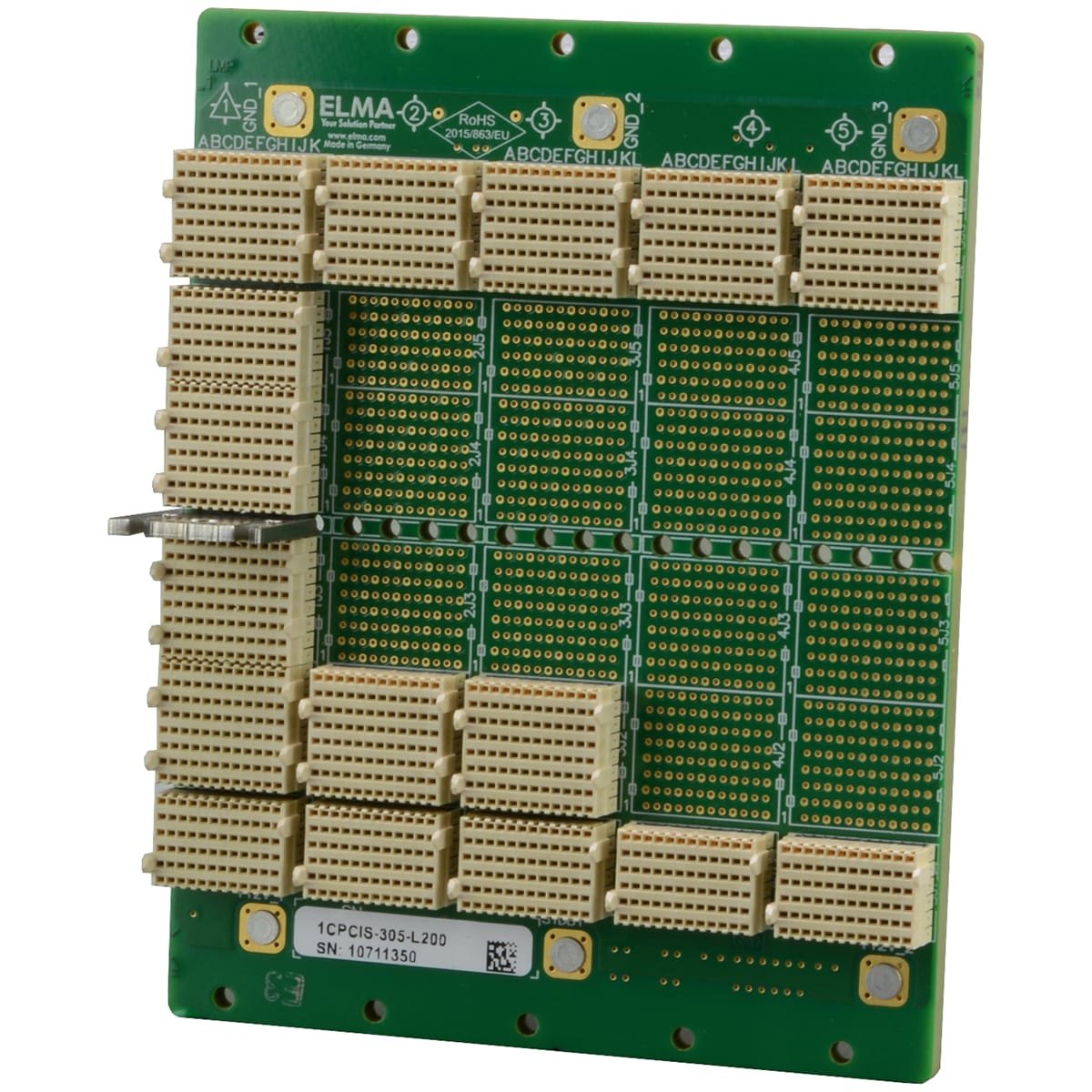

x3U CompactPCI Serial Backplane with 5 CompactPCI S.0 slots, system slot left, with rear IO : 1x CompactPCI S.0 CPU slot, 4x CompactPCI S.0 peripheral slots, with connectors for RTMs (RearTransition Modules) in slots 2 to 5, Ethernet full mesh
Product Features
x- CompactPCI Serial (PICMG CompactPCI-S.0) compliant backplane
- High-speed connectors supporting data transfer rates of up to 12 Gbps in all 5 slots
- Single star topology for serial interfaces such as PCI Express, SATA, USB2 and USB3 are provided by the CPCI S.0 system slot
- Europacard form factor in 3U height
- Ethernet routed as full mesh on the backplane
- Designed to support Rear Transition Modules
- With RTM connectors
Product Information
xItem/Part Number1CPCIS-305-L210
Item Description3U CompactPCI Serial 5-slot SSL w/ RTM w/ Ethernet
ArchitectureCPCI Serial
Slots5
Datasheets and Media
xDatasheet:
