Description

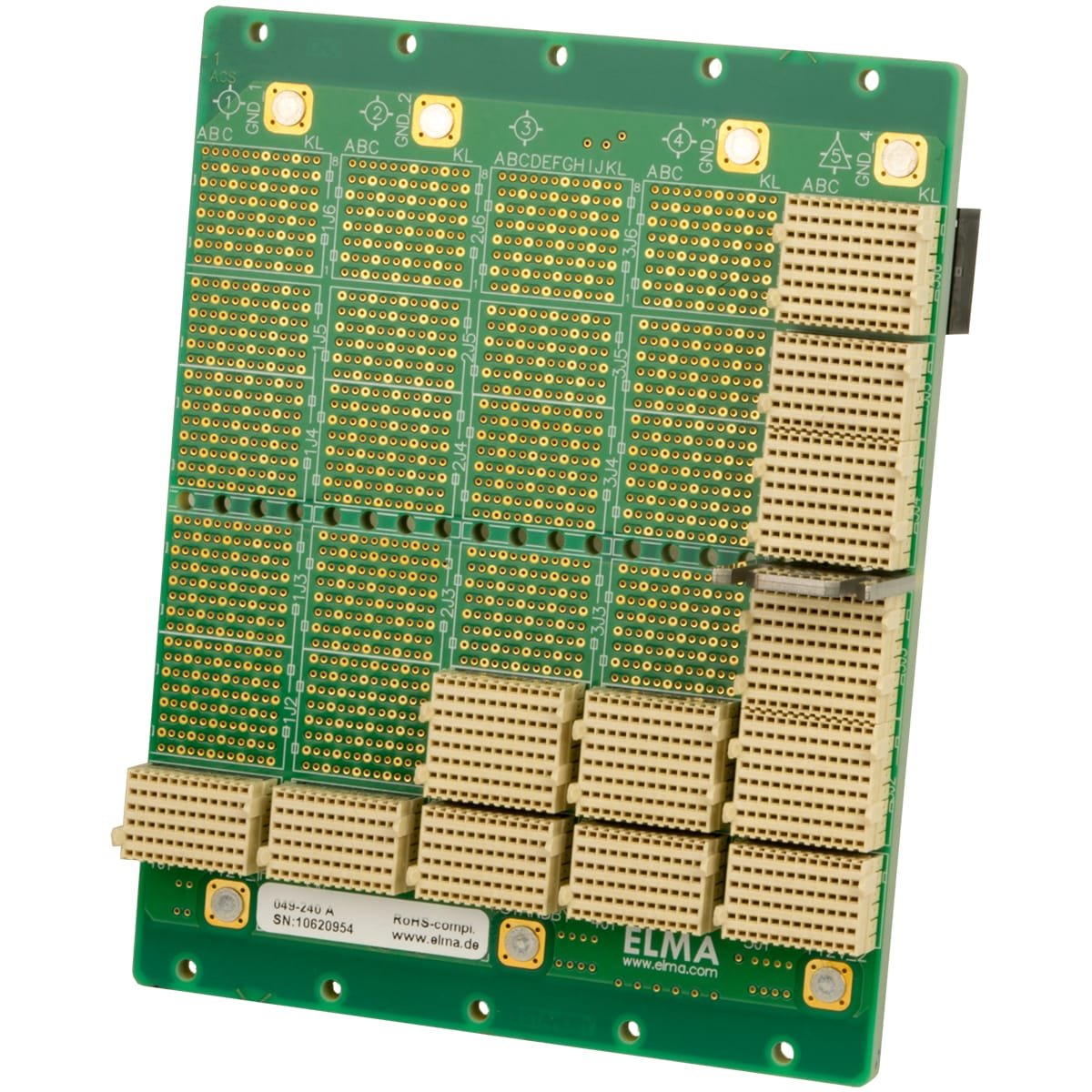

x3U CompactPCI Serial Backplane with 5 CPCI-S.0 slots, system slot right, with rear IO: 1x CPCI-S.0 CPU slot, 4x CPCI-S.0 peripheral slots, with connectors for RTMs in slots 2 to 5, system slot (Slot 5) has one connector for RTM -> 5RJ6 - no Ethernet
Product Features
x- CompactPCI Serial (PICMG CPCI-S.0) compliant backplane
- High-speed connectors supporting data transfer rates up to 12 Gbps in all 5 slots
- Single star topology for serial interfaces such as PCI Express, SATA, USB2 and USB3 are provided by the CPCI-S.0 system slot
- Europacard form factor in 3U height
- No Ethernet on backplane
- Designed to support Rear Transition Modules
- With RTM connectors
Product Information
xItem/Part Number1CPCIS-305-R010
Item Description3U CompactPCI Serial 5-slot SSR w/ RTM no Ethernet
ArchitectureCPCI Serial
Slots5
