Description

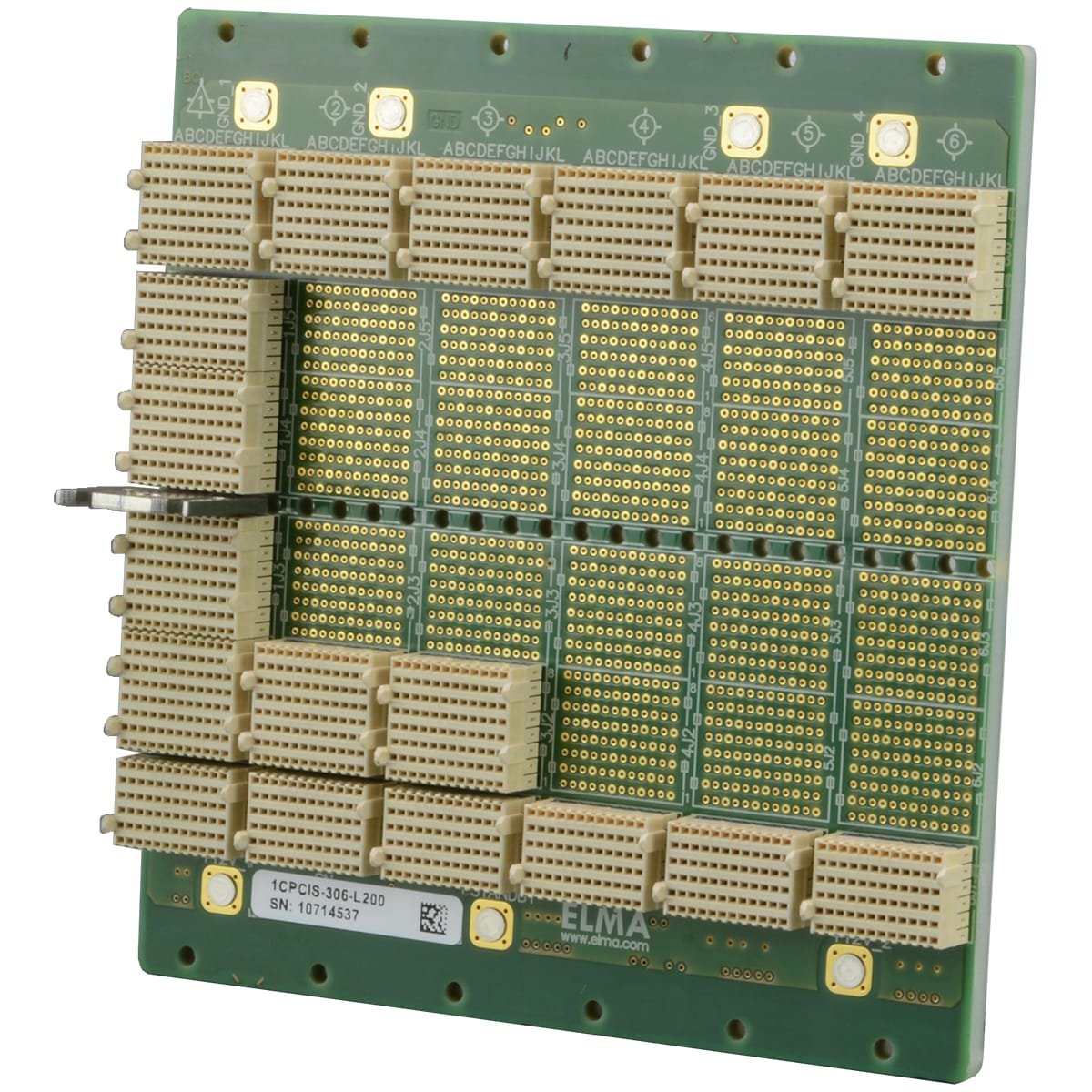

x3U CompactPCI Serial Backplane with 6 CompactPCI S.0 slots, system slot left, with rear IO : 1x CompactPCI S.0 CPU slot, 5x CompactPCI S.0 peripheral slots, with connectors for Rear Transition Modules (RTMs) in slots 2 to 6, Ethernet full mesh
Product Features
x- CompactPCI Serial (PICMG CompactPCI-S.0) compliant backplane
- High-speed connectors supporting data transfer rates up to 12Gbps in all 6 slots
- Single star topology for serial interfaces such as PCI Express, SATA, USB2 and USB3 are provided by the CPCI S.0 system slot
- Europacard form factor in 3U height
- Ethernet routed as full mesh on the backplane
- Designed to support Rear Transition Modules
- With RTM connectors
Product Information
xItem/Part Number1CPCIS-306-L210
Item Description3U CompactPCI Serial 6-slot SSL w/ RTM w/ Ethernet
ArchitectureCPCI Serial
Slots6
