Description

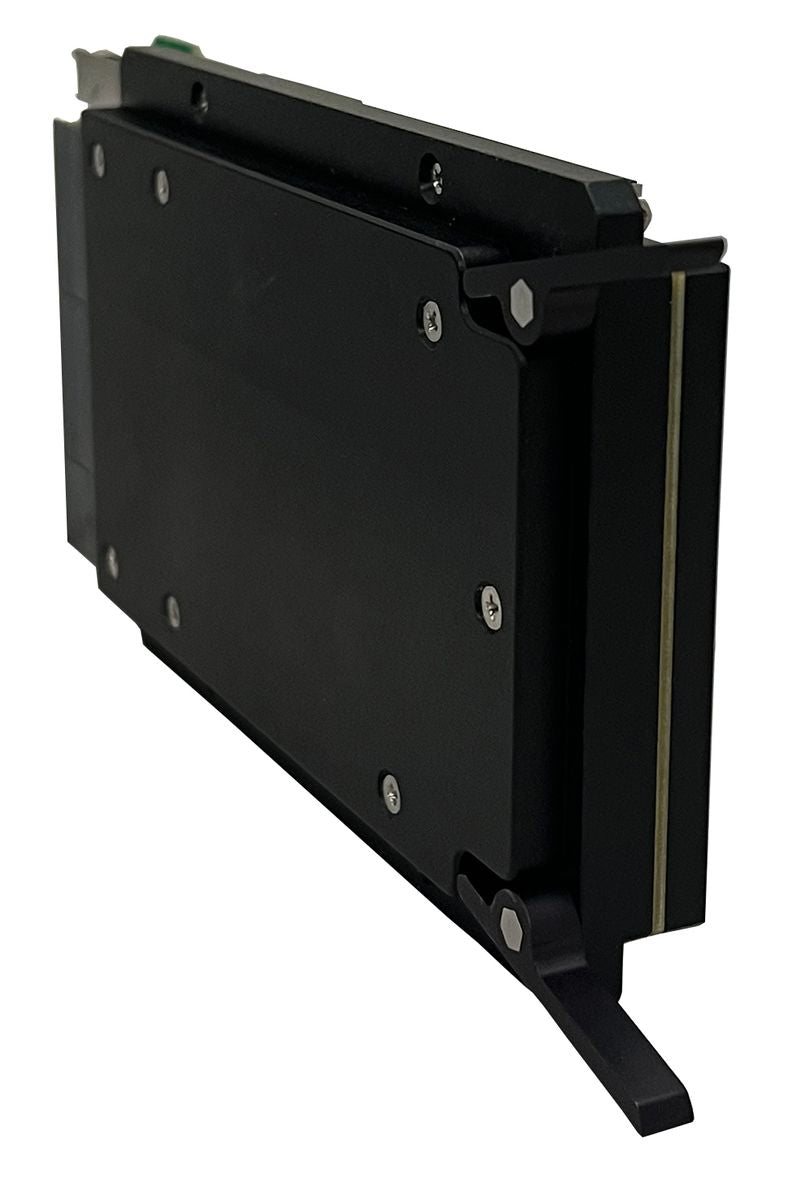

xNetKit-3110 is a 3U conduction-cooled (VITA 48.2) VPX Gigabit Ethernet router based on Cisco’s ESR6300 Embedded Series router and is designed for harsh deployed environments. NetKit-3110 provides six high-performance Gigabit Ethernet interfaces (two routed and four switched) along with Cisco’s IOS® XE Software, giving deployed applications a rugged routing engine with a separate encryption/decryption processor, and providing highly secure yet scalable video, voice, and data services.
Product Features
x- Cisco ESR6300 Embedded Series Router > ARM Quad-Core A72 CPU, 1200MHz > 4GB DDR4 memory capacity (32-bit + 4-bit ECC) > 4GB usable (pSLC mode) eMMC flash > Hardware ready to support SD-WAN
- The Cisco ESR-6300 provides 2 routed and 4 switched highspeed Gigabit Ethernet interfaces, enabling the router to serve as an aggregation point for on-demand network connectivity in mobile or fixed deployments
- SD-WAN features allow unified distributed network management to the edge
- Enterprise-grade Cisco IOS XE routing and switching security features help ensure highly secure voice, video, and data communication
- Onboard Trust Anchor module (TAm), along with image signing, Secure Boot, and runtime defenses, helps ensure that the code running on the ESR-6300 hardware platform is authentic, unmodified, and operating as intended
- The onboard hardware encryption module offloads packet encryption and decryption from the routing engine to increase router performance
- Rear transition module (NetKit-3110-RTM) available
- Throughput tiers: Three throughput licenses are available > 50-Mbps encrypted (Default license) > 250-Mbps encrypted (Performance license) > 350-Mbps encrypted (Boost license)
- Cisco IOS XE > Highly programmable software suite with open and standards-based APIs and next-generation multilayer security > IPSec, VPN, and Cisco firewall functions
- Accessories Available: > Rear transition module (RTM) for NetKit-3110 - Model# NetKit-3110-RTM > I/O Cable Kit - Model# NetSys-5310-CBL
Product Information
xItem/Part NumberNetKit-3110
Item Description3U OpenVPX rugged Gigabit Ethernet Cisco ESR6300 based router
ArchitectureVPX/OpenVPX
