Description

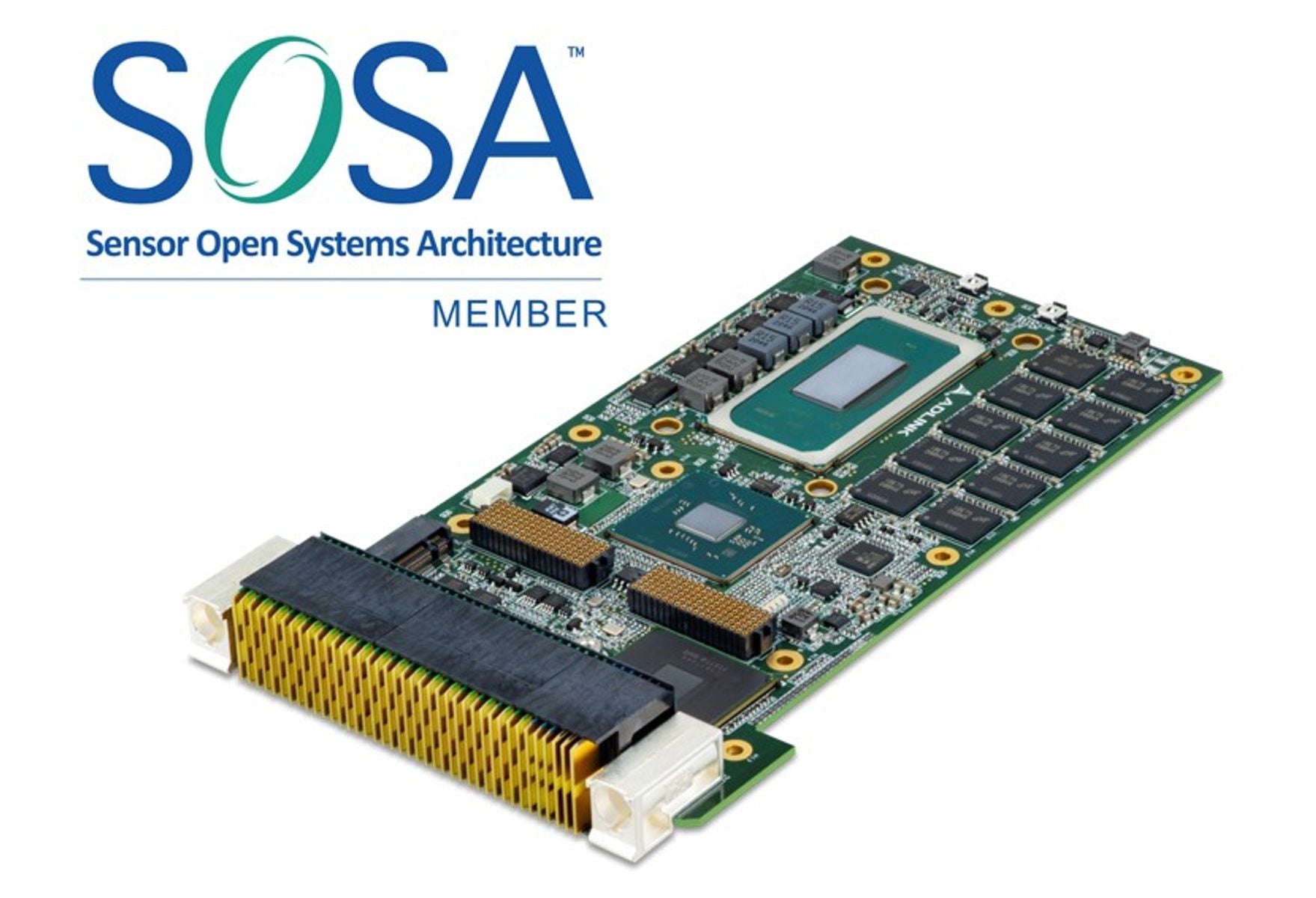

xThe VPX3-TL 3U VPX processor blade is powered by Intel® Xeon® W-11865MRE Series Processor, formerly Tiger Lake-H and delivers a greater than generational improvement in performance for enhanced data and graphics and the AI acceleration capabilities required for next-generation mission-critical applications. The SOSA-aligned design of the VPX3-TL module offers embedded computing capabilities that are easily reconfigurable and upgradable, highly cost-effective, and quick to develop and deploy. The ADLINK VPX3-TL Series is SWaP-optimized and includes up to 64GB DDR4-2666 soldered ECC SDRAM; 2x 10GBASE-KR or 2x 1GBASE-KX; one XMC expansion slot with PCIe x8 Gen3 to P2 rear I/O; USB 3.0 and SATA III, (formerly known as SATA 6Gb/s), for high I/O throughput. Options include up to 1TB M.2 SSD for secondary storage. The Intel® RM590E chipset with Unified Extensible Firmware Interface (UEFI) secure boot and dual 256Mbit SPI flash supports Microsoft Windows 10, Linux and VxWorks 7.
Product Features
x- Intel® Xeon® W-11865MRE processor (formerly Tiger Lake-H); up to 8 cores with 45 watt TDP
- Aligned to SOSA and VITA 46/47/48/65 compliant for quick deployment
- 32GB DDR4-2666 soldered ECC SDRAM (roadmap to 64GB)
- Supports NVMe and SATA SSD by BOM option, up to 1TB
- One XMC expansion slot with PCIe x8 Gen3 (according to product SKU)
- Ethernet connectivity: 1x 2.5GBASE-T to P2; 2x 10GBASE-KR to P1; optional 2x 1GBASE-KX to P1
- 1x DisplayPort to P2, supports DP++ with resolution up to 8K/60Hz
- Conformally coated versions available
Product Information
xItem/Part Number20040262
Item Description3U VPX Rugged Processor Card, VPX3-TL Series, SOSA aligned
ArchitectureVPX/OpenVPX and SOSA
Datasheets and Media
xDatasheet:
