Description

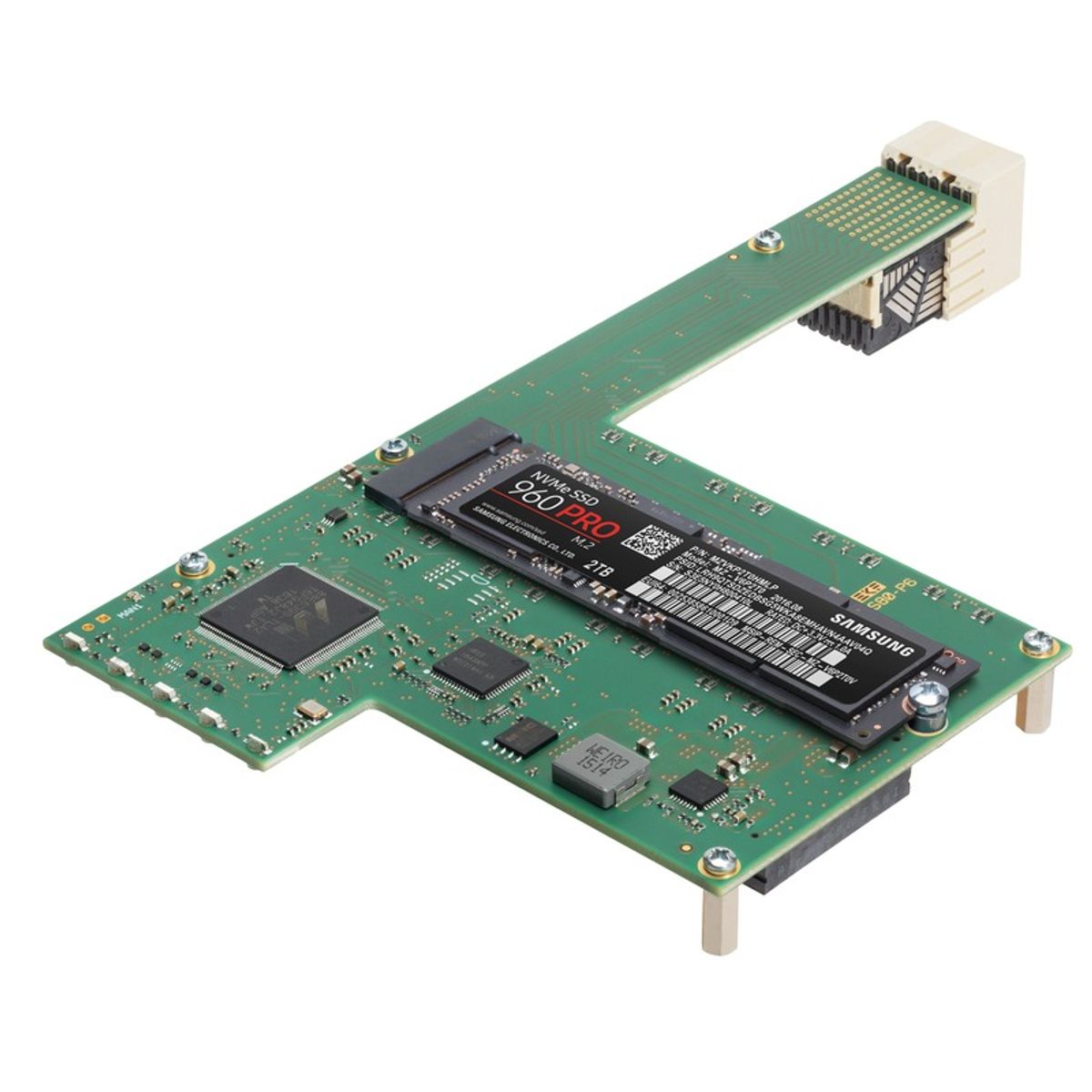

xThe S82-P6 is equipped with an M.2 PCIe x4 socket, suitable for a high speed NVMe type SSD module, with a maximum capacity of 2TB as of current, sufficient for installation of an operating system and also data storage.
Product Features
x- Available as a mezzanine add-on expansion board e.g. to the SC4-CONCERTO and successor CPU carrier cards, the S82-P6 provides a Solid State Drive mass storage solution, and in addition to supply the backplane with four Gigabit Ethernet ports.
- Four discrete Gigabit Ethernet controllers (aka NIC) are provided on-board, for CompactPCI® Serial backplane communication via the P6 connector according to the 1000BASE-T interface standard.
- The Intel® I210-IT Gigabit Ethernet controllers support latest networking features such as Audio Video Bridging (AVB) and Time Sensitive Networking (TSN).
- With a suitable Ethernet enabled CompactPCI® Serial backplane, both networking architectures are supported, either single star for reasonable backplane cost, or full mesh for optimum system flexibility.
- The S82-P6 connects to the mezzanine expansion connectors HSE1 and HSE2 of the CompactPCI® Serial CPU carrier board, maintaining the 4HP (20.32mm) total assembly height.
- The S82-P6 is equipped with four independent Intel® I210-IT Gigabit Ethernet networking controllers. The NICs incorporates 1000BASE-T Gigabit Ethernet transceivers, wired across magnetics modules to the CompactPCI® Serial backplane connector P6.
- The networking controllers communicate with the CPU carrier card via PCI Express® links, passed through the mezzanine interface connector HSE2.
- A CPU carrier card assembly with the S82-P6 mezzanine typically would be inserted into the system slot of a CompactPCI® Serial backplane, suitable for either star architecture networking, or full mesh backplane Ethernet.
- Both structures allow backplane multiprocessing and other Ethernet bound communication over P6/J6 between CompactPCI® Serial boards. The I210-IT networking controllers are suitable for Time-Sensitive Applications (TSN).
- Proprietary size mezzanine module. Fits basically into the 4HP (20.3mm) envelope of the CPU carrier board. Typically delivered as a ready to use assembly unit (including CPU card) Mounting position right (on top of a CPU board.
Product Information
xItem/Part NumberS82-P6
Item Description4 x GB ETH NIC
ArchitectureCPCI Serial
