Product Features
x- Dimensions according to IEEE
- Elegant design
- Scratch resistant vinyl clad aluminum covers
- Sturdy carrying handle
- Fully compliant 160mm & 80mm card guides with keying and ESD clip
- Advanced EMC shielding
- Aluminum sides, extrusions and covers
- Rugged for industrial use
- Designed to meet UL, CE and FCC requirements
- Engineered for superior cooling the Type 32V is available with front to rear airflow. Standard heights are 63HP and 84HP (HP=.2”) and widths 3U, 4U and 6U. The Type 32V accepts 6U cards mounted vertically.
Product Information
xItem/Part Number32V05OP146N3VGBX

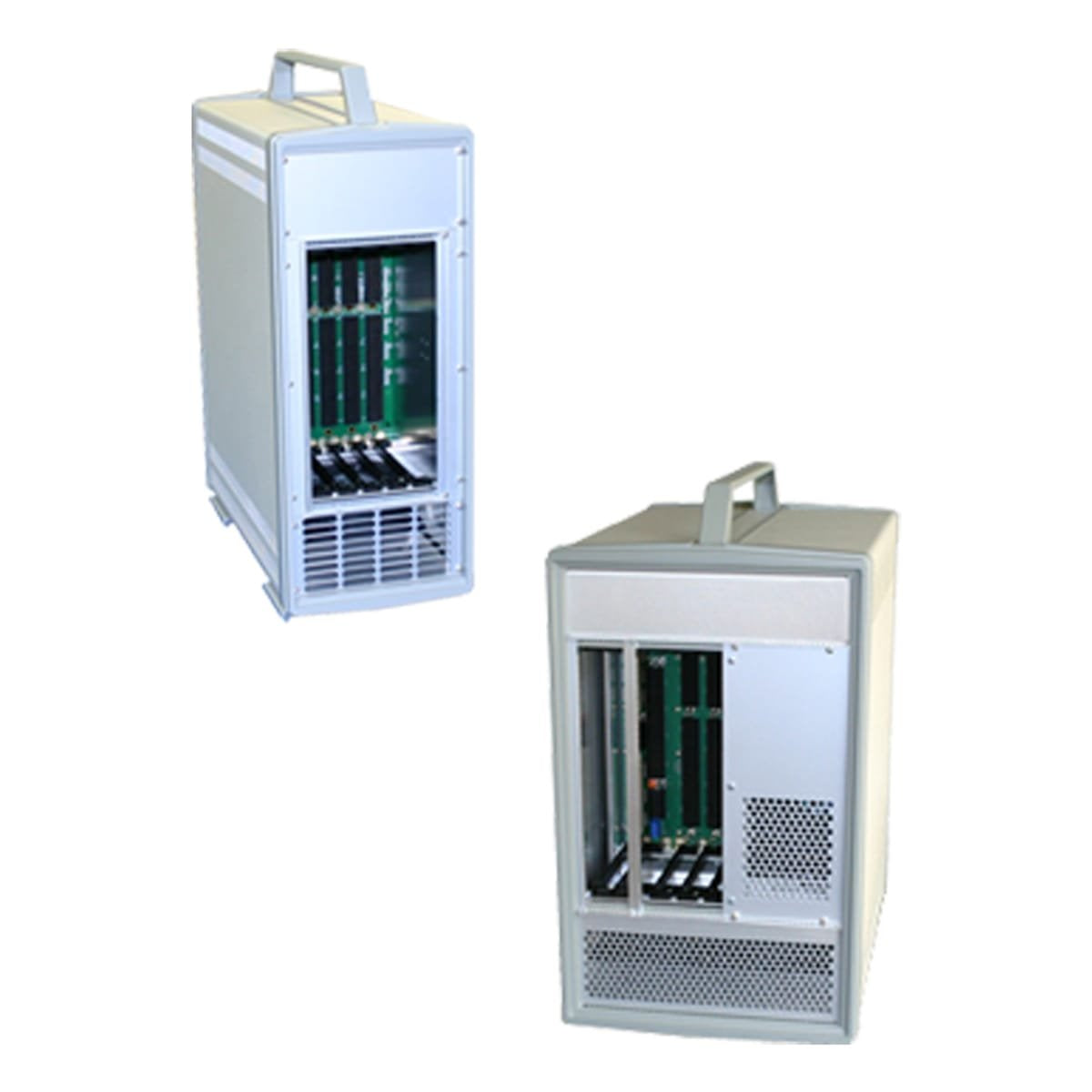

Item Description5 Slot VME64x Portable Tower Development Platform; Type 32 Tower Chassis
ArchitectureVME/VME64x and VPX/OpenVPX
Datasheets and Media
xTechnical Information
xCooling: Air-Cooled
Depth: 12 in.
Express unit: Yes
Height: 4 U
Material: 200
Media links: https://s3-us-west-2.amazonaws.com/catsy.655/catalog-32V05OP146N3VGBX.pdf
https://s3-us-west-2.amazonaws.com/catsy.655/Elma-Electronic-Express-System-List-VME64x-and-VME+en.pdf
https://s3-us-west-2.amazonaws.com/catsy.655/OrderingKey.pdf
https://s3-us-west-2.amazonaws.com/catsy.655/Elma-Electronic-Express-System-List-VME64x-and-VME+en.pdf
https://s3-us-west-2.amazonaws.com/catsy.655/OrderingKey.pdf
Power w: 200
Product number: 32V05OP146N3VGBX
Region: ["US-EN","EU-EN","AS-EN","AS-CN"]
Width: 63 HP
