Description
xThe Type 39C is an advanced generation of CompactPCI chassis for PICMG 2.0, 2.16, 2.17, and EXP.0 applications. IEEE 1101.10/11, 6U x 160mm CPCI cards from the front and 6U x 80mm I/O cards from the rear.
Configure Your Solution
Product Features
x- Dimensions according to IEEE 1101.10/.11
- Hot-dip galvanized steel - not for E-Frame)
- Elegant design, black powder coat finish
- Rackmount, tower or desktop options
- Fully compliant 160mm and 80mm card guides with keying and ESD clip
- Advanced EMC shielding
- Rugged for industrial use
- Designed to meet UL, CE and FCC requirements
- Standard 2, 3, 4, 5, 6 and 8 slot backplanes can be mounted. Fix mount or plug-in power supplies are standard options. A primary consideration was EMC compliance. The platforms meet the strict requirements of CE, FCC Class A and NEBS.
Product Information
xItem/Part Number39C06AD648Y4HCCX

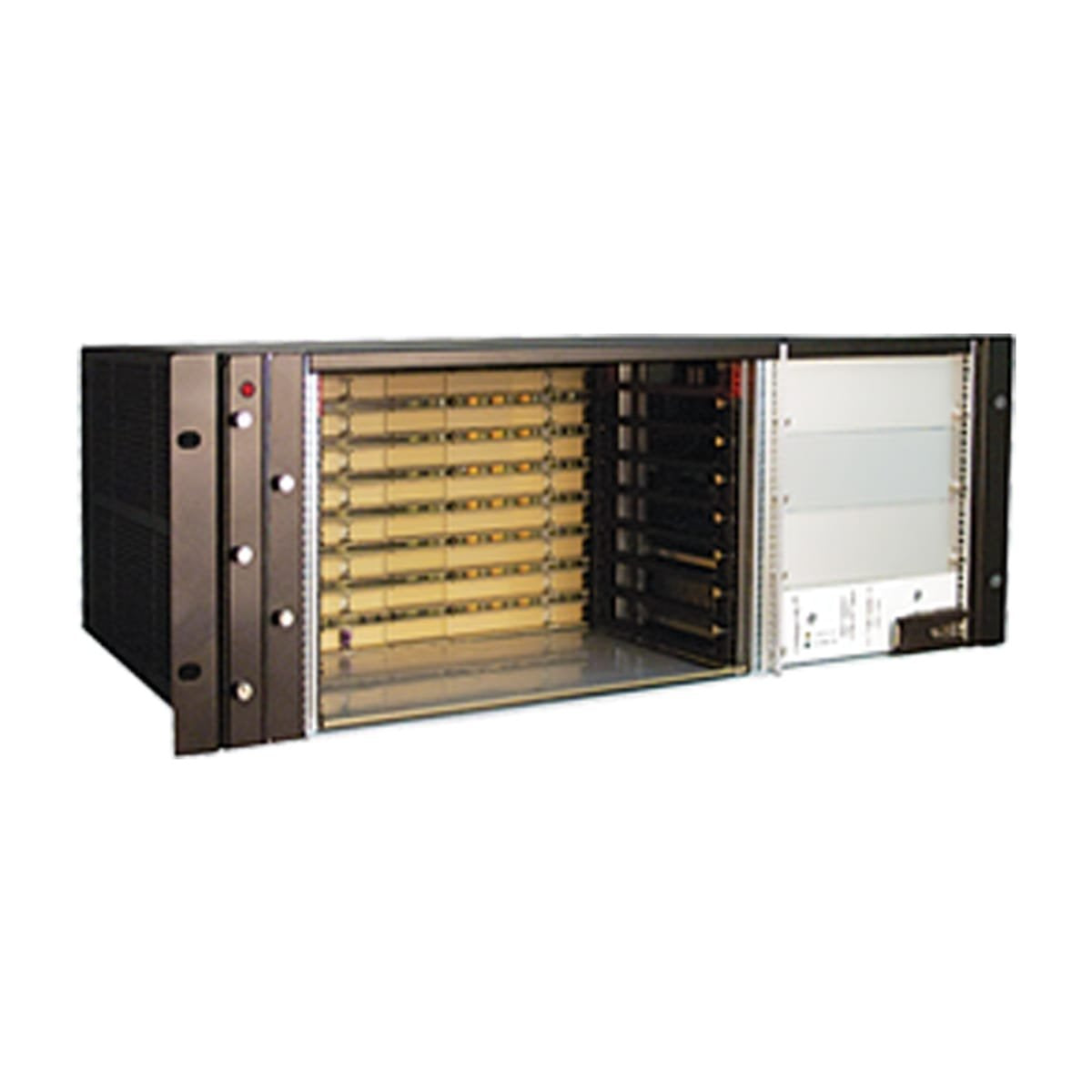

Item Description6 Slot 4U CompactPCI 19" Rackmount Development Platform; Type 39 19" Rackmount Chassis
ArchitectureCPCI
Slots6
