Description

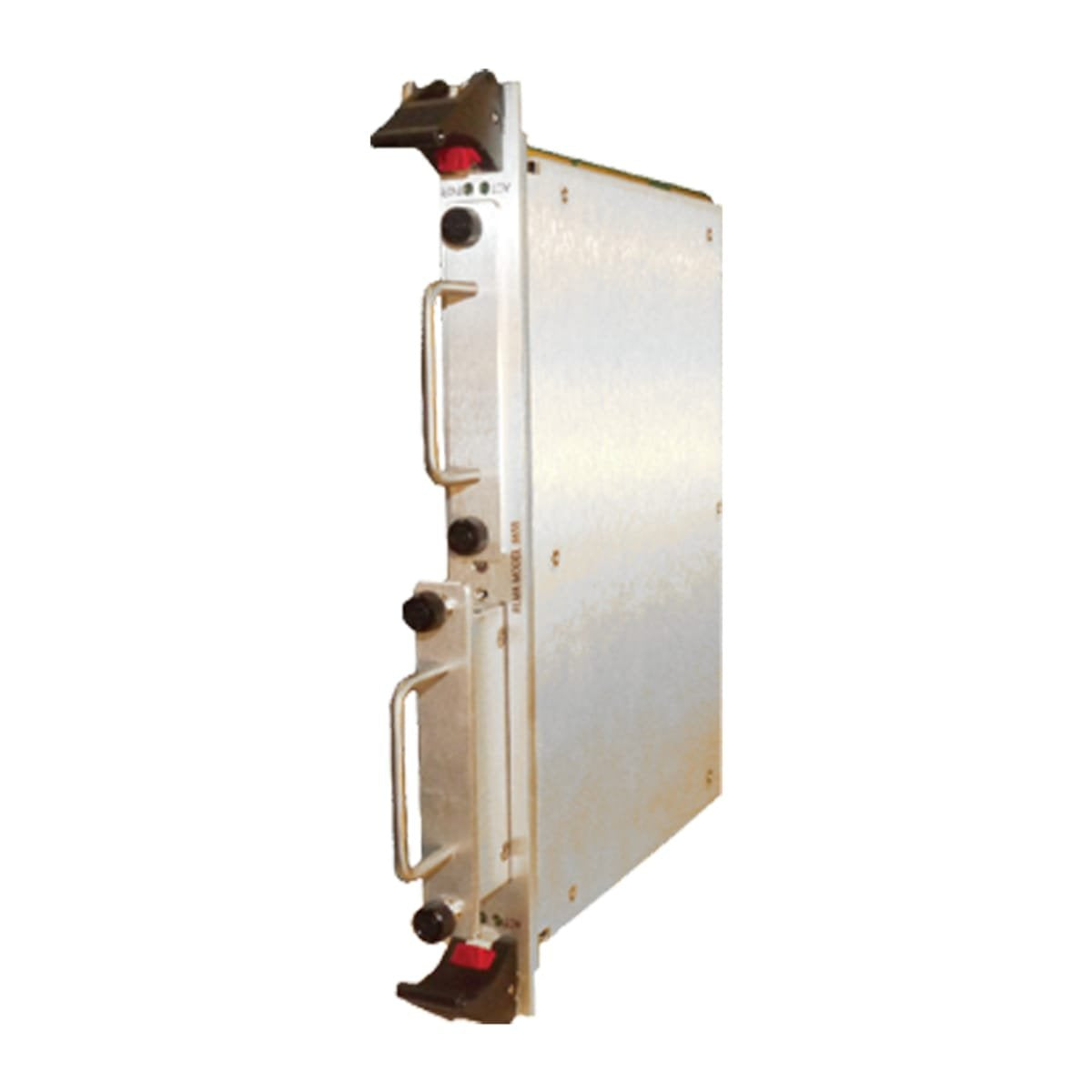

xThe 5655 is a 6U OpenVPX SATA storage module with dual front removable storage drives. It is designed to provide SATA I/O access for dual 2.5” drives via OpenVPX backplane data plane connections.
Product Features
x- Dual front removable drive bays
- Choose the latest solid state drive technology for your application
- 6Gbps data rates are supported (external controller dependent)
- Standard 6U x 5HP x 160mm OpenVPX form factor
- Drive activity LEDs media dependent
- Extended temperature operation from -40°C to +75°C
- Individual drive shuttles are hot-pluggable
- VITA 48.1 REDI primary and secondary covers
- Optional rear transition module
- Each single drive can be removed independently for easy system upgrade, data transport or drive replacement. The 5655 may be utilized singularly or integrated as part of a multi-slot storage array using an external SATA RAID controller.
Product Information
xItem/Part Number5655
Item Description6U OpenVPX Front Removable Storage Module, 5655
ArchitectureVPX/OpenVPX
Datasheets and Media
xDatasheet:
