Description

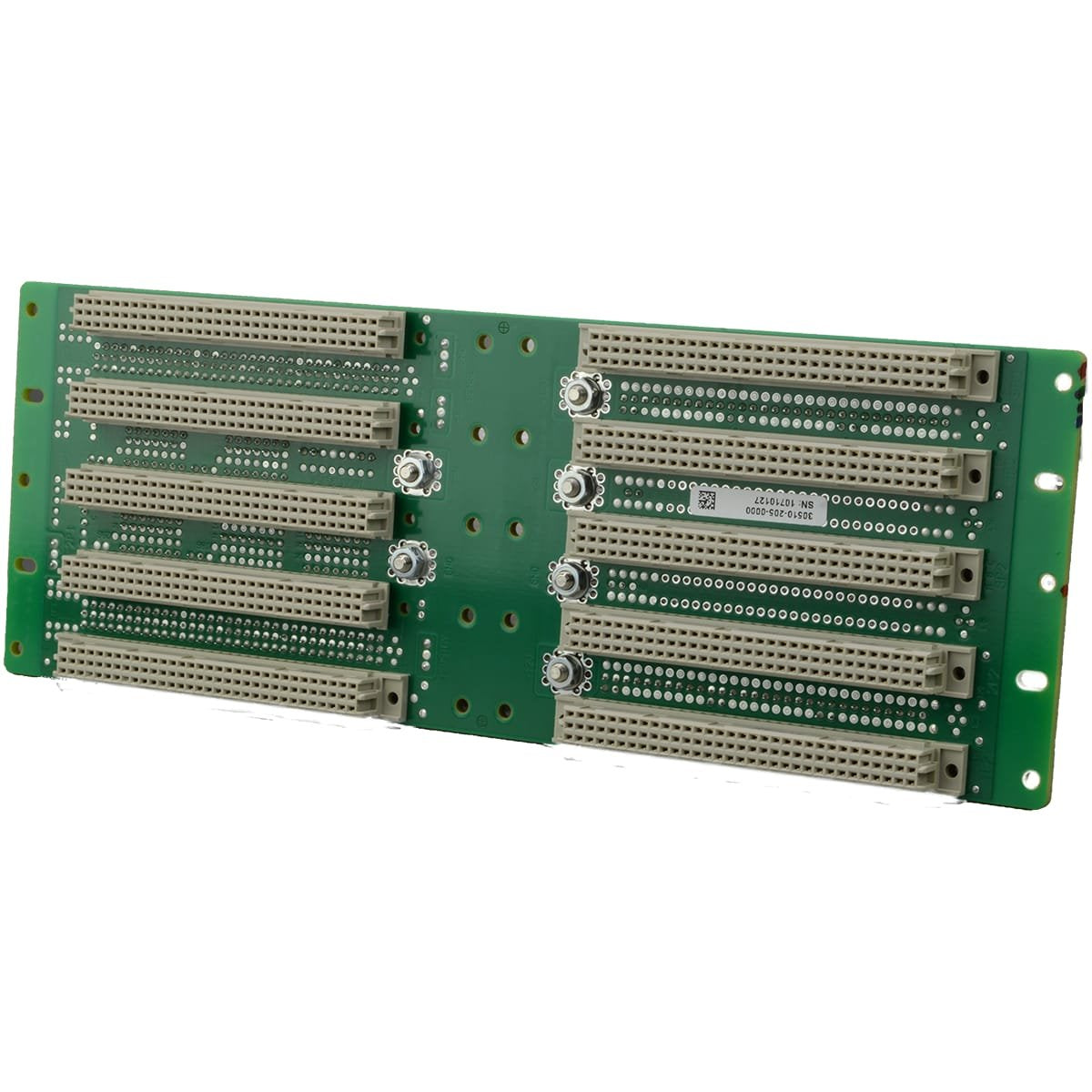

x6U VMEbus monolithic backplane 5-slot, VITA, termination passive inboard, daisy chain automatic active, power connection 70A power bolts, I/O pins 13mm gold-plated, shroud (1P1, nJ2) without latches
Product Features
x- Various daisy-chain solutions
- Configured for „high-power“ applications (different solutions)
- 8-layer construction
- Optimum separation of signal lines on inner layers
- Characteristic impedance 55 Ohm +/–10 %
- Inboard termination (active/passive)
- Minimum GND-Shift due to low inductance current distribution with high surface capacity
- Effective decoupling to enhance dynamic current response
- Optional latchable shrouds with ejectors with interlock facility to hold I/O plug securely
Product Information
xItem/Part Number30510-205-0000
Item Description6U VME Monolithic Classic 5-slot with 70A power bolts
ArchitectureVME/VME64x
Slots5
