Product Features
x- 49HP Development E frame
- 3U 9-slot CompactPCI Serial backplane - Left system slot, 1 X cPCI S.0 CPU slot, 8x cPCI S.0 peripheral slots. Ethernet routed as Full Mesh
- Low cost 300W ATX power supply for backplane
- Dedicated 75W power supply for fan power
- Removable fan tray with dual 140 CFM fans in front
- 3x 55 CFM fans in rear for RTM
- Fan speed control
- 12V LED indicator and test point
- On/Off and reset switch

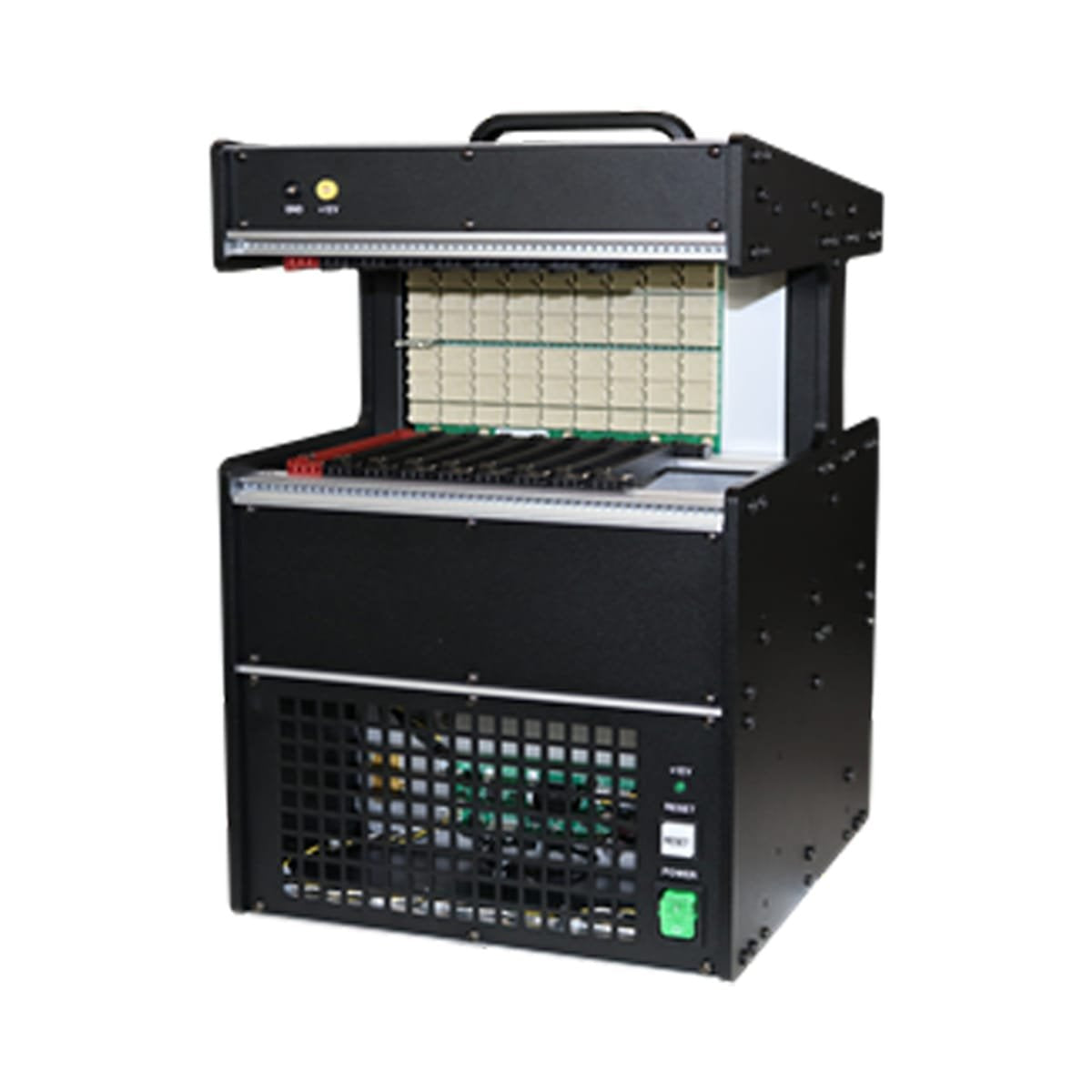

- Housed in our Type 39 E-Frame, the chassis enables desktop lab development and provides open access for probing and debugging cards during integration testing and application development. Including a 9 slot backplane and an ample 300W power supply
Product Information
xItem/Part Number39E09ZZX94Y3VC2X
Item Description9-Slot, 3U cPCI Serial E-Frame
ArchitectureCPCI Serial
Slots9
Datasheets and Media
xDatasheet:
Technical Information
xCooling: Air-Cooled
Environment: Industrial Temperature and Industrial shock & vibration
Height: 3 U
Input voltage type: AC
Media links: https://s3-us-west-2.amazonaws.com/catsy.655/datasheet-39E09ZZX94Y3VC2X.pdf
https://elma-2.wistia.com/medias/wrr4sa06yj
https://elma-2.wistia.com/medias/wrr4sa06yj
Power w: 300
Product number: 39E09ZZX94Y3VC2X
Region: ["US-EN","EU-EN","AS-EN","AS-CN"]
Video 1: https://elma-2.wistia.com/medias/wrr4sa06yj
Width: 49 HP
