Description

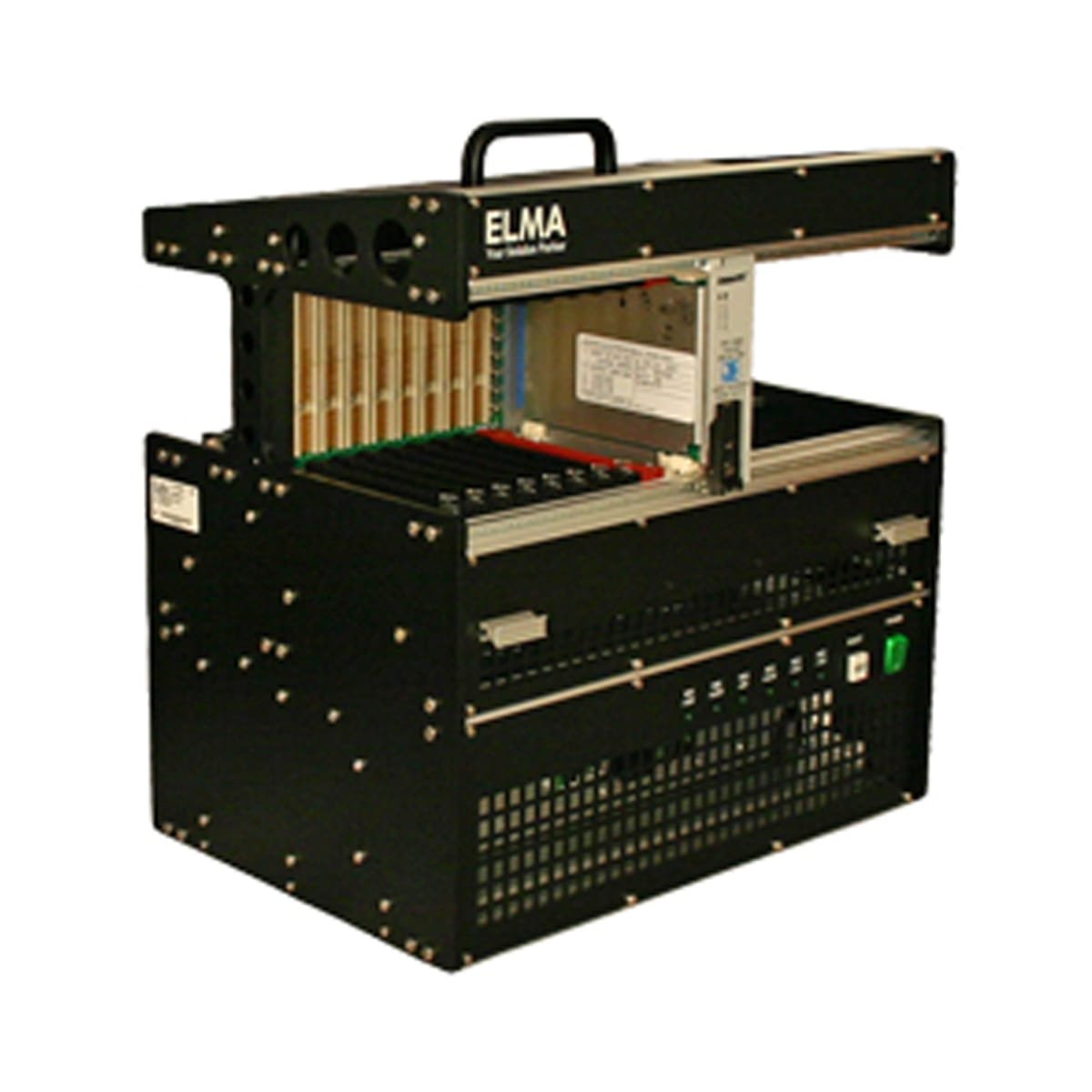

xThe Type 39 E-Frame (Short), test platform supports 3U, CPCI development. With a rugged aluminum construction, the 39 E-Frame is 9U overall to hold 3U cards. Available in compact (49HP) and full (84HP) widths for mounting 2-21 slots at .8" pitch.
Configure Your Solution
Product Features
x- Half and Full width versions (84HP or 49HP)
- Holds 3U x 160mm cards from front
- RTM mounting (rear transition module)
- Architectures include 3U CPCI
- Rear AC power input module with GND stud
- System monitoring with RS232 interface (optional)
- High performance cooling via front and rear mount fan trays
- Durable, black powder coat finish. Top handle for easy portability
- Front accessible test points and monitoring LEDs for: 3.3V, ± 5V, ±12V, ± 24V & ± 48V
- Fixed and plug mount PSU options: 90-230VAC, 24VDC, 48VDC. Front accessible test points and monitoring LEDs for| +3.3V, +/-5V, +/-12V, +/- 24V, and +/- 48VDC. The 39 E-Frame features high performance 150cfm, fans under the card cage.
Product Information
xItem/Part Number39E-CPCI
Item Description9U CompactPCI, Type 39 E-Frame, Test Platform
ArchitectureCPCI and CPCI Serial
