Description

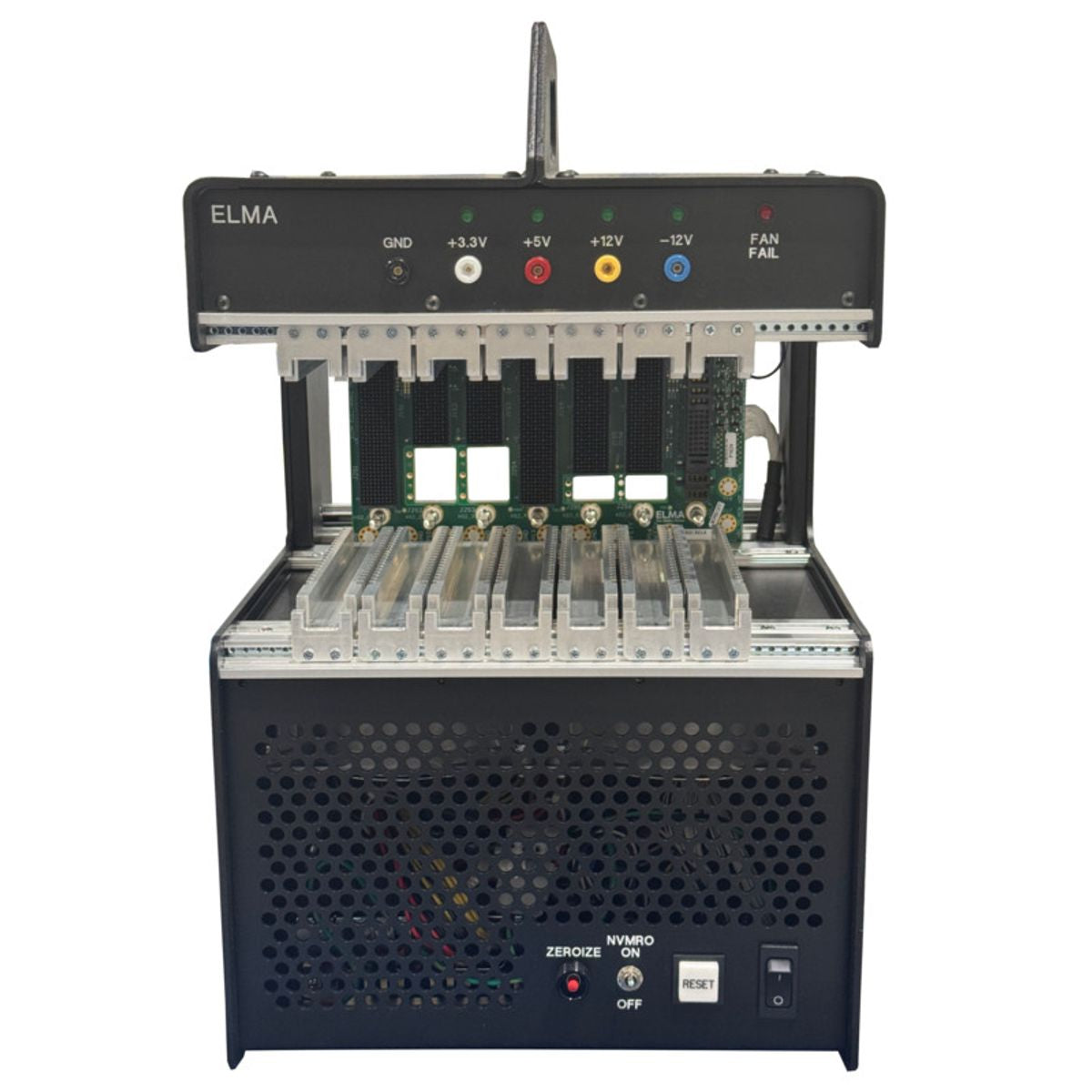

xAccelerate battlefield AI development with Elma's 7-slot CompacFrame chassis. It features six 3U slots aligned to SOSA, with meshed GPU connectivity and SBC-to-GPU coupling for testing tactical edge applications from concept to field-ready solutions.
Product Features
x- GPU Optimized 7-slot backplane in CompacFrame. Ideal for compute intensive C5ISR, EO/IR or SIGINT applications utilizing AI/ML or traditional DSP algorithms.
- 6+1 Slot Backplane: 6 x SOSA aligned Slots, 1 x VITA 62 Power Supply slot
- Backplane supports dual domain Ethernet switch 1/10/25Gbps (1000BASE-KX, 10GBASE-KR, 40GBASE-KR4, 25GBASE-KR, 100GBASE-KR4)
- 16x PCIe connection on expansion plane with GPU; between slots 5 and 6
- The backplane supports with meshed GPU connectivity with SBC-to-GPU coupling through the backplane in two SBC/GPU pairs
- Routed expansion plane links support PCIe Gen 4 data rates
- Full SOSA aligned V46.11 chassis manager, accessible from a connector on the rear of the chassis
- Maintenance port aggregator to/from all slots. Accessible via USB rear chassis port
- Accommodates air cooled and conduction cooled payload boards
Product Information
xItem/Part Number39S06NWX94Y3VCC0-6AUP
Item DescriptionAI Optimized 3U VPX Development Platform for GPUs Aligned to SOSA
ArchitectureVPX/OpenVPX and SOSA
