Description

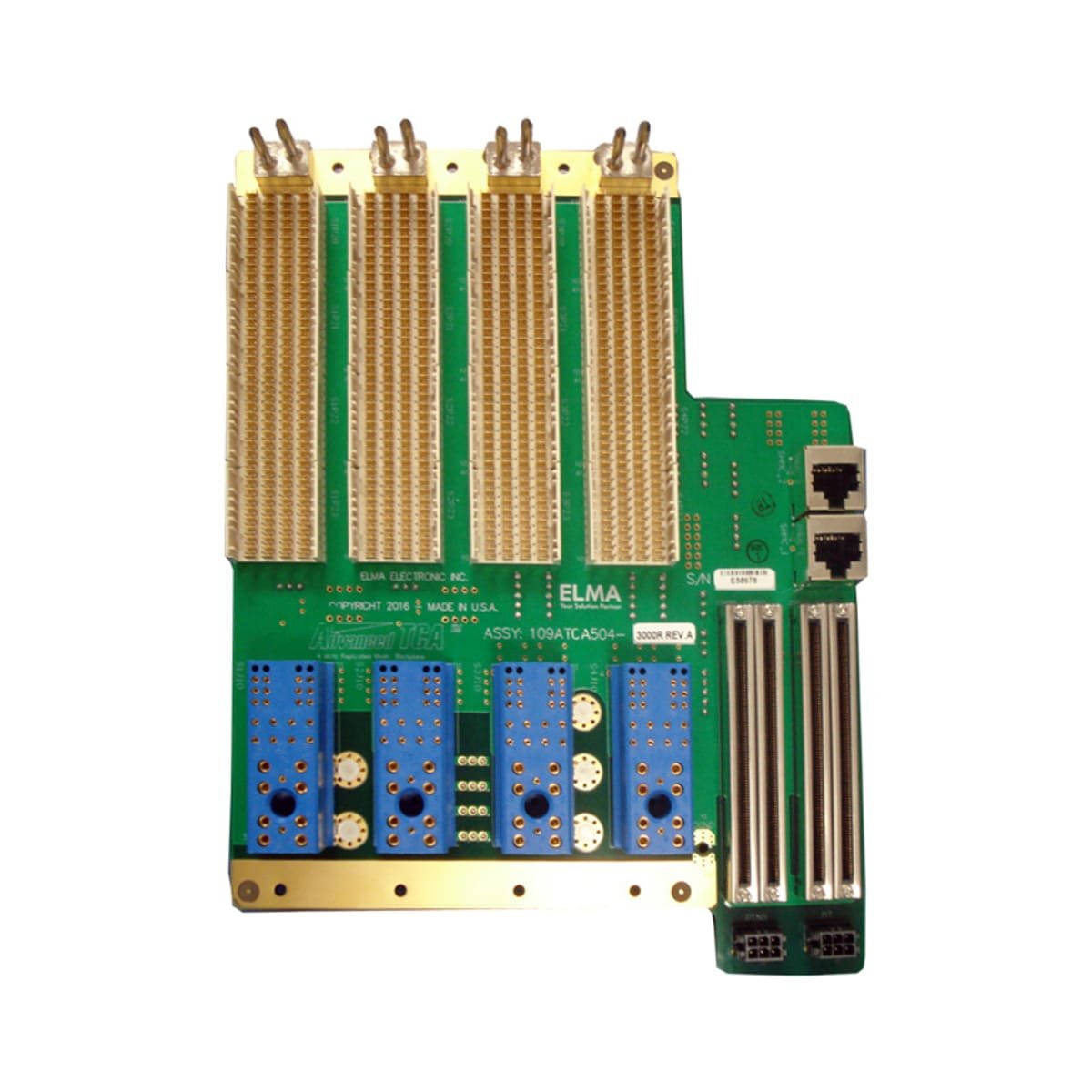

xThe 5U 4 slot ATCA backplane is a replicated Mesh with dual shelf managers. Elma Bustronic’s ATCA backplanes have been simulated and characterized by our signal integrity lab to optimize performance.
Product Features
x- Compliant to PICMG 3.0 Rev 3.0 specification
- Gigabyte/Terabyte per second bandwidth per shelf
- Connections to IPM Sentry shelf manager
- Controlled impedance stripline design
- Mesh Topology (dual star and 1X, 2X, 3X Mesh topologies are implementable)
- Pluggable shelf manager slots using MicroTCA.0 connectors (applies to part# 109ATCA505-9020R only)
Product Information
xItem/Part Number109ATCA504-3000R
Item DescriptionATCA 5U 4 Slot replicated Mesh - dual shelf managers
ArchitectureATCA
Slots4
