Description

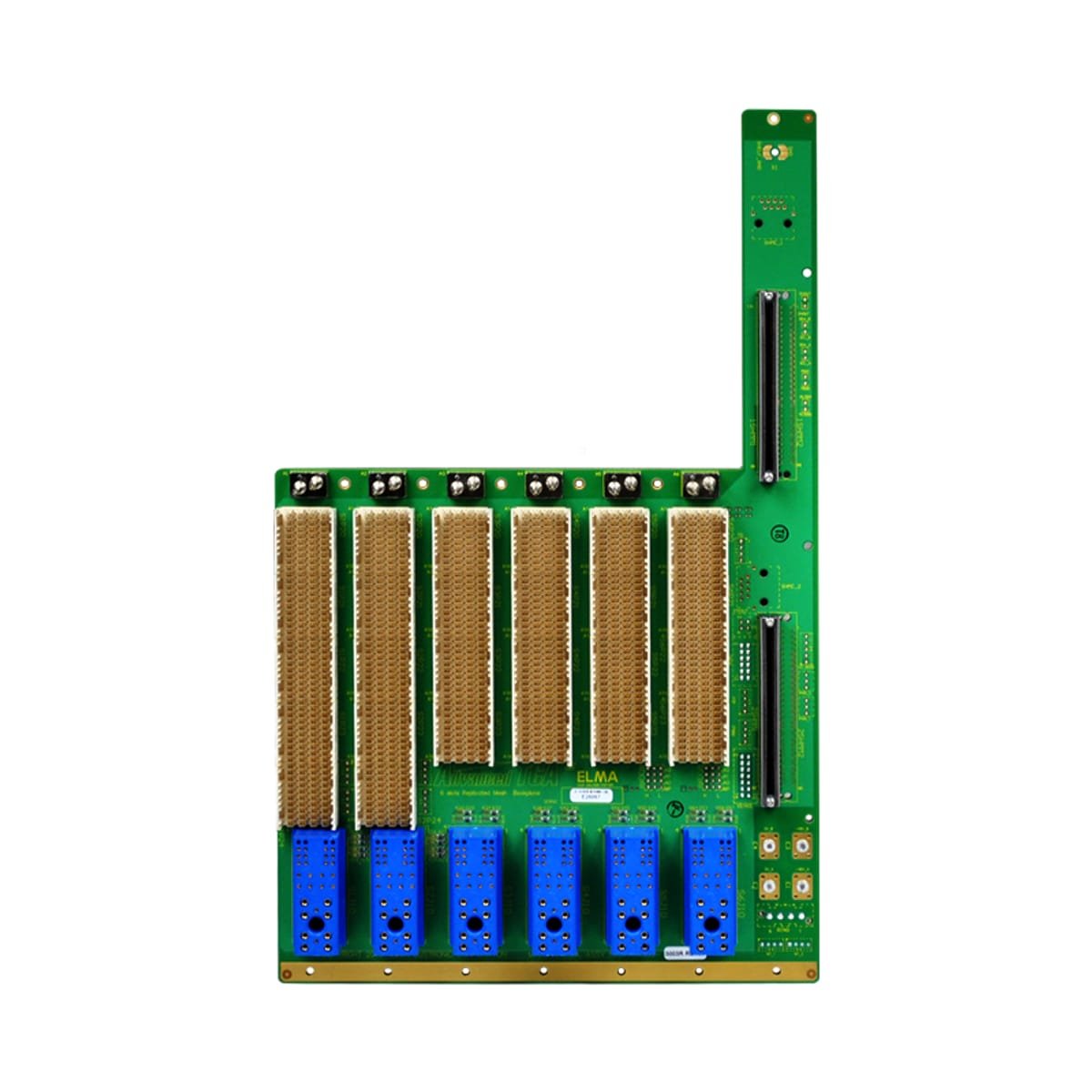

xThe 5U 6 slot ATCA backplane is a 6 slot replicated Mesh with bused IPMB, designed to meet 40Gbps ( 4 x 10G ports) data rates. Elma Bustronic’s ATCA backplanes have been simulated and characterized by our signal integrity lab to optimize performance.
Product Features
x- Up to 400W/slot 48VDC distribution to each slot
- Designed to meet 40Gbps ( 4 x 10G ports) data rates
- Based on design principles of IEEE 802.3-2012 (Section 5 Annex 69B.4), 10GBASE-KR, and 40GBASE-KR4
- Triple replicated mesh topology
- Nelco 4000-13EP-SI high grade laminate material
- Extensive pre-layout and post-layout simulation studies
- Backdrilled to minimize stub reflections
- Very low insertion loss deviation (ILD)
- Dual shelf managers in slot 0, radial IPMB/I2C implementation
Product Information
xItem/Part Number109ATCA506-3003R
Item DescriptionATCA 5U 6 Slot replicated Mesh 40G - with bused IPMB
ArchitectureATCA
Slots6
