Description

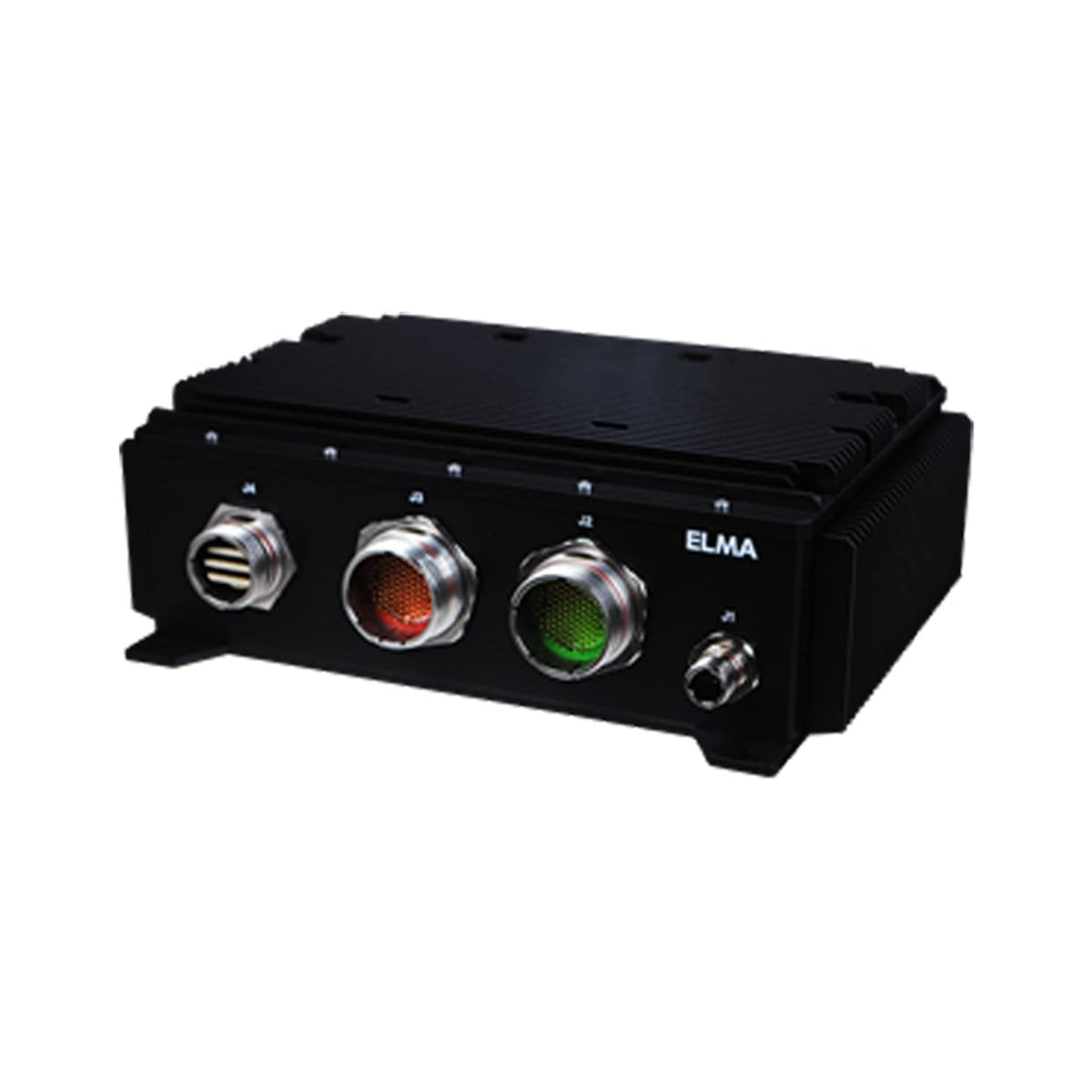

xThe ComSys-5361 is a rugged COTS mission computer. Feature-packed and power stingy, a 12W Intel Atom CPU supports signal processing for critical applications. Highly configurable, application-specific I/O. Removable drive bay for two 2.5“ SSDs.
Product Features
x- Intel Atom® E3950 quad core 12W processor with 8GB dual channel 1867/1600 MHz non-ECC DDR3L memory
- Dual 2.5“ SSD removable drive bay. Inquire about optional high insertion / extraction cycle connectors
- 4 x miniPCIe / mSATA expansion sites application specific I/O
- I/O configurations may include CANbus, MIL-1553, video, ARINC-429, RS-232/422/485, GPS, Ethernet, mSATA storage and others
- COM Express type 6 module / carrier architecture
- Lightweight aluminum, fanless, passive conduction cooling with protection including high water levels and particle ingress
- Low power operation enables use in long duration missions as part of overall power budget
- High bandwidth reliable MIL-STD-38999 and Hercules circular connectors
- MIL-STD-810G and MIL-STD-461G qualified for EMI, thermal, shock, vibration, altitude and humidity etc.
- 28 VDC MIL-1275/704 power supply with transient protection
Product Information
xItem/Part NumberComSys-5361
Item DescriptionAtom-based Rugged Mission Computer System, ComSys-5361
ArchitectureCom Express
