Description

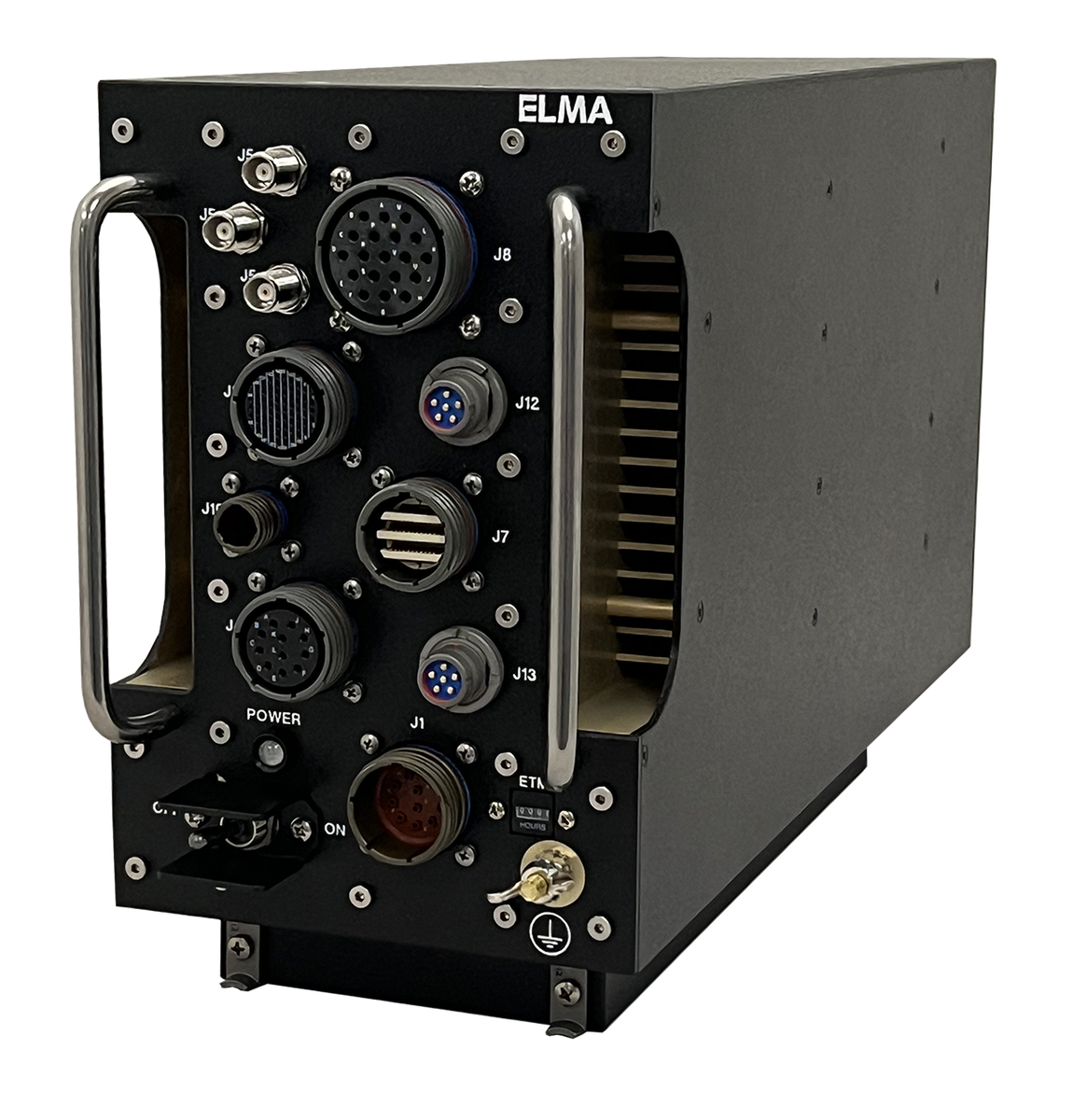

xATR-3600S is a commercial off-the-shelf half-ATR specifically designed for deployable applications requiring alignment with the SOSA Technical Standard. This chassis is mission-ready to accept SOSA aligned plug-in cards (PICs) and VITA 62 power supplies and is an ideal way to rapidly integrate a deployable platform.
Product Features
x- 1/2 ATR, conduction-convection cooled. Advanced airflow design distributes air across external fins in sidewalls

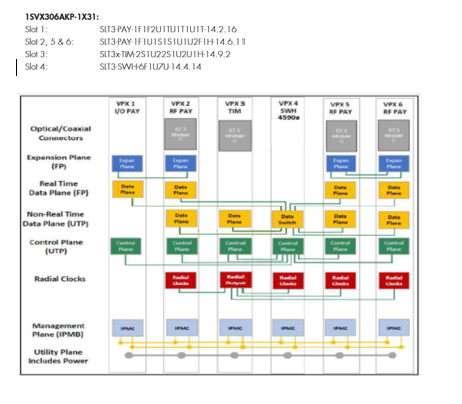

- 6-slot, 3U OpenVPX (VITA 65) SOSA aligned backplane, 1-inch pitch (1SVX306AKP-1X31)
- Backplane provides 4 payload slots, and 1 slot each for PNT and Ethernet switch. VITA 62 slot for plug-in PSU
- Integrated chassis manager, Ethernet switch, and power supply, all aligned to SOSA
- Front panel USB-based maintenance port aggregator
- Designed to meet MIL-STD-810F, MIL-STD-461E, & MIL-STD-901D. Meets ARINC 404A and ANSI/VITA 48.2
- Power supply and line filter combination optimized to meet MIL-STD-461E
- Optional half ATR tray with shock isolators available
Product Information
xItem/Part NumberATR-3600S
Item DescriptionATR-3600S - Deployable Rugged 1/2 ATR aligned to SOSA®
ArchitectureVPX/OpenVPX and SOSA
Slots6
