Description

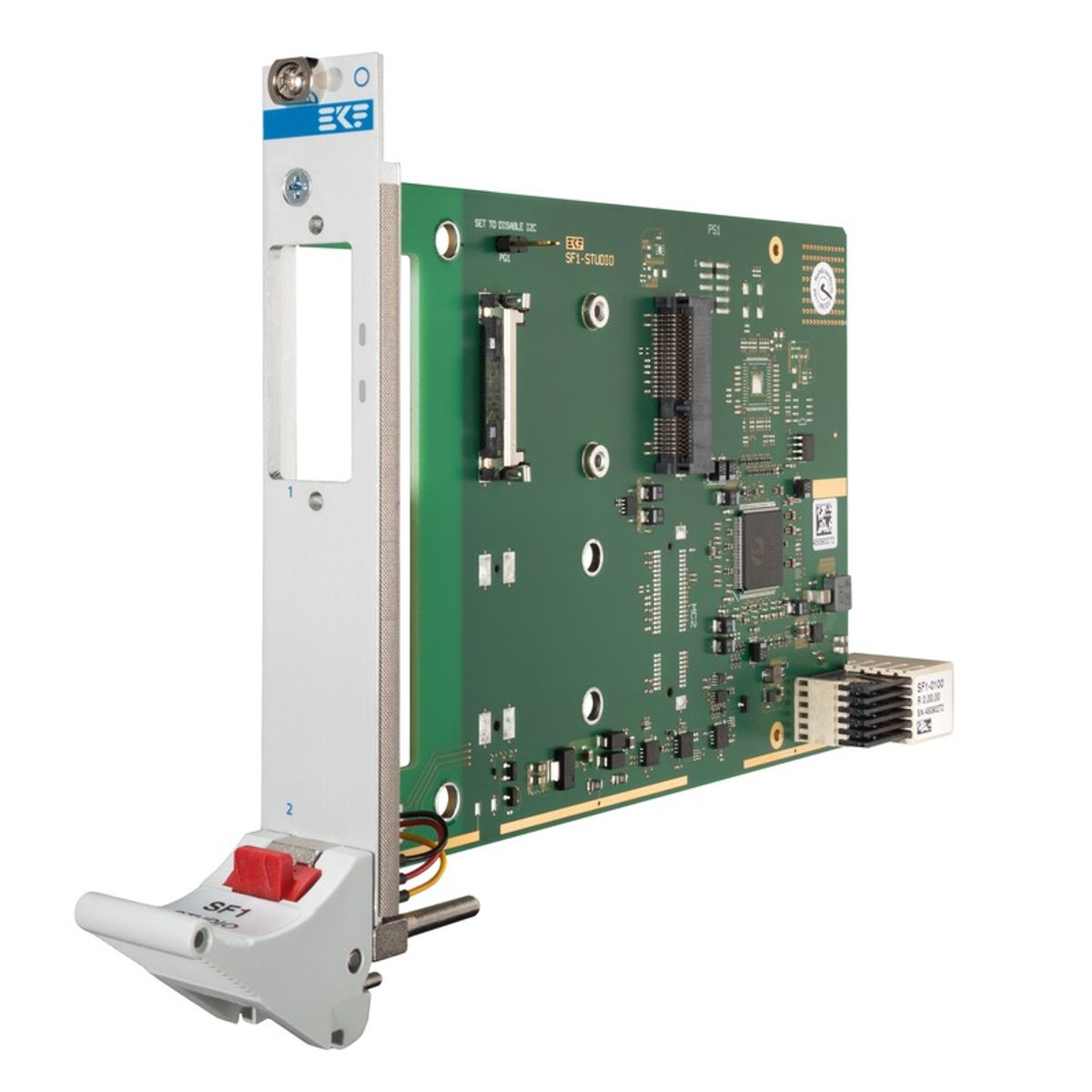

xSF1-STUDIO is optimized for Hilscher real-time Ethernet & fieldbus modules. Many popular protocols are supported. Ethernet, mezzanine modules are available for EtherCAT, EtherNet/IP, Open-Modbus/TCP, POWERLINK, PROFINET IO, Sercos, and VARAN.
Product Features
x- PICMG® CompactPCI® Serial standard (CPCI-S.0) peripheral slot card
- Single size Eurocard 3U 4HP 100x160mm
- CPCI-S backplane connector P1 (peripheral slot PCIe® x 1)
- Suitable for full- or half-mini cards either 30mm x 50.95mm or 30mm x 26.80mm
- PCI Express® Gen2 support
- PCB design with respect to additional front I/O modules (cable and connector assembly)
- Mix of any two industrial I/O mini cards with associated front I/O
- EtherCAT master/slave
- EtherNet/IP scanner/adapter
- Option XMC 2.0 Module Connector J15 (VITA 61) recommended for PCIe Gen2/Gen3
Product Information
xItem/Part NumberSF1-STUDIO
Item DescriptionCarrier Board for Hilscher Fieldbus
ArchitectureCPCI Serial
Datasheets and Media
xDatasheet:
