Description

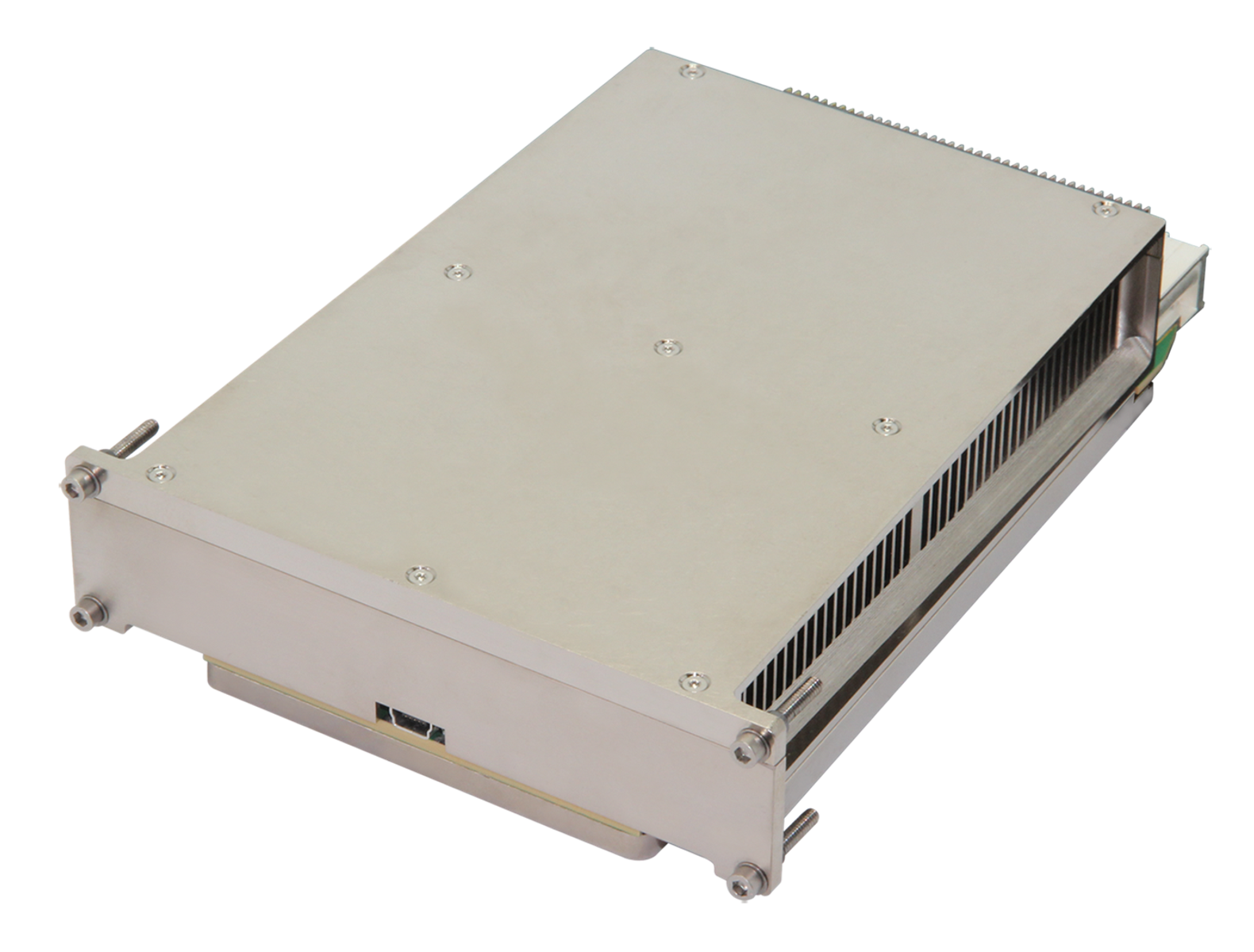

xThe Interface Concept ComEth4682e is a rugged 3U VPX Gb Ethernet switch for high-speed embedded interconnect applications requiring up to 100G. With copper or optical interfaces, they meet the latest SOSA and VITA standards. The field-proven Switchware software manages Layer 2/3 configuration.
Product Features
x- SOSA® Slot Profile: SLT3-SWH-6F1U7U-14.4.14 VITA 65.0 (VPX only) compatible: SLT3-SWH-6F8U-14.4.15
- Managed Layer 2+/3 switch with IP router
- Up to 57 ports - 24 optical ports (2 front MPO connectors)
- 1GBASE-KX, 10 & 25GBASE-KR, 40 & 100GBASE-KR4 ports (rear)
- A new generation of multi-layer Ethernet matrix for high-speed embedded interconnect applications requiring 10/25G and 40/100G connectivity
- Rear interface, a new generation of multi-layer Ethernet matrix for high-speed embedded interconnect applications requiring 10/25G and 40/100G connectivity
- Rear interface, each 4-lane Fat Pipe can also be merged in 40GBBASE-KR4 or 100GBBASE-KR4 mode
- Multiple legacy configurations support the following VITA 65.0 slot profiles: SLT3-SWH-8F-14.4.2 | SLT3-SWH-2F24U-14.4.3 | SLT3-SWH 4F-14.4.4 | SLT3-SWH 2F8U-14.4.5 | SLT3-SWH 6F8U-14.4.9 | SLT3-SWH-4F16U-14.4.13
- Front panel interfaces 12 * optical fibers on two MPO connectors, supporting 1GBBASE-SR, 10GBBASE-SR, or 25GBBASE-SR mode
- ComEth4682e build version (31 ports) that supports the SOSA® profile SLT3-SWH-4F1U76U-14.4.14
Product Information
xItem/Part NumberComEth4682e
Item DescriptionComEth4682e, 3U VPX 1/10/25/40/100 Gigabit Ethernet Switch and IP router
ArchitectureVPX/OpenVPX and SOSA
