Description

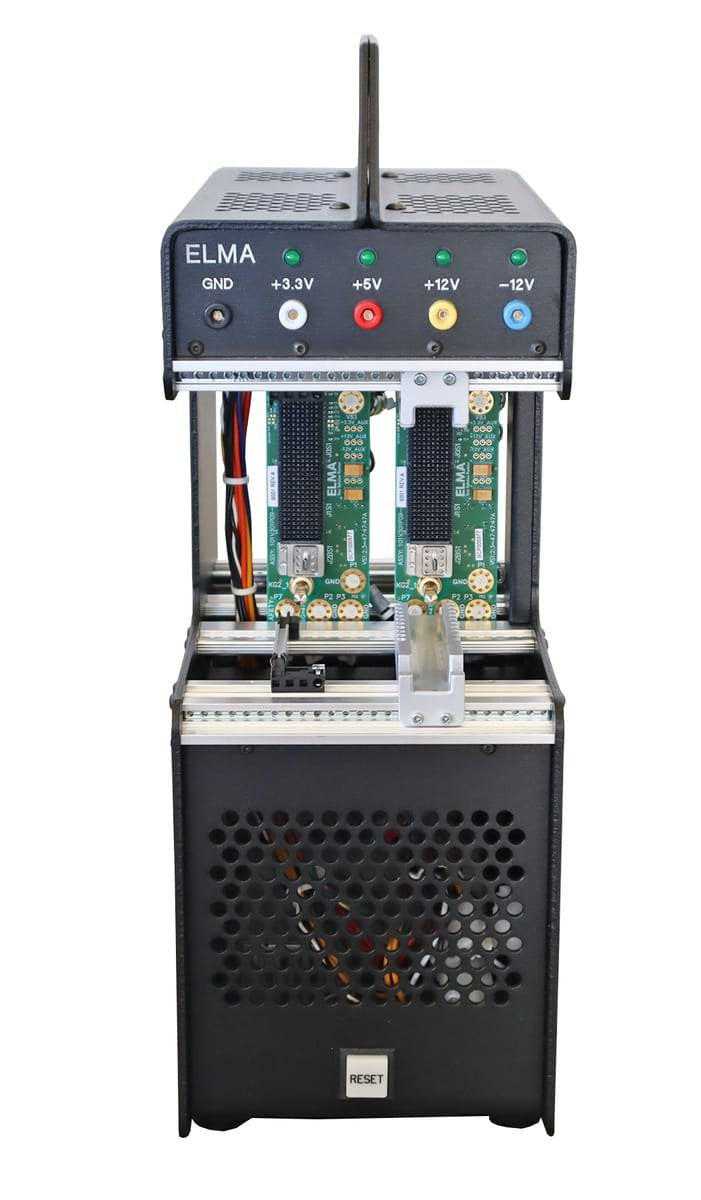

xElma’s Short VPX CompacFrame platform is designed to accelerate development and test of boards designed to fit a smaller form factor of 3U boards (3U x 100mm deep). Accommodates up to 4-slot OpenVPX or 2 VPX power & ground only backplanes
Product Features
x- Short VPX front card cage 3U high x 100mm deep
- Accommodates up to 4-slot OpenVPX or 2 VPX power & ground only backplanes
- Can combine card guides for air-cooled (VITA 48.1) and conduction-cooled (VITA 48.2) boards
- 300W ATX PSU standard, with option to replace with 3U VITA 62 plug-in power supply
- 5° upwards tilt to card cage
- Optional plug-in VITA 46.11 System Manager (ChMC)
- Dual 60mm, 42CFM fans and accommodates air-cooled and conduction-cooled plug-in cards
- 3U rear RTM slots available with fan cooling
- Front panel voltage indicating LEDs and test points
- Front panel reset and rear power entry module
Product Information
xItem/Part NumberType-39PS
Item DescriptionCompacFrame Type 39PS, Short VPX Payload Test and Development Platform
ArchitectureVPX/OpenVPX and SOSA
Datasheets and Media
xDatasheet:
Technical Guide:
