Description

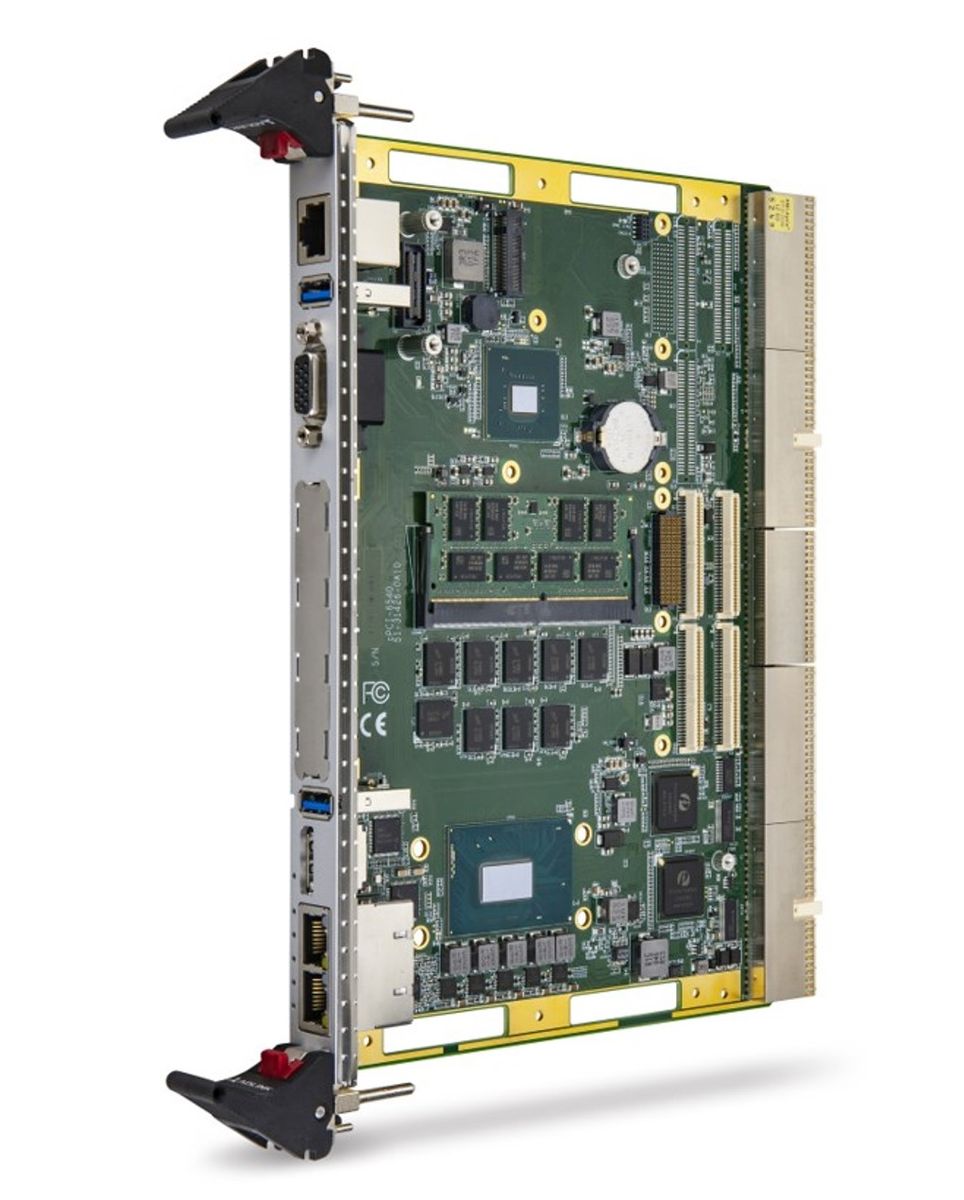

xThe cPCI-6540 Series is a 6U CompactPCI® processor blade with soldered DDR4-2666 ECC memory up to 32GB and DDR4-2666 ECC socket type memory up to 32GB. The cPCI-6540 features an Intel® Xeon® E, 9th Gen Intel® Core™ and Intel® Celeron® G processor (formerly Coffee Lake-H) with Mobile Intel® CM246 Chipset. The ADLINK cPCI-6540 Series is a 6U CompactPCI blade in single-slot (4HP) width form factor. Front panel I/O includes 1x DP, 2x GbE, 2x USB 3.1 ports, 1x RJ-45 COM port, 1x VGA and 1x PCM/XMC slot. The cPCI-6540V front panel includes 1x DP, 2x GbE, 1x USB 3.1 port and 2x PMC/XMC slots.
Product Features
x- 6U CompactPCI processor blade with 14nm multi-core 9th Gen Intel® processor (formerly Coffee Lake Refresh)
- Intel® Xeon® E-2276ME processor, 6C/12T, 45/35W by cTDP (12MB cache, up to 4.5GHz) Intel® Core™ i7-9850HE processor, 6C/12T, 45/35W by cTDP (9MB cache, up to 4.4GHz) Intel® Core™ i7-9850HL processor, 6C/12T, 25W (9MB cache, up to 4.1GHz) Intel® Core™ i3-9100HL processor, 4C/4T, 25W (6MB cache, up to 2.9GHz) Intel® Celeron® G4930E processor, 4C/4T, 35W (2MB cache, 2.4GHz)
- Dual channel DDR4 ECC memory, soldered and SO-DIMM, up to 64GB
- Versatile storage: SSD, M.2 2242 NVMe
- Dual PMC/XMC sites
- Remote management and TPM support
- Compatible with CPCI Rear Transition Modules
- Ideal for legacy retrofits
- Contact sales for board manual
Product Information
xItem/Part Number20040257
Item DescriptioncPCI-6540 Series 6U CompactPCI Processor Blade, Extended Temperature
ArchitectureCPCI
