Description

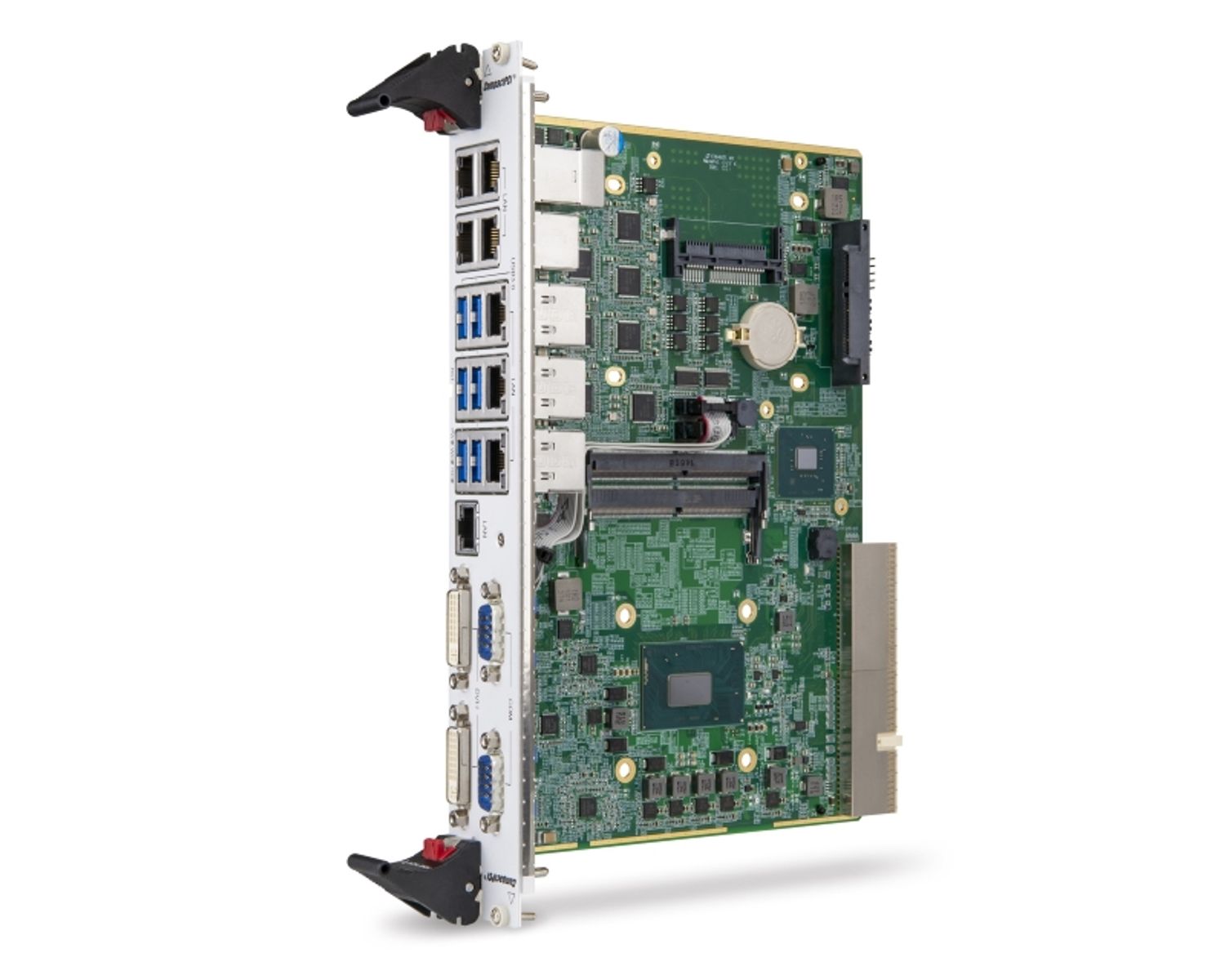

xThe cPCI-6640 is a 6U CompactPCI processor blade featuring an 8th/9th Gen Intel® Core™ with Mobile Intel® CM246 Chipset. Dual SO-DIMM slots provide up to 64GB of DDR4-2666 dual-channel memory (2x 32GB modules). ECC memory is also available when paired with a supporting CPU. The cPCI-6640 processor blade comes in dual-slot (8HP) width form factor. Front panel I/O for the cPCI-6640 includes 2x DVI-D, 8x GbE (2x configurable as PoE ports by BOM option), 6x USB 3.0 ports, and 2x RS232 serial ports. Graphics support is integrated on the CPU and supports 2 independent displays. Storage includes a CFAST slot and a 22-pin direct connector for 2.5" SATA 6Gb/s drive. The cPCI-6640 offers outstanding performance provided by the Intel® processor, and is an ideal solution for military, aerospace, transportation and other industrial applications that require best value per watt computing power.
Product Features
x- Quad-core Intel® Core™ i7/i5/i3 processor (formerly Coffee Lake): Intel® Core™ i7-9850HL 1.9/4.1GHz, 6C/12T, 9M Cache, 25W Intel® Core™ i5-8400H 2.5/4.2GHz, 4C/8T, 8M Cache, 45W Intel® Core™ i3-9100HL 1.6/2.9GHz, 4C/4T, 6M Cache, 25W
- Up to 64GB DDR4-2666 memory via two SO-DIMMs
- Two independent displays DVI-I
- 3.3V/5V power input support (5V only as BOM option)
- Seven Gigabit Ethernet port via I210-IT and 1x GbE via I219LM PHY
- Six USB 3.0 ports and 2 RS-232 ports
- One 2.5” HDD/SSD socket and 1x CFast socket as storage support
- Ideal for legacy systems processor upgrades
Product Information
xItem/Part Number20040259
Item DescriptioncPCI-6640 Series 6U CompactPCI Processor Blade
ArchitectureCPCI
Datasheets and Media
xDatasheet:
