Description

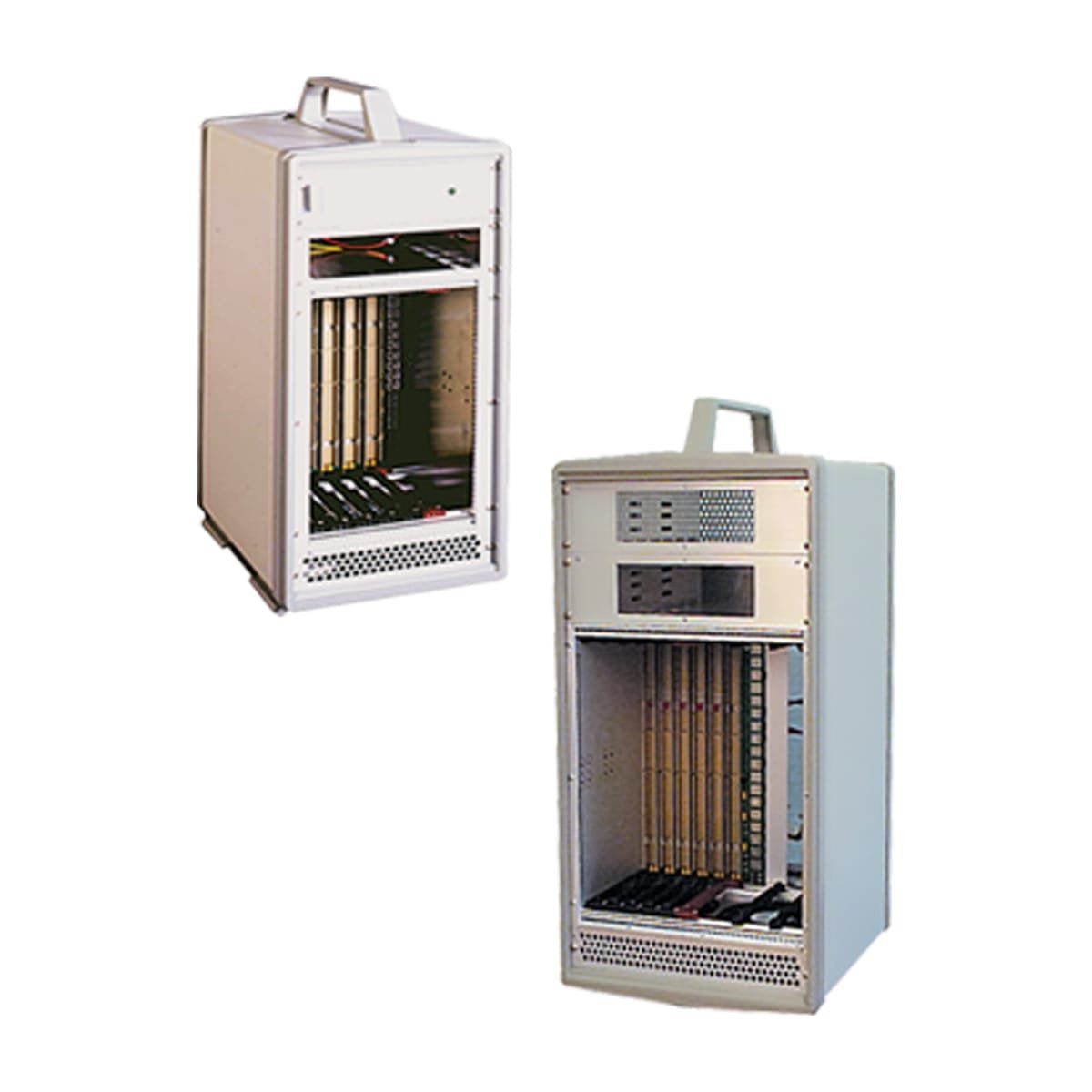

xElma Type 32C family of enclosures provide a lightweight, tower platform for packaging portable CompactPCI applications. Designed to IEEE 1101.10/.11. Standard features include feet and carrying handle.
Configure Your Solution
Product Features
x- Dimensions according to IEEE 1101.10/.11
- Elegant portable design, perfect for test equipment, lab asset, portable sales demo
- Scratch resistant vinyl clad aluminum covers
- Sturdy carrying handle
- Fully compliant 160mm & 80mm card guides with keying and ESD clip
- Advanced EMC shielding
- Aluminum sides, extrusions and covers
- Rugged for industrial use
- Designed to meet UL, CE and FCC requirements
- Standard heights are 63HP and 84HP (HP=.2”) and widths, 4U and 6U. The Type 32C accepts 6U cards mounted vertically. Systems can be configured with or without rear I/O card cage.
Product Information
xItem/Part Number32C-CPCI
Item DescriptionCPCI Type 32C Portable Tower Family
ArchitectureCPCI and CPCI Serial
