Description

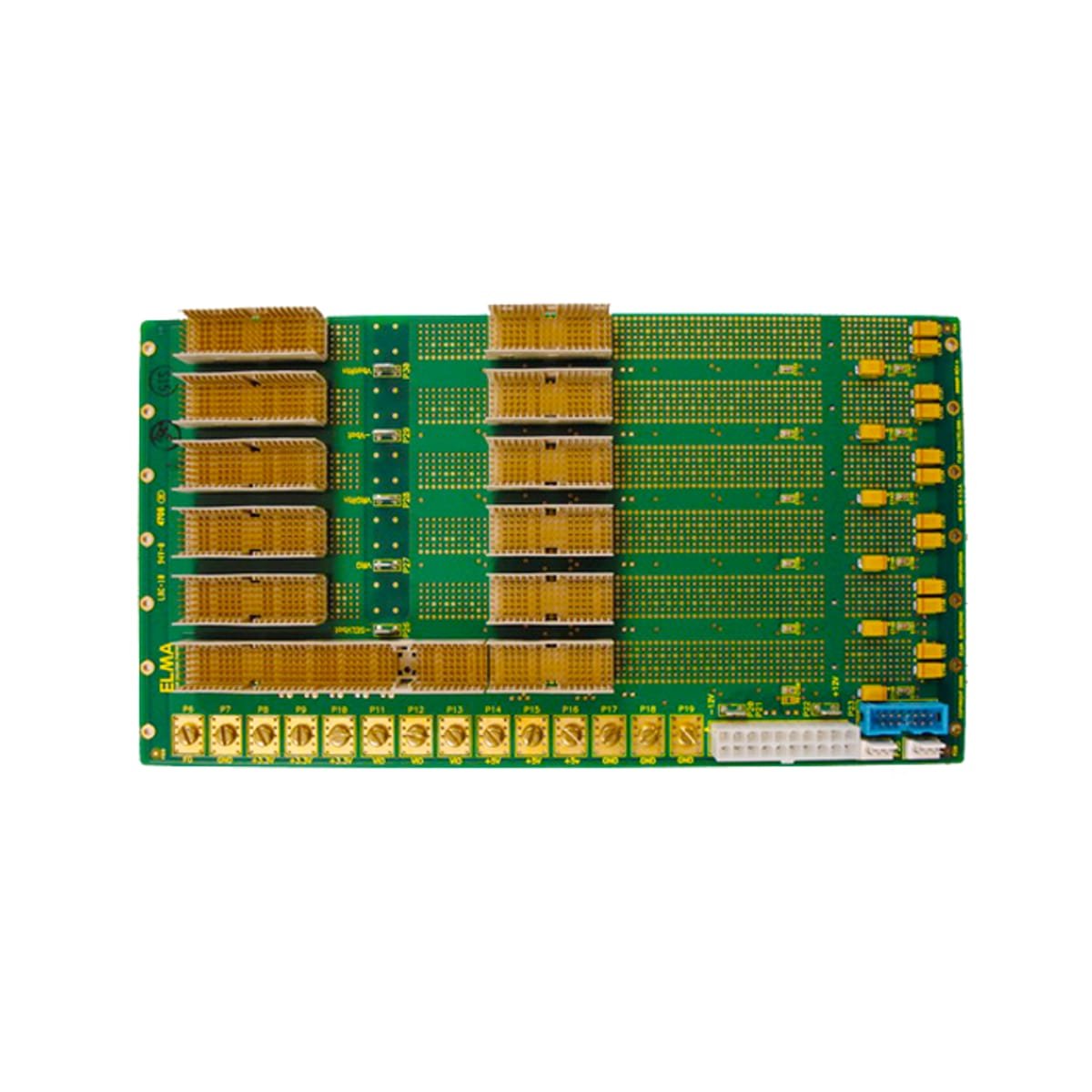

xCompactPCI CTEL 6U 5 slot with system slot left, H110 bus, ATX connector, fully compliant to the PICMG basic specification 2.0 R3.0, Hot Swap specification 2.1 R1, andv PICMG H.110 Computer Telephony specification 2.5 R1.0.
Product Features
x- Conforms to PICMG basic specification 2.0 R3.0
- Versions conforming to PICMG H.110 Computer Telephony specifications
- 8-layer and 12- layer controlled impedance stripline design
- Superior power distribution
- Virtually zero crosstalk
- Logical slot #1 (system controller) is right justified
Product Information
xItem/Part Number104CTEL605-4146R
Item DescriptionCTEL 6U 5 slot with ATX, P1P2P4s, P3P5l, RoHS
ArchitectureCPCI
Slots5
