Description

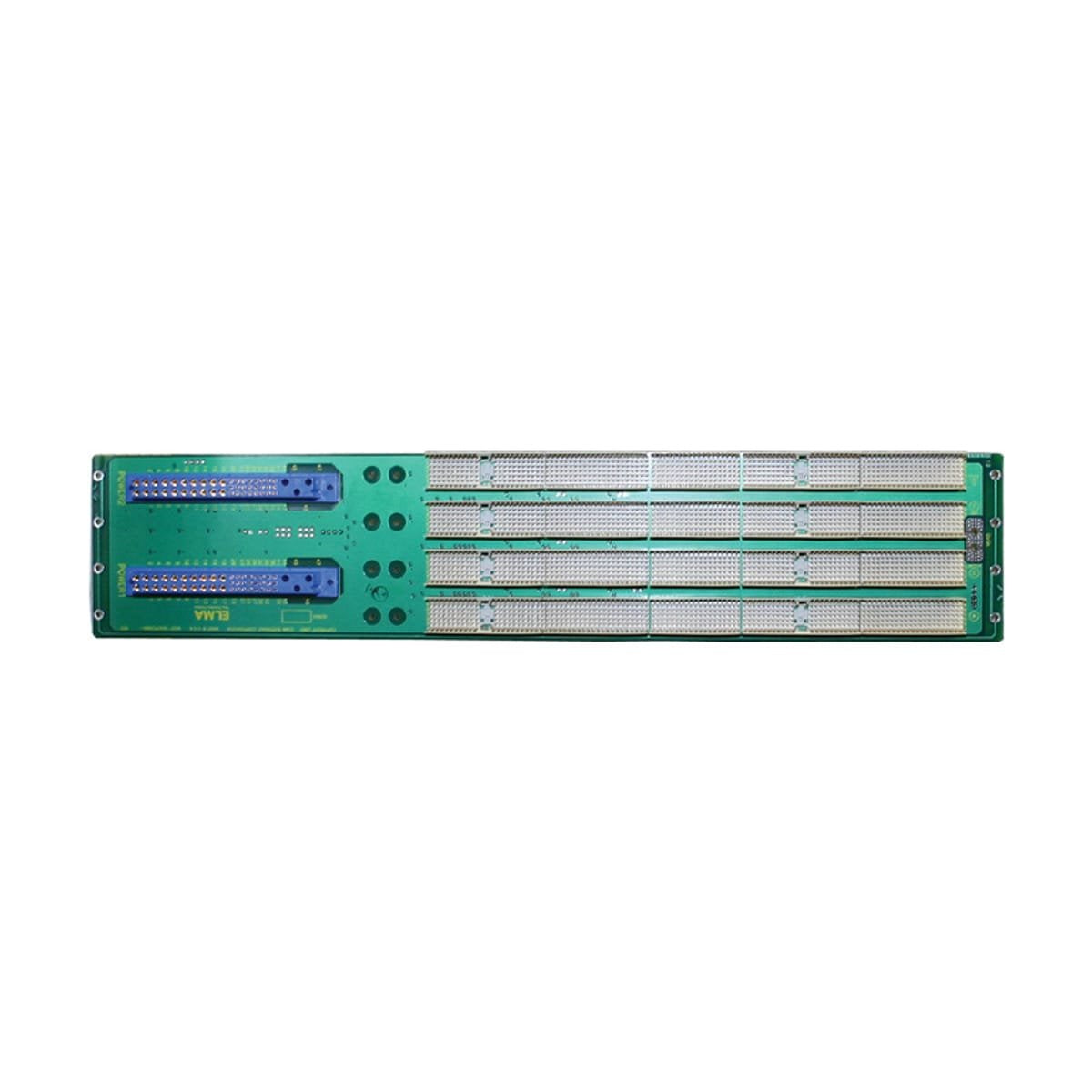

xCompactPCI CTEL 9U 4 slot with system slot left, H110 bus, 2 power connectors P47, fully compliant to the PICMG basic specification 2.0 R3.0, Hot Swap specification 2.1 R1, andv PICMG H.110 Computer Telephony specification 2.5 R1.0.
Product Features
x- Conforms to PICMG basic specification 2.0 R3.0
- Conforms to PICMG Hot Swap specification 2.1 R2.0
- Versions conforming to PICMG H.110 Computer Telephony specification 2.5 R1.0
- Right or left justified system slot
- 47-pin Positronic power supply connectors – vertically mounted in 3U, 6U versions and horizontally mounted in 9U versions
- Virtually zero crosstalk
- Logical slot #1 (system controller) is right justified
Product Information
xItem/Part Number103CTEL904-4146R
Item DescriptionCTEL 9U 4 slot left justified, 2 x P47
ArchitectureCPCI
Slots4
