Description

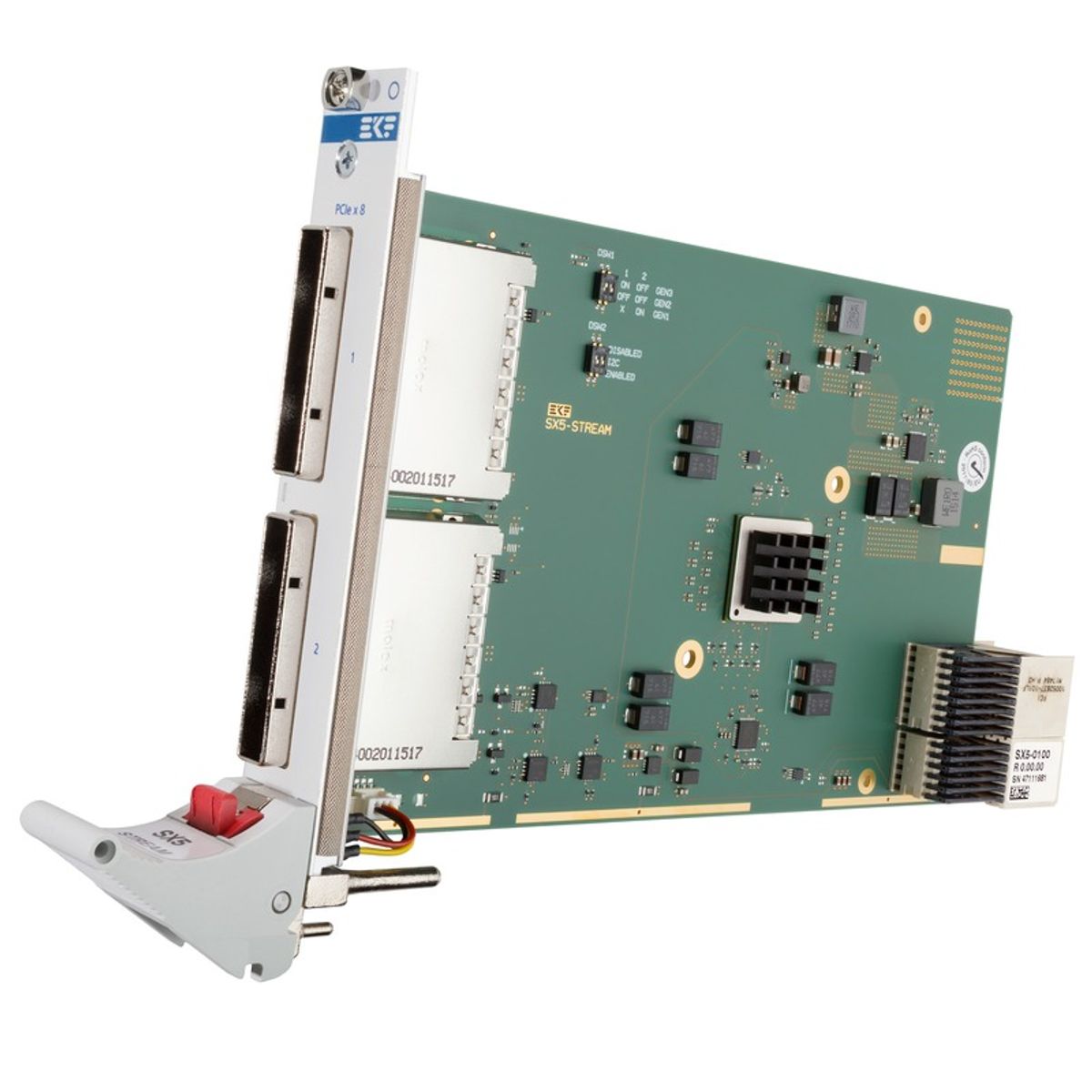

xThe SX5-STREAM is a CompactPCI® Serial host adapter card for dual PCI Express® x8 external cabling. The board is provided with two PCIe® x8 front panel connectors, for attachment of one or two remote (target) systems via PCI Express® x8 links.
Product Features
x- PCI Express® external cabling host side adapter
- PICMG® CompactPCI® Serial (CPCI-S.0) fat pipe slot x8 recommended
- Single Size Eurocard 3U 100x160mm2, front panel width 4HP
- cPCI-S Backplane connectors P1, P2 for x8 PCI Express® lanes
- PCI Express® External Cabling Specification Revision 2.0
- Two connectors PCIe x8 68-pos. (front panel), iPass™ (Molex)
- Two target systems or devices can be attached simultaneously
- Gen3 PCI Express® 24-lanes packet switch on-board
- For lowest latency at fastest speed connected systems. Distributed computing - host to target system hierarchy.
- Peer to peer computing - special TCP/IP stack (Dolphin) available. Split-systems, hybrid systems, or system expansion applications.
Product Information
xItem/Part NumberSX5-STREAM
Item DescriptionDual Port PCIe GEN3 x 8
ArchitectureCPCI Serial
