Description

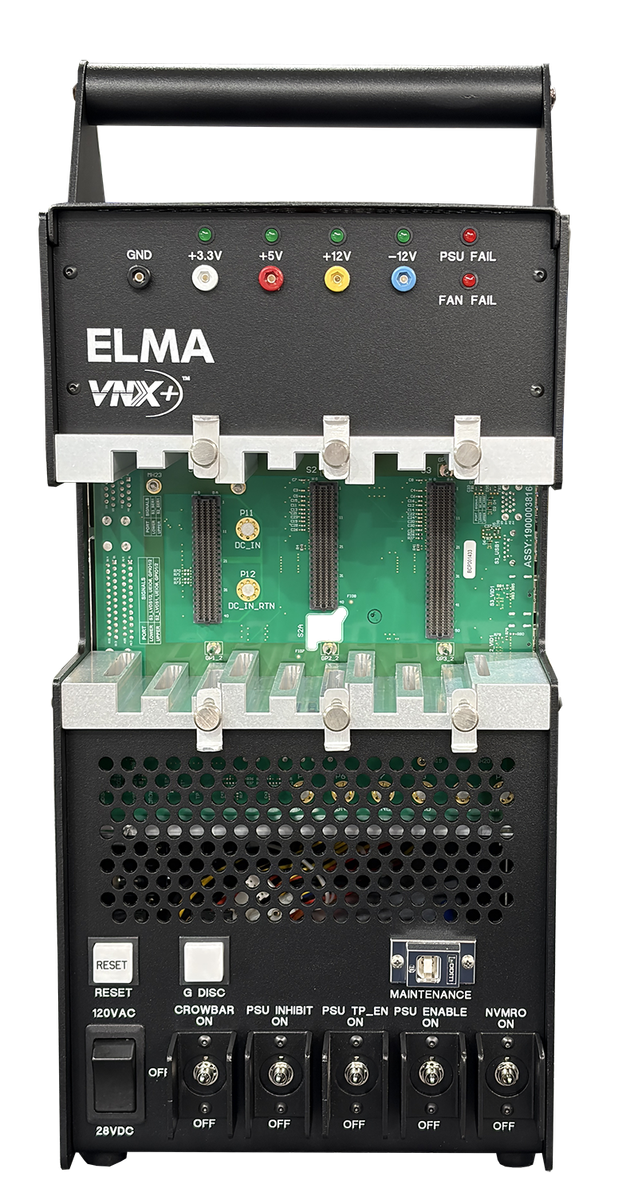

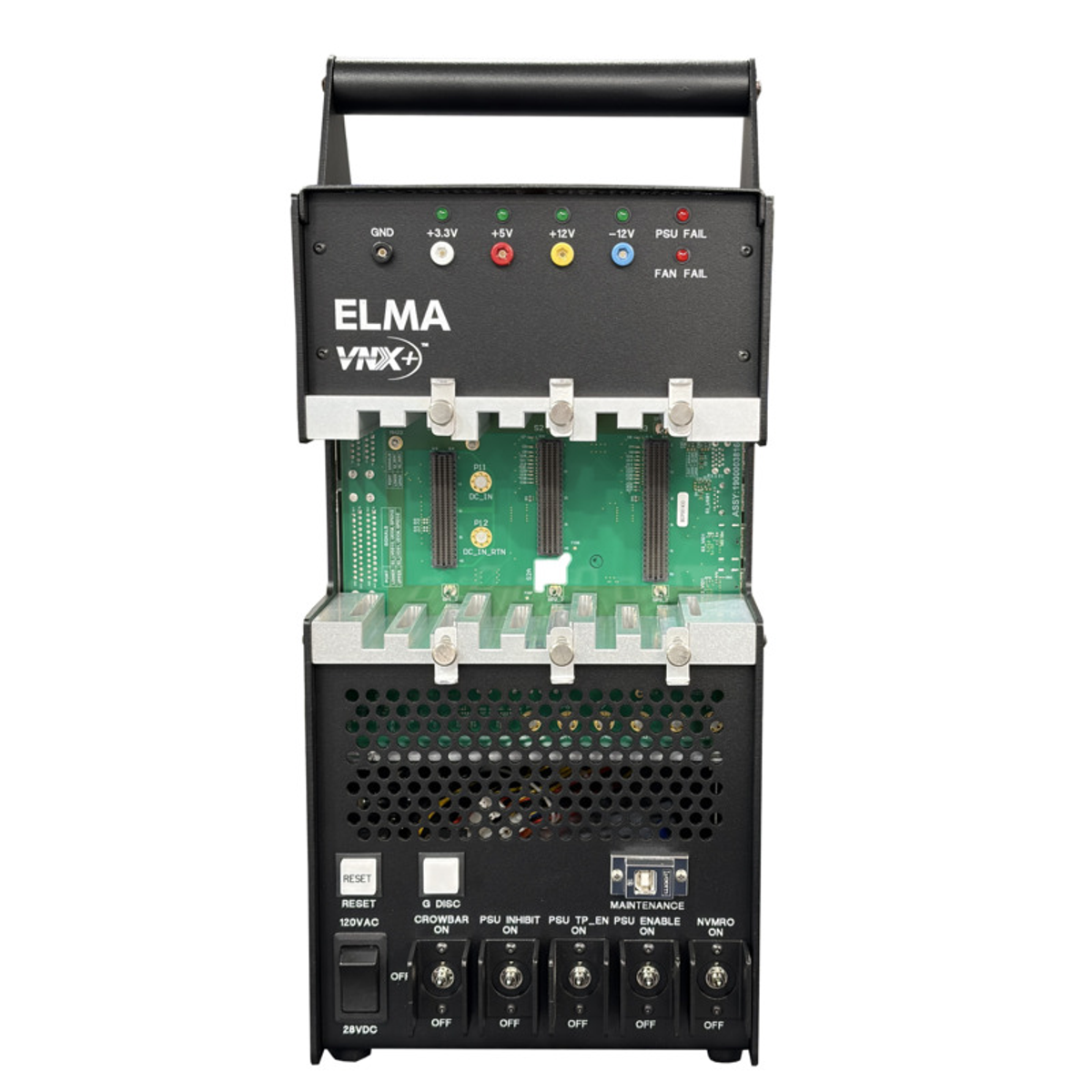

xElma’s 3-Slot FlexVNX+ Development Chassis is the industry’s first compact, SOSA™ and VITA-90 aligned VNX+ platform, purpose built for rapid board bring-up, validation, and test of plug-in cards (PICs).
Product Features
x- 3 Slot Configuration:
- 2x Payload slots:
- 1x VNX.PL-1-HH.400-7.2.1.1-
- 1x VNX.PL-1-HH.320-7.2.2.1- - 1x Balanced Power Supply slot - Backplane supports up to 10GHz signaling - 10GBASE-KX/40GBASE-KX4 Ethernet - PCI Express Gen4
- Full SOSA aligned V46.11 chassis manager (optional on model # 39S03VPXZZN2VANC
- Maintenance port aggregator connecting all slots
- Supports 19mm or 39mm modules, with and without wedgelocks and with and without metal shells
- Full I/O from one 400-pin slot and one 320-pin slot
- Each slot provides airflow directed at the module top surface to provide cooling without conduction cooling thermal paths
- Power switchable from either a VITA 90.3 PS module or an internal 110/200V PSU
- Simple Payload-Payload Plane(DP/EP/CP) connectivity
- REACH and ROHS Compliant
Product Information
xItem/Part Number39S03VPXZZY2VAND
Item DescriptionFlexVNX+ 3-Slot Test and Development Platform Aligned to SOSA and VITA 90 Standards
ArchitectureVNX+
