Description
xThe IC-ARM-VPX3c provides up to 32GB of DDR4-ECC, M.2 slot, eMMC, xSRAM and SATA3 storage solution interfaces, allowing system designers to meet large centralized system topology requirements and handle scenarios with heavy traffic on specific backplane segments
Product Features
x- The IC-ARM-VPX3c provides: / 10/25/40/100 Gigabit Ethernet Data Plane / PCI Express Gen2/3 Expansion Plane / 10 Gigabit Ethernet Control Plane
- This 3U VPX module is compliant with the following VITA 65.0 OpenVPX Slot profile: SLT3-PAY-1F1F2U1TU1T1U1T-14.2.16

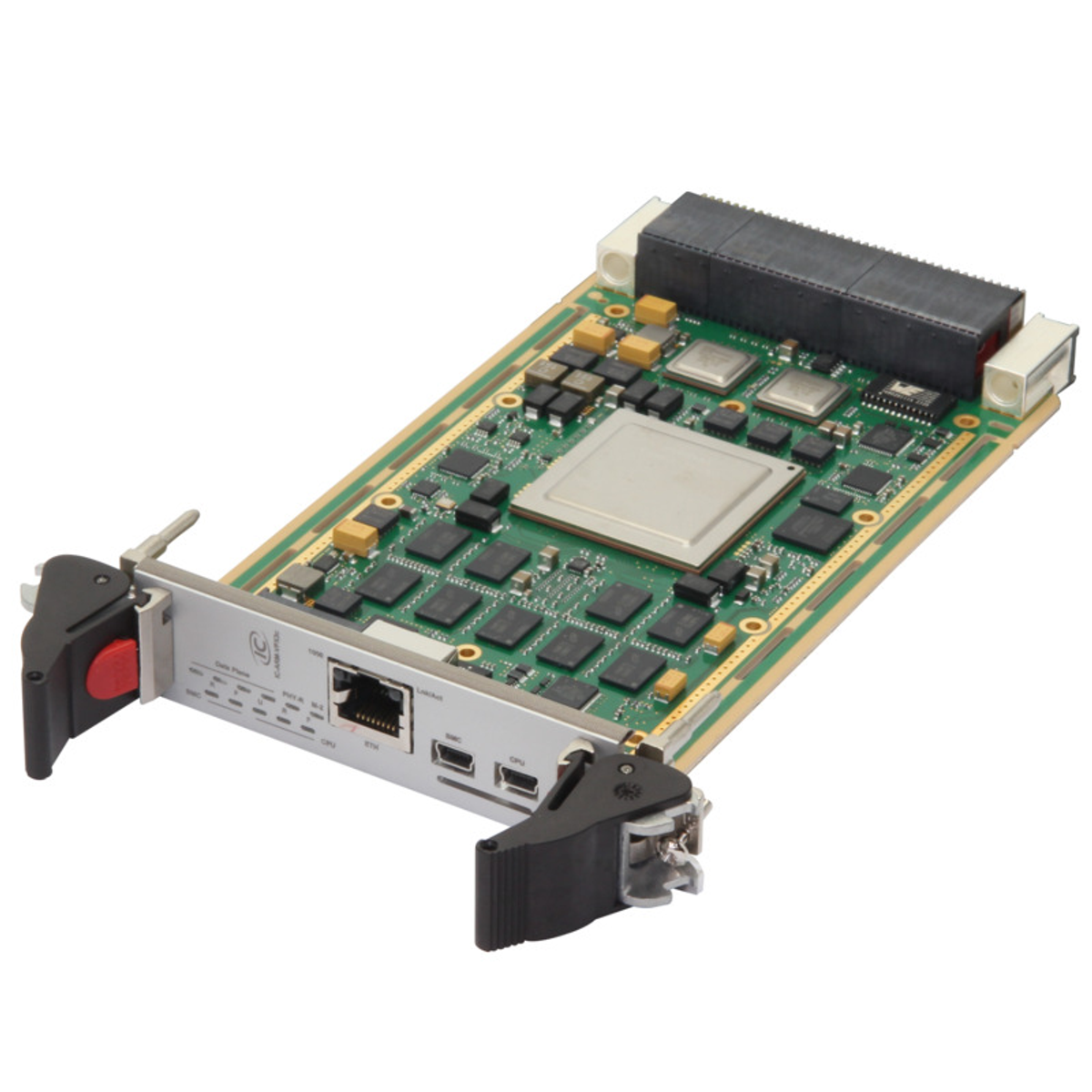

- The IC-ARM-VPX3c is available in air-cooled and conduction-cooled versions. (1.5’’ AFT version possible. Please consult us).
- Front and back L2 maintenance covers are available for conduction-cooled models.
- With its embedded Ethernet retimers with autonomous KR link training, the IC-ARM-VPX3c interfaces are immediately available under UBoot firmware. No specific driver is needed to support backplane’s communications
- The IC-ARM-VPX3c is aligned with the SOSATM Technical Standard to provide high interoperability in new modular systems.
- A simple software configuration provides the flexibility to switch between the SOSATM Alternate Module Profile Schemes (AMPS) listed: MODA3-16.2.15-1-F2C-(E8/E18/4E7/4E8)(P3F)(2E7-E3)(S3-N-U2-U1-M3/M4-G1)
- A dedicated SUBD-9 to mini-USB cable allows to connect standard RS-232 port to front-panel CPU and BMC console ports.
Product Information
xItem/Part NumberIC-ARM-VPX3c
Item Description3U VPX LX2080A/LX2160A Arm®-based Single Board Computer
ArchitectureVPX/OpenVPX and SOSA
Datasheets and Media
xDatasheet:
