Description

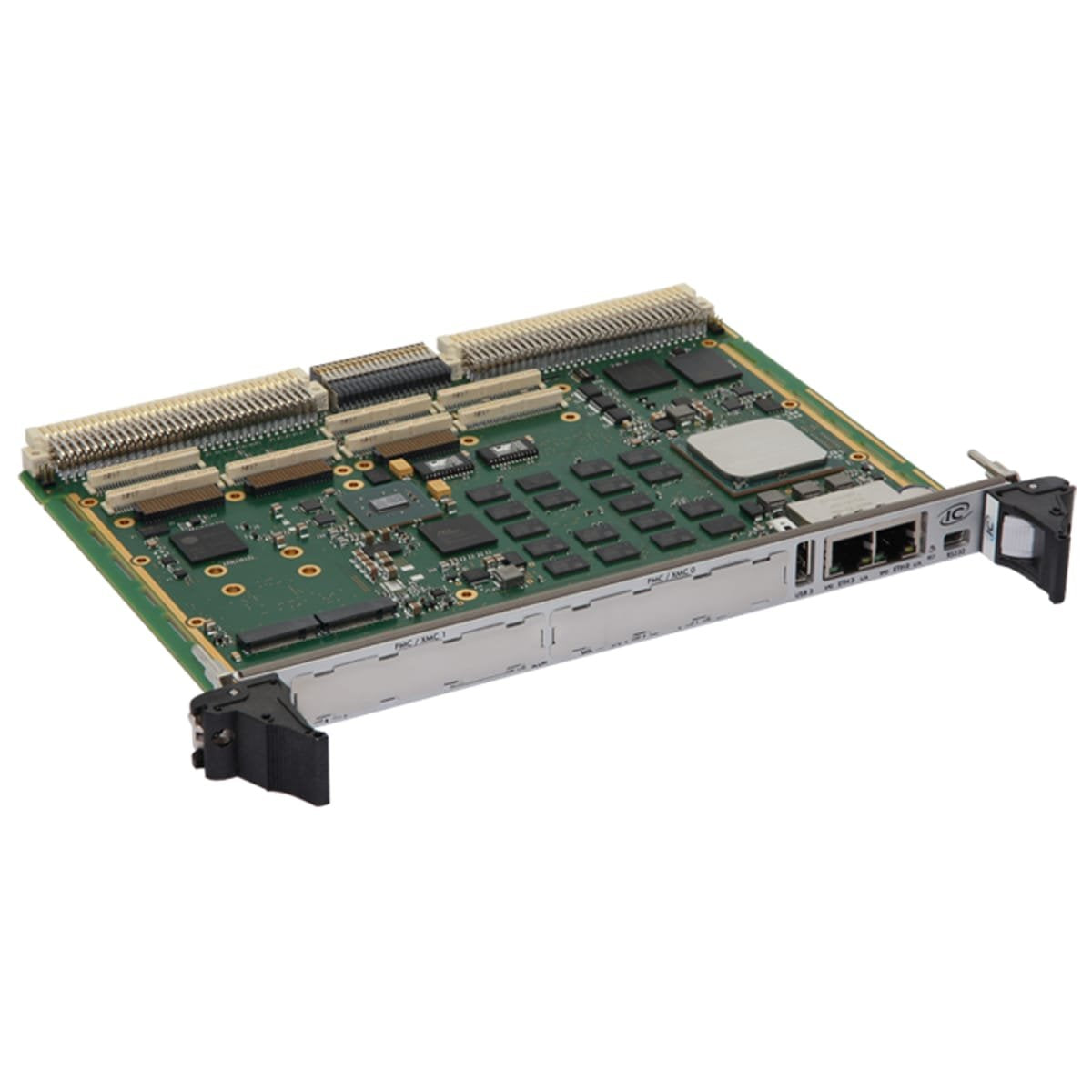

xThe IC-INT-VMEc is a general-purpose Single Board Computer, aimed at lengthening the lifetime of legacy VMEbus systems. Based on an Intel® Xeon® processor D-15xx, it is designed to provide rugged, high-performance and highly secure solutions.
Product Features
x- 1* Intel ® Xeon ® D-1519 or D-1539
- Up to 2*8 GB DDR4 with ECC (optionally up to 2*16 GB)
- Up to 16 GB SLC On-board SATA SS, 2 M.2 SATA Key M SSD connectors, and up to 3 * SATA ports on P0
- 4 Gigabit Ethernet ports (2 front/ 2 rear); 4 USB ports (1 front & 3 rear); 1 console port (front or rear); 3 multimode serial ports (RS422, RS485, RS232); 1 rear or front VGA (P2) or DVI (P0)
- I/O subsystem: VME64x with 2 PMC/XMC slots. Slot 0 is compatible with VITA35 P4V2-64ac, and slot 1 has 20 differential pairs (X20d) and 13 single-ended (X13s) connected to VME P0 from Pn6 (X16d + X10s with DVI manufacturing option)
- 6U Rear Transition Module
- Air-cooled and conduction-cooled (without any front I/O) versions compliant with VITA 47 classes.
Product Information
xItem/Part NumberIC-INT-VMEc
Item DescriptionIC-INT-VMEc, 6U VME Intel Xeon Single Board Computer
ArchitectureVME/VME64x
