Product Features
x- Processing Unit • 1 * Intel® Xeon® (Tiger Lake-H) • W-11555MRE (6 Cores, 2.60 GHz) or • W-11865MRE (8 Cores, 2.60 GHz) • 2 * banks of DDR4 with ECC (up to 8/16 GB/bank) • Boot flash memory
- 1 * XMC slot
- 1 * M. 2242 slot for SATA SSD
- 1 * FPGA
- 1 * Board Management Controller / Thermal/voltage monitoring sensors
- Front connectors - mini USB console port
- • 1 * 100G Ethernet port or 4 * 10GBASE-KR ports • 1 * PCIe x4 or 4 * SATA ports • 1 * 10GBASE-KR Ethernet port • 1 * 10GBASE-KR Ethernet port or 1 * 1000BASE-KX Ethernet port (*) • 1 * Maintenance serial port • 1 * GPIO • XMC IOs report (x12d)
- P2 connector • 1 * Video Display port • 1 * USB3.0 port • 2 * USB2.0 ports • 1 * SATA port • 2 * 10GBASE-KR Ethernet ports or 1 * 1000BASE-T Ethernet port (*) • 1 or 2 * Serial ports (232/422) • 3 * GPIOs • XMC IOs report (X16s+X8d)
Product Information
xItem/Part NumberIC-INT-VPX3l

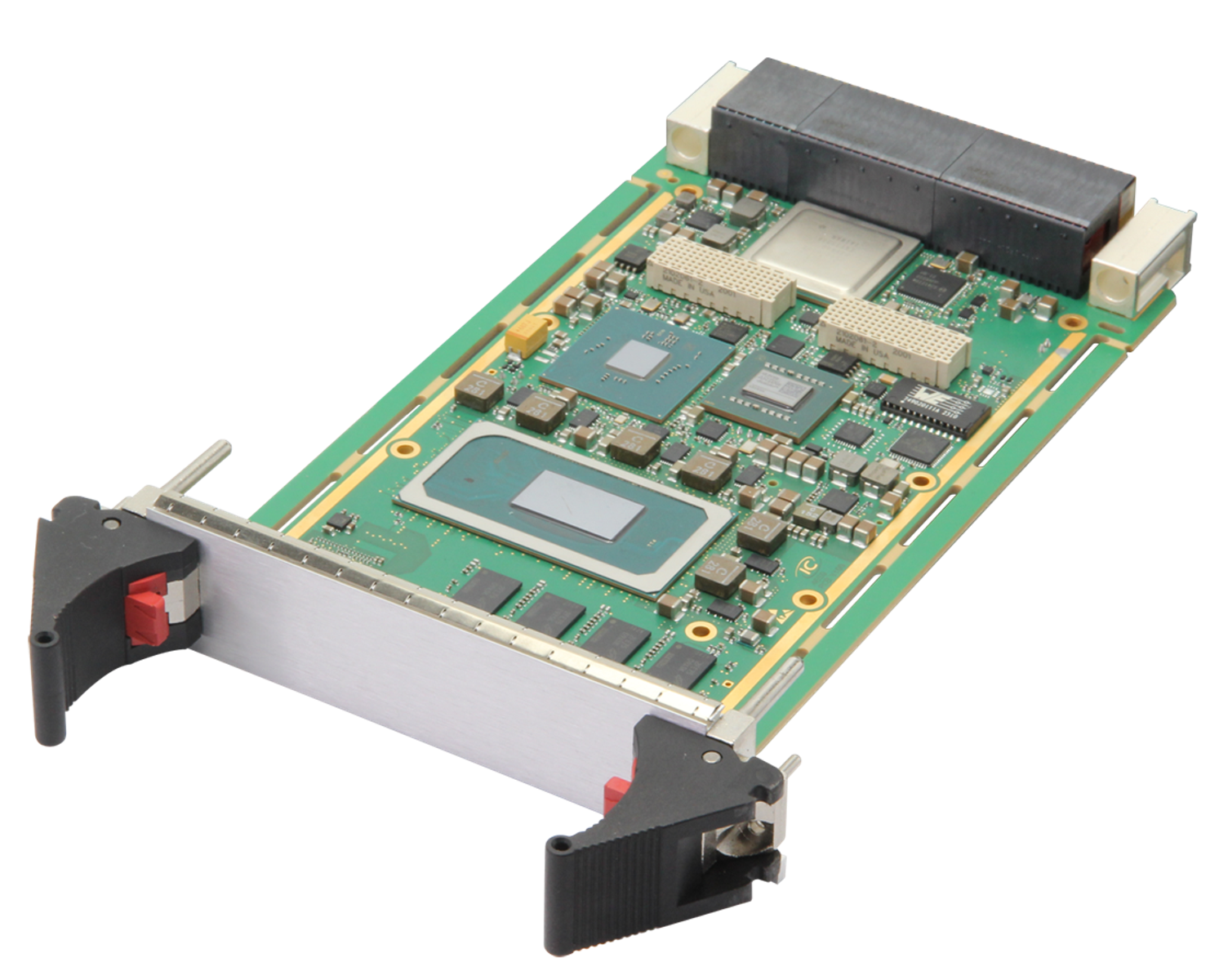

Item DescriptionIC-INT-VPX3l, SOSA™-aligned 3U VPX Intel® Xeon® W SBC
ArchitectureVPX/OpenVPX and SOSA
Datasheets and Media
xDatasheet:
Technical Information
xCooling: Conduction-Cooled and Air-Cooled
Environment: Commercial Temperature, Industrial Temperature, Extended Temperature, Industrial shock & vibration, and Extended shock & vibration
Height: 3 U
