Description

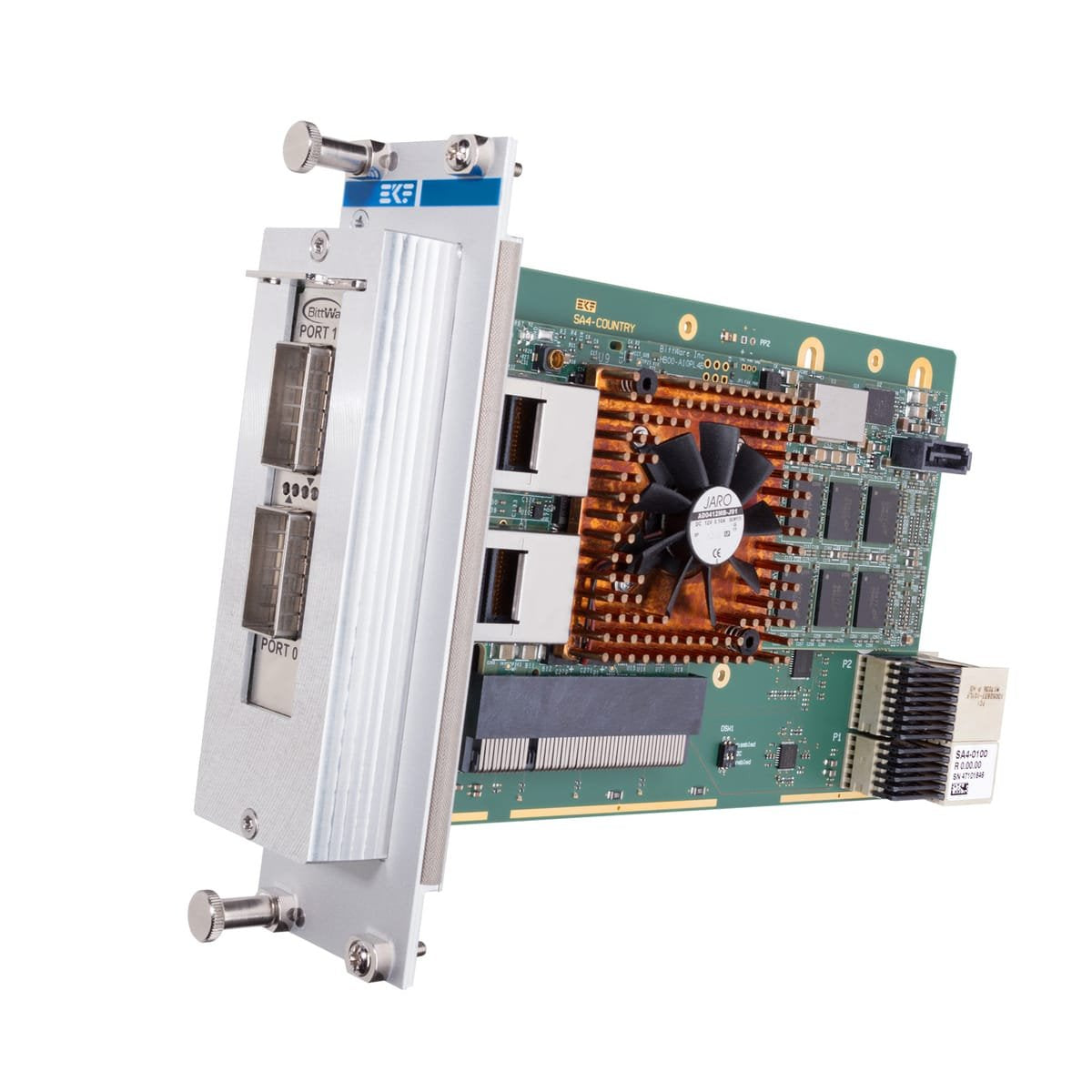

xThe SA4-COUNTRY is a peripheral slot board for PICMG® CompactPCI® Serial systems and acts as carrier for low profile PCI Express® Card. The SA4-COUNTRY is provided with a PCI Express® x8 connector.
Product Features
x- Single size Eurocard 3U 8HP 100x160mm2 , assembly extension through front panel (metal cap 13.5mm)
- Actual front panel width may vary depending on customers special needs for system integration and the particular PCI Express® Card in use
- Suitable for CompactPCI® Serial peripheral slot (PCI Express® enabled)
- CompactPCI® Serial fat pipe slot PCIe x8 or at least peripheral slot PCIe x4 recommended
- CompactPCI® Serial backplane connectors P1 & P2 for PCI Express® x8
- CompactPCI® Serial backplane connector P1 for PCI Express® x4 PCI Express® Card
- Carrier board for limited size (short profile) PCI Express® Card
- Maximum card dimensions 176.0mm x 68.9mm
Product Information
xItem/Part NumberSA4-COUNTRY
Item DescriptionPCI Express card carrier, PCIe Gen 3 x8 connection
ArchitectureCPCI Serial
