Description

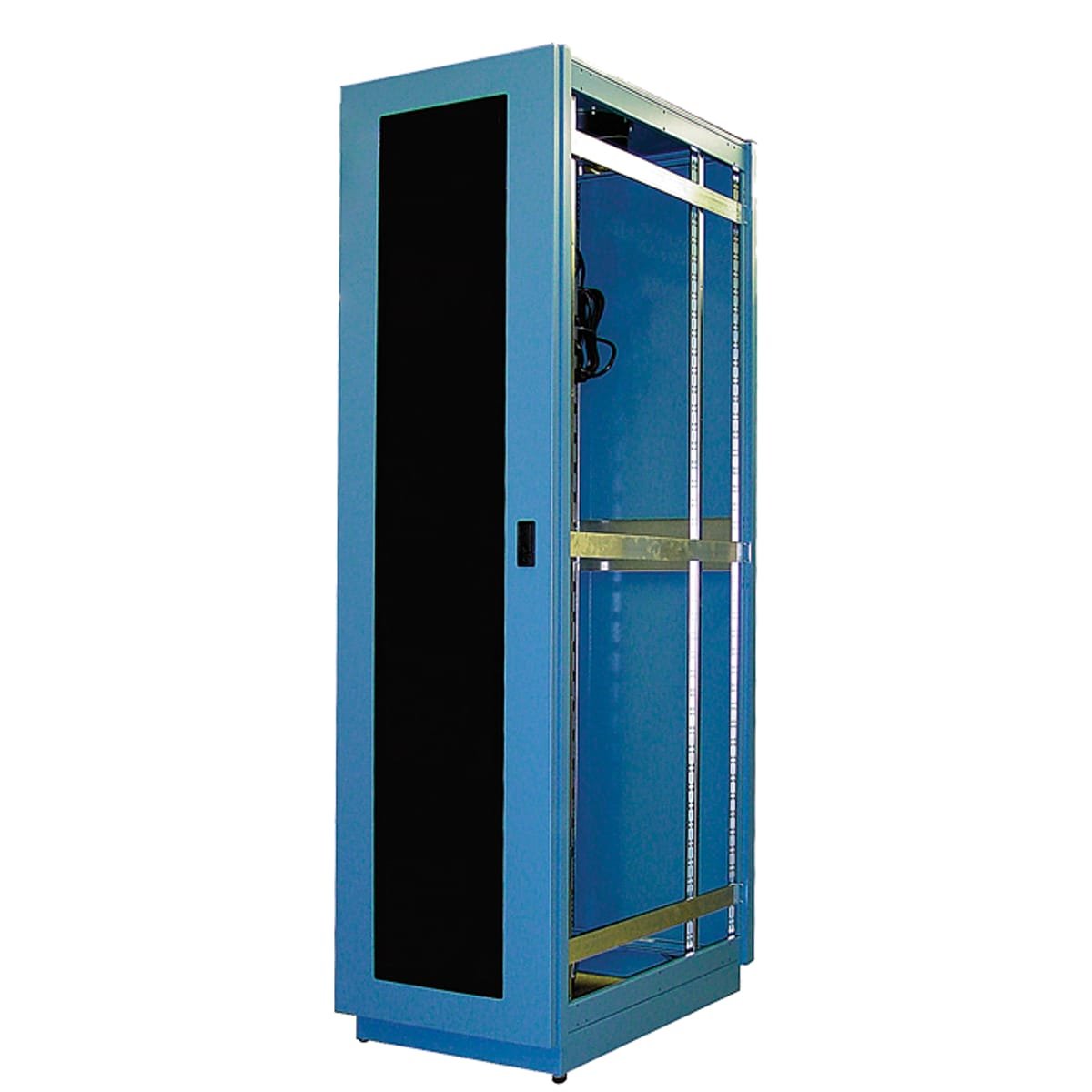

xThe RA Series Cabinet is an all-aluminum frame design. The aluminum tubular bezels are flush with front panel surfaces and feature a wide recessed channel. Doors are surface mounted to extend beyond the bezel frame.
Configure Your Solution
Product Features
x- Modular extruded, aluminum frame (6063-T5 AL)
- Solid Billeted aluminum corners (four way crimped)
- Bezel tested to 6,600lbs static load (2,000lb rated)
- Widths: 19", 23" and 24"
- Depths: 24", 30", 36", 42"
- Depths: 24", 30", 36", 42"
- Independent, removable side, top panel, bottom panel and doors
- Integrated cable management, power conditioning and cooling options
- Phosphate, pre-treating and durable acrylic coating based on thermo setting, cross-linking resins
- Wide range of std. body and trim color options
Product Information
xItem/Part NumberRA Series
Item DescriptionRA Series Cabinets
