Description

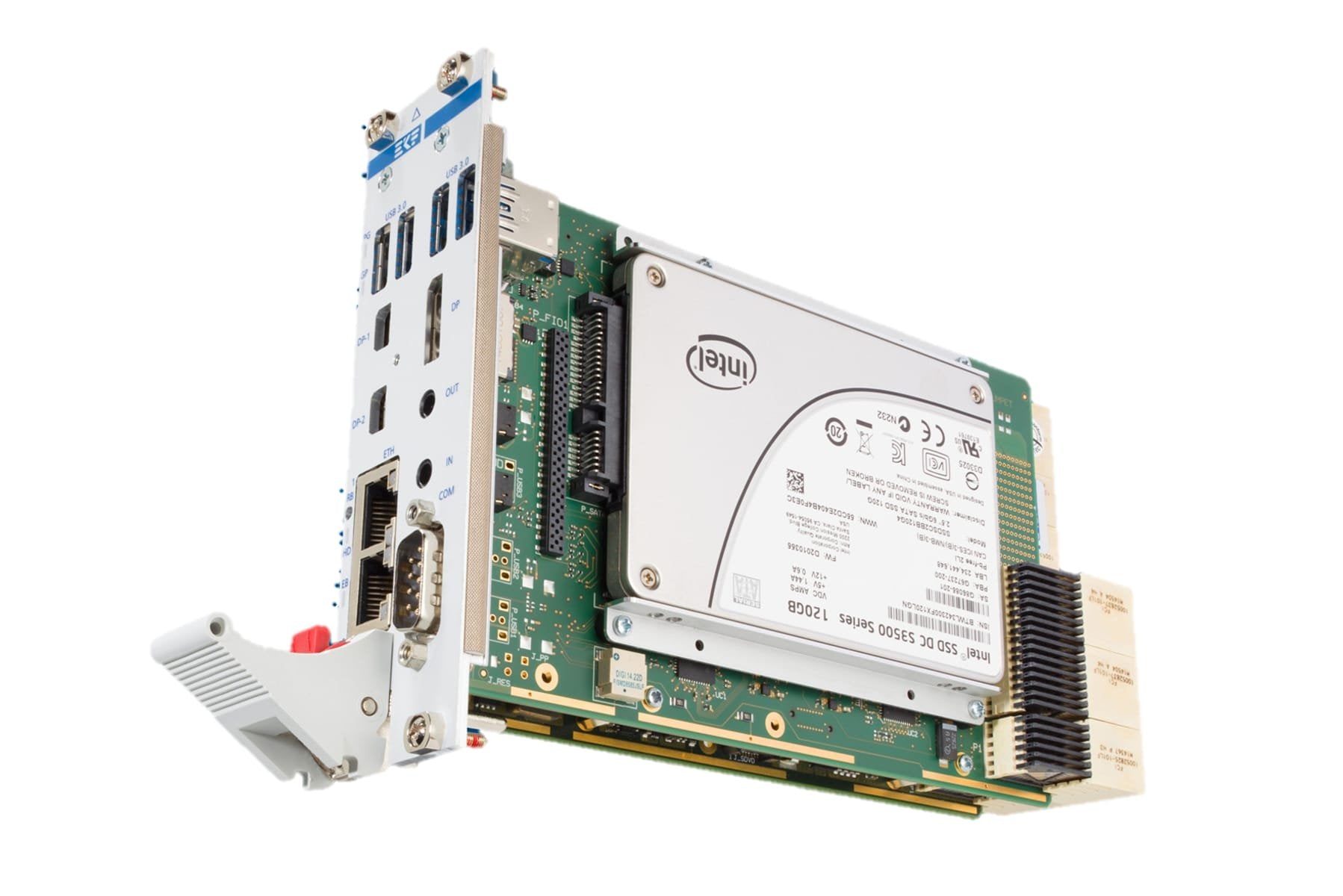

xSCS-TRUMPET can accommodate a 2.5-inch SATA drive (SATA docking connector), which is also suitable for a Half-Slim SATA SSD module. Can be populated with two M.2 (NGFF) SATA based SSD storage modules, up to the 2280 size.
Product Features
x- Mixed function mezzanine side card for EKF CompactPCI® Serial CPU boards
- Provides additional front panel I/O, choice of on-board SATA storage solutions, and optional rear I/O capabilities
- Suitable e.g. for use with CPU cards SC1-ALLEGRO, SC2-PRESTO, SC3-LARGO
- 8HP assembly together with CPU card
- 12HP assembly in total with CPU card and C32-FIO mezzanine
- 2 x USB 3.0 xHCI SuperSpeed F/P connectors
- DisplayPort F/P connector (standard type, latched)
- 2 x Analog audio F/P jacks 3.5mm In/Out
- USB 2.0 F/P connector option (replaces audio jacks when ordered)
- Option on-Board SATA 6G SSD/HDD 2.5-inch size drive or Half-Slim SATA SSD module
Product Information
xItem/Part NumberSCS-TRUMPET
Item DescriptionSATA, USB, DP
ArchitectureCPCI Serial
