Description

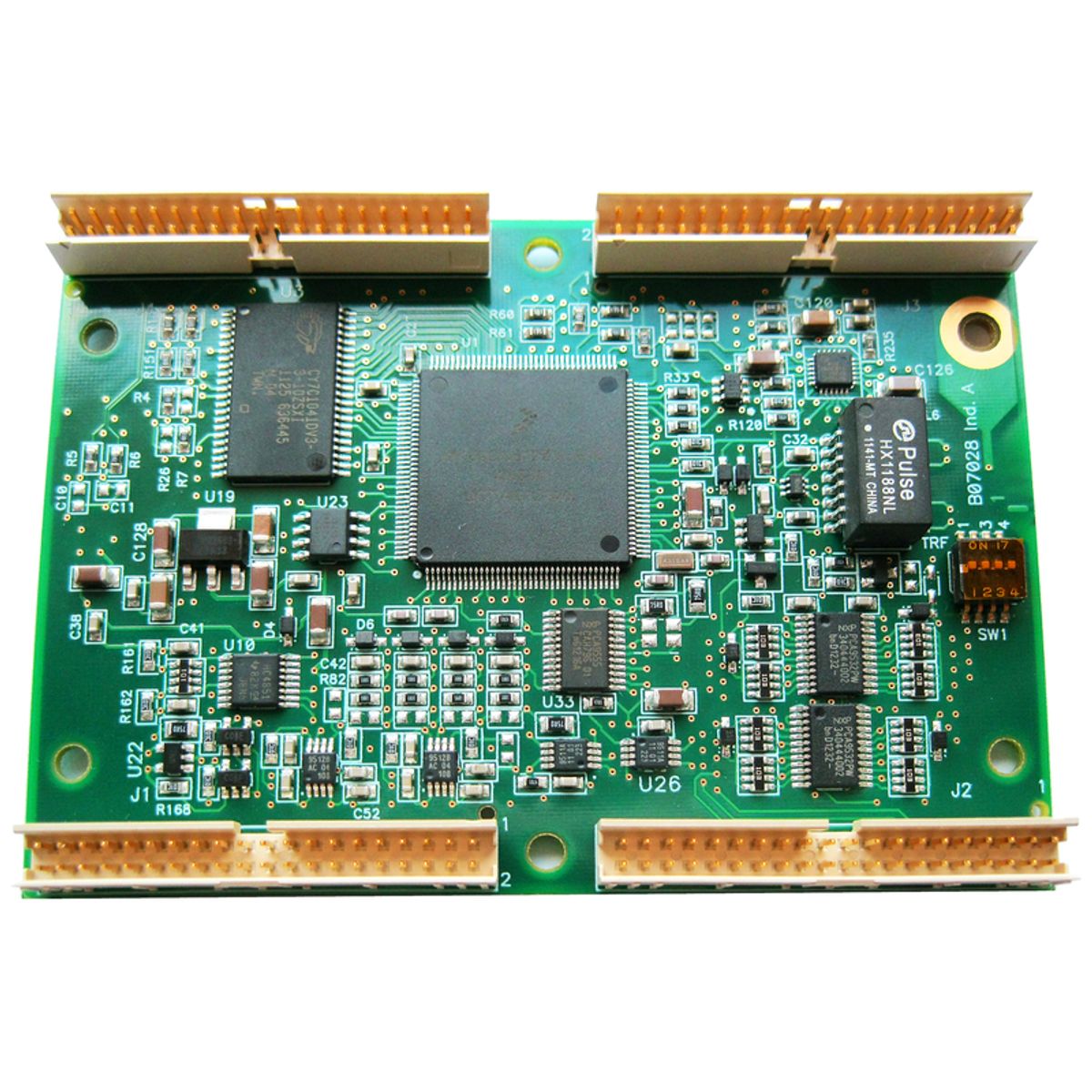

xDesigned to align with SOSA® and OpenVPX based systems, Elma’s VPX Chassis Manager assures the proper operation of chassis components (power supply, fans, backplane) and plug-in cards in defense embedded computing platforms. It monitors the health of the chassis, reports anomalies and takes actions when needed.
Product Features
x- Aligned to the SOSA Technical Standard Version 1.0, VITA 46.11 Tier 3, with firewall support and SOSA out-of-band command support
- IPMI Chassis Manager with redundant IPMB to maximize uptime
- Web based Graphical User Interface monitors up to 12 fans, 8 analog inputs and 6 external thermistors for temperature measurements
- Provides 16 digital inputs and 16 configurable digital outputs
- Sensor Event Log and cooling control
- Available in the following form factors: stand-alone (79-V46-CHMC-CMX-S2), 3U air-cooled plug-in card (79-V46-3-CHMC-CMA-S1); and 3U & 6U conduction cooled plug-in cards (79-V46-3-CHMC-CMC-S1, 79-V46-6-CHMC-CMC-S1)
- Ask about our range of partner processors, switches and payload bards as well as sub-system integration and test.
Product Information
xItem/Part Number79-V46-CHMC-CMx-S2
Item DescriptionSOSA Aligned Family of Chassis Managers, VITA 46.11
ArchitectureVPX/OpenVPX and SOSA
Datasheets and Media
xDatasheet:
Technical Guide:
