Description
xThe 14U, 12R2 was designed to meet the harsh environment of shipboard, airborne, and ground mobile applications per MIL-STDs.Shock isolated versions are designed to attenuate 25G shock to the chassis to less than 10Gs at the card cage and PSU tray.
Configure Your Solution
Product Features
x- VPX, VME64x, VXS, VPX, cPCI and MicroTCA compatible
- 14U H, standard depth 25"
- 2-20 slot, IEEE 1101.10/.11 compliant card cages, front load
- Front to rear evacuative cooling (350 LFM @ .1" H20)
- Front mounted LEDs for| voltage monitoring, fan fail and over temp
- 500 to 2000 watt PSU options
- 19" rackmount per IEC60297 (slide mounting optional)
- Custom rear I/O patch panel (rear I/O cards optional)
- Input options: 90-264VAC Fixed PSU, 47-500 Hz, 28/48VDC
- Designed to meet MIL-STD-5400, MIL-STD-810F, MIL-STD-46IE, MIL-STD-704E, MIL-STD-1275A, MIL-STD-167, MIL-STD-901D. Highly configurable, the unit can be ordered with choice of VME, VME64x, VXS, VPX, CPCI or MicroTCA, fixed or shock isolated card cage
Product Information

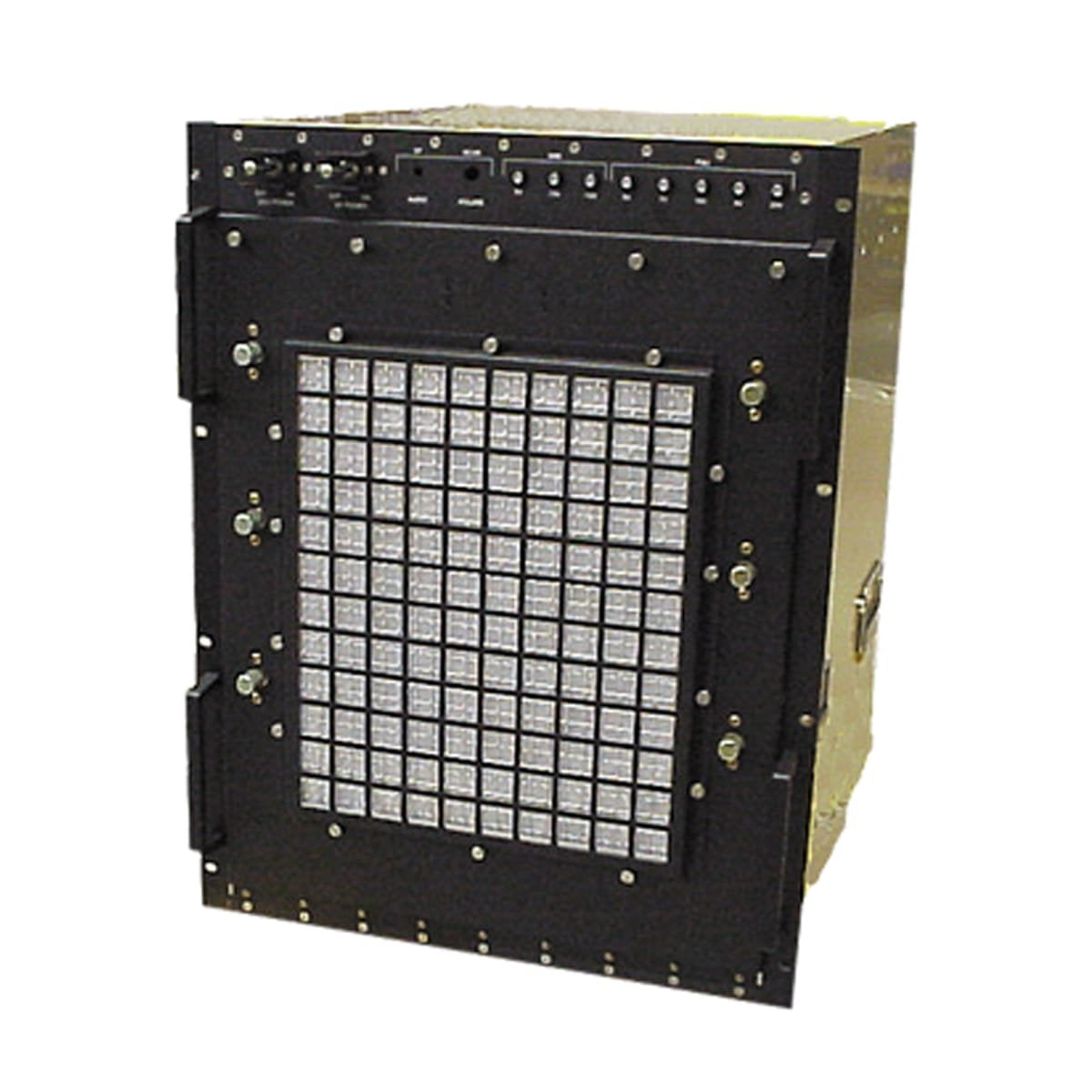

xItem/Part Number12R2-14U-V
Item DescriptionType 12R2, 14U, 19" Rackmount, MIL-Rugged, Vertical
ArchitectureATCA, CPCI, CPCI Serial, Non Standard Based, VME/VME64x, VPX/OpenVPX, Other, and CPCI Plus IO
Datasheets and Media
xDatasheet:
Technical Guide:
Brochure:
Test Report 1:
