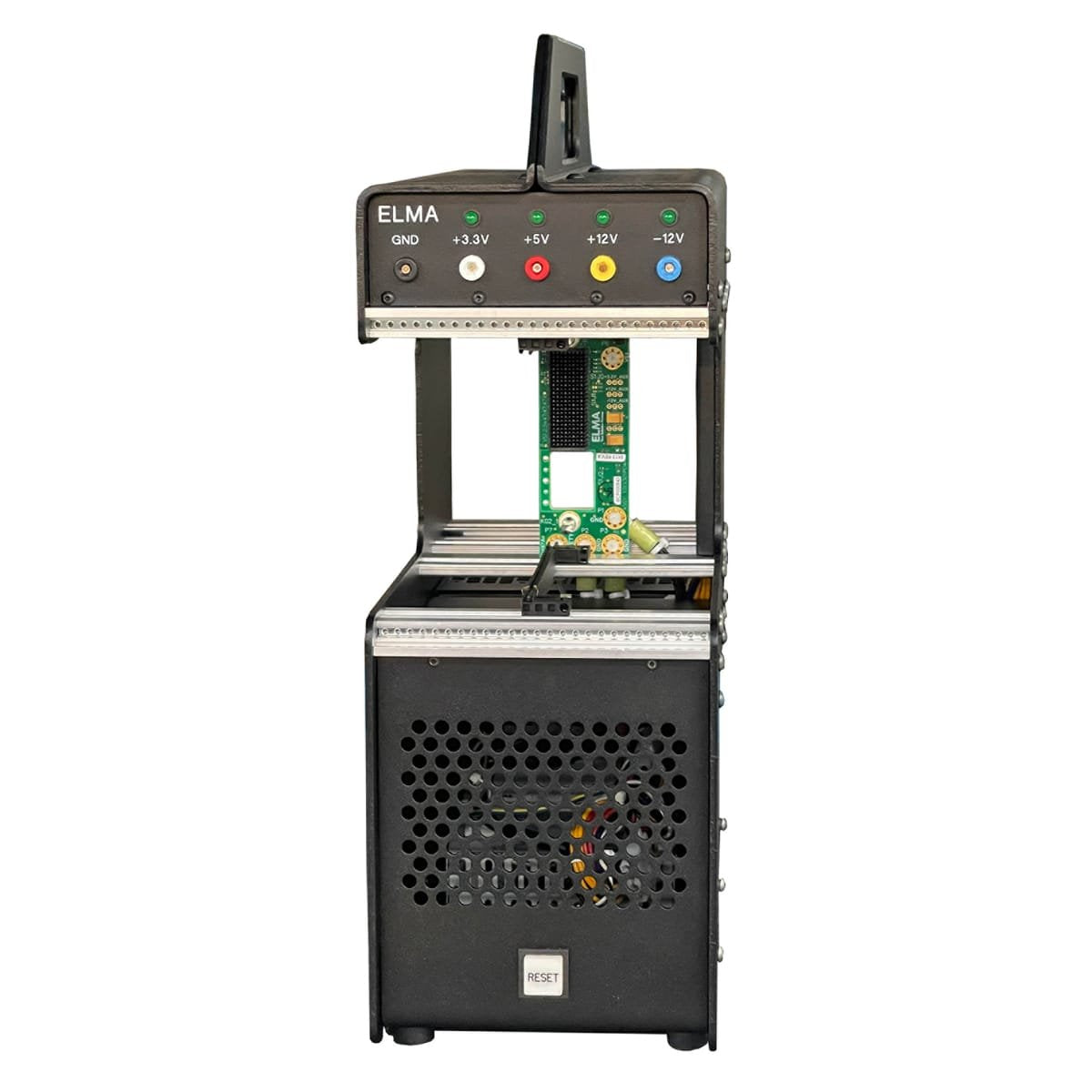

Type 39 CompacFrame Development Platform, 1 - 4 Slot 3U VPX Power and Ground Backplane
SYS Test/Development
Type 39 CompacFrame Development Platform, 1 - 4 Slot 3U VPX Power and Ground Backplane
Item/Part Number:
39P01BWX6ZY2VCC0-Tx
Request Information
Product Features
Product Information
Datasheets and Media
Technical Information
Product Features
Product Features
x
Accommodates up to 4-slot 3U OpenVPX backplanes or up to two single-slot 3U VPX power & ground only backplanes
Type 39 CompacFrame Chassis - versatile and open-access chassis that allows easy access for test and system development.
300W ATX PSU standard, with the option to replace with 3U VITA 62 plug-in power supply
Air-cooled and conduction-cooled card guides available
5º upwards tilt to card cage
Front panel voltage indicating LEDs and test points
Front panel reset and rear power entry module
Optional plug-in VITA 46.11 compliant Shelf Manager (ChMC)
3U Rear RTM Slots available
Integrated carry handle
Product Information
Product Information
x
Item/Part Number
39P01BWX6ZY2VCC0-Tx
Item Description
Type 39 CompacFrame Development Platform, 1 - 4 Slot 3U VPX Power and Ground Backplane
Architecture
VPX/OpenVPX
Slots
1
Datasheets and Media
Datasheets and Media
x
Datasheet:
Datasheet 3U 1to4 Slot VPX PnG CompacFrame
Other:
Elma Electronic Express System List VPX OpenVPX SOSA aligned+en
Technical Information
Technical Information
x
Backplane product type
: VPX (VITA 46),Power & Ground
Cooling
: Air-Cooled
Depth
: 330 mm
Environment
: Industrial Temperature and Industrial shock & vibration
Express unit
: Yes
Height
: 403 mm
Input voltage type
: AC
Media links
:
https://s3-us-west-2.amazonaws.com/catsy.655/Datasheet-3U-1to4-Slot-VPX-PnG-CompacFrame.pdf
https://s3-us-west-2.amazonaws.com/catsy.655/Elma-Electronic-Express-System-List-VPX-OpenVPX-SOSA-aligned+en.pdf
Power w
: 300
Product number
: 39P01BWX6ZY2VCC0-Tx
Region
: ["US-EN","EU-EN","AS-EN","AS-CN"]
Width
: 138 mm
