Description

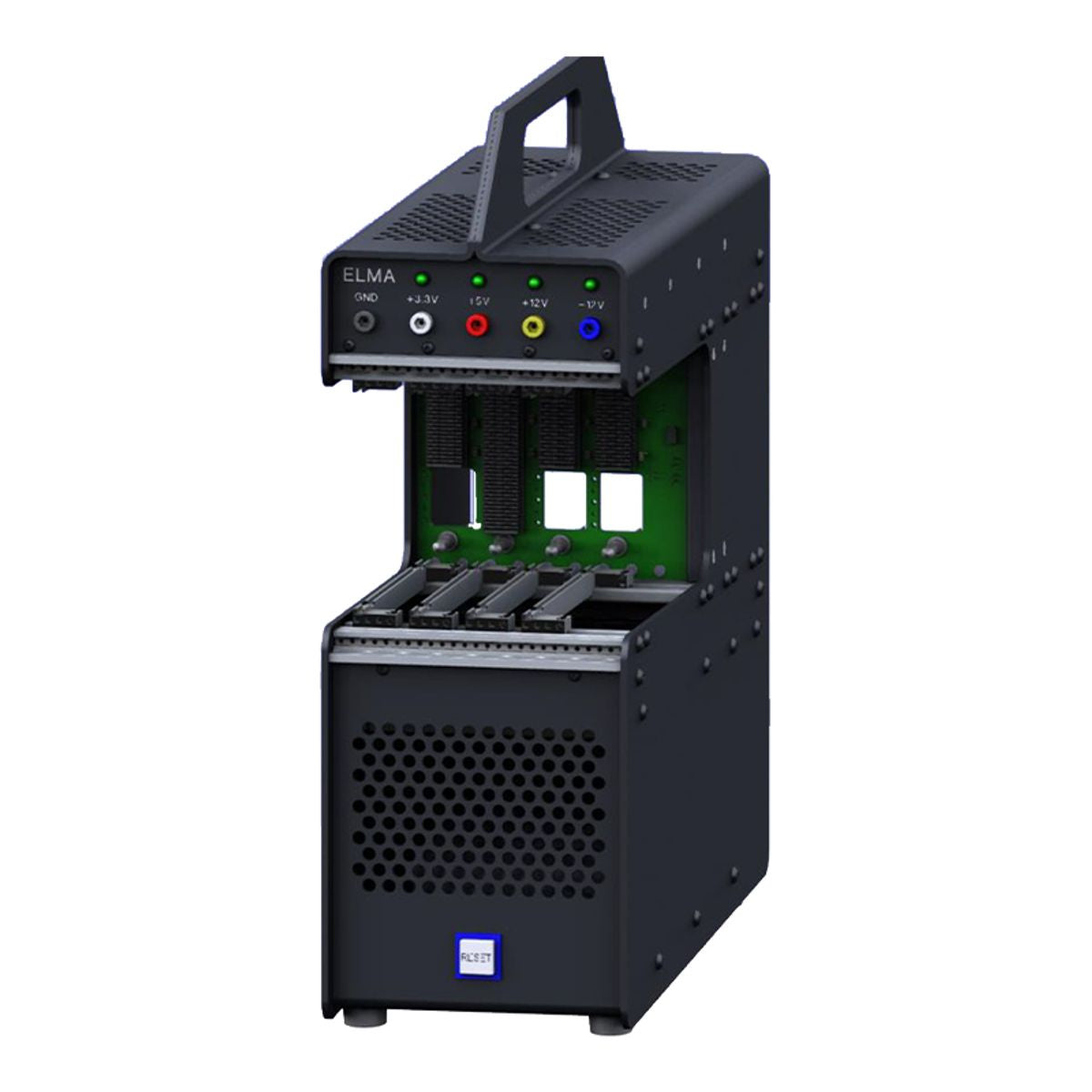

xElma’s CompacFrame is the next generation portable test platform designed to accelerate development and test of plug-in cards (PICs) aligned to the Open Group® SOSA™ Technical Standard. Accommodates up to 4-slot OpenVPX backplane.
Product Features
x- Assembled with 2 and 4-slot OpenVPX aligned to SOSA backplane (backplane model(s) 2-Slot - 1SVX302AMP-1X31, 4-Slot - 1SVX304AJP or ALP-1X31
- Type 39 CompacFrame Chassis - versatile and open-access chassis that allows easy access for test and system development.
- 300W ATX style PSU
- Air-cooled and conduction-cooled card guides are available
- Includes SMA connector for PNT (Timing) card
- Maintenance ports routed to connector on rear of backplane, brought out via breakout cable for board diagnostics
- 5º upwards tilt to card cage
- Rear accessible VITA 46.11 compliant Shelf Manager
- Front panel voltage monitoring LED’s and test points
- 3U Rear RTM Slots available
Product Information
xItem/Part Number39S0xBWX9ZY2VCC0
Item DescriptionType 39 CompacFrame Development Platform, 2 and 4 Slot 3U OpenVPX Aligned to SOSA
ArchitectureVPX/OpenVPX and SOSA
Slots6
