Product Features
x- Multi-slot test & development platform for 3U and 6U VPX and OpenVPX™ boards
- 3U or 6U cards supported with a form factor adapter
- Each slot can be configured independently for power requirements
- 1.6" slot pitch accommodates wider modules compatible with VITA 48.5 (air flow-through), and easy access to components on either side of boards
- Enables use of standard VPX RTM modules and access to J1 high speed signals
- Chassis power input: 97-264 VAC autoranging, 580 – 700 watt fixed power supplies
- High performance cooling fans
- Aluminum construction with scratch-resistant black painted finish
- Built-in voltage monitor with green LEDs for bus voltages compliance
- Top handle for ease of portability with desktop feet on bottom. VPX development platforms let system developers and system integrators power up one or more VPX boards and interconnect their fabric connections as they would in the target application
Product Information
xItem/Part Number39E02PSX94Y2VCEX

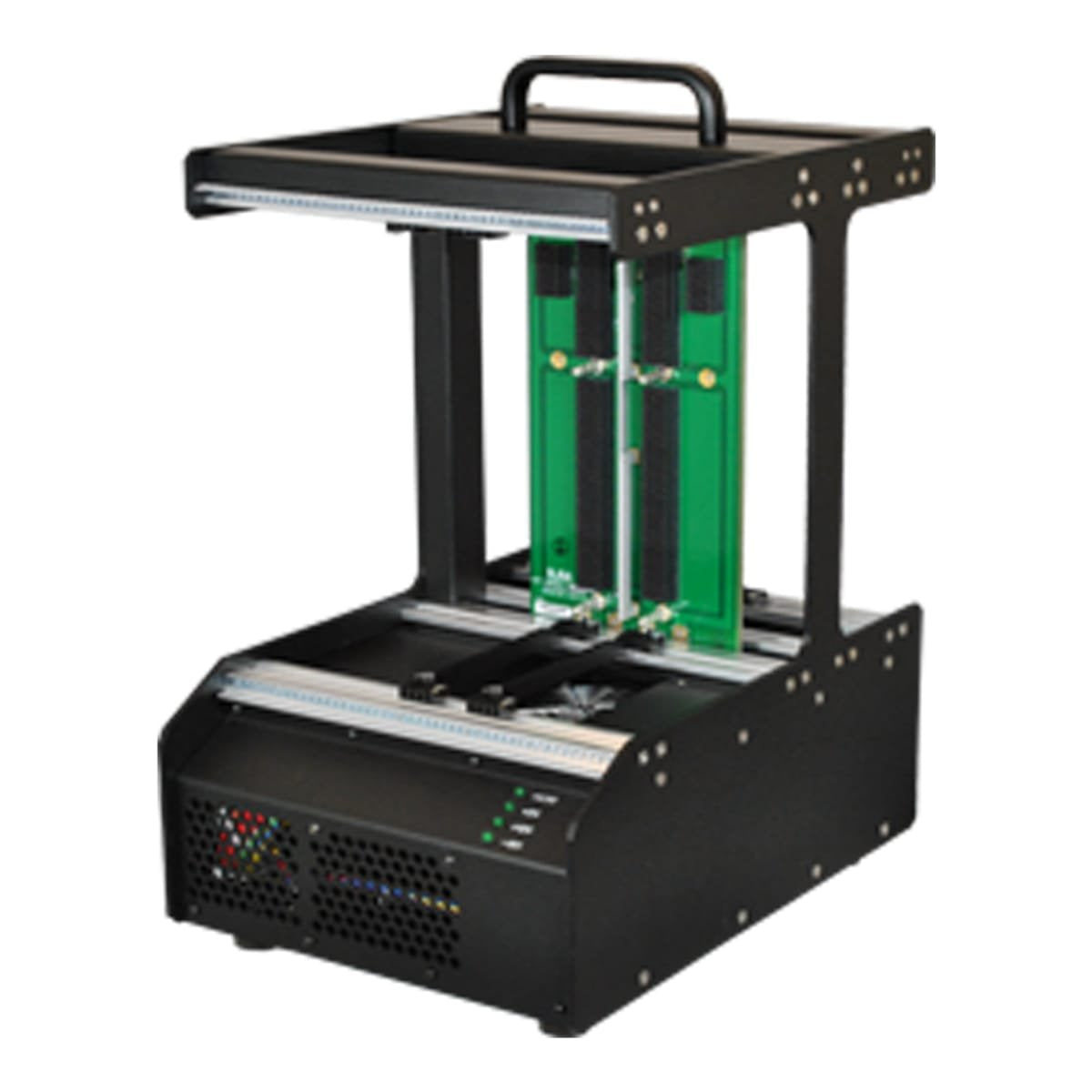

Item DescriptionType 39 E-Frame Development Platform, 2 Slot 6U VPX
ArchitectureVPX/OpenVPX
Slots2
Datasheets and Media
xTechnical Information
xCooling: Air-Cooled
Depth: 13 in.
Express unit: Yes
Height: 9 U
Input voltage type: AC
Media links: https://s3-us-west-2.amazonaws.com/catsy.655/catalog-39E02PSX94Y2VCEX.pdf
https://s3-us-west-2.amazonaws.com/catsy.655/datasheet-39E02PSX94Y2VCEX.pdf
https://s3-us-west-2.amazonaws.com/catsy.655/Elma-Electronic-Express-System-List-VPX-OpenVPX-SOSA-aligned+en.pdf
https://s3-us-west-2.amazonaws.com/catsy.655/OrderingKey.pdf
https://s3-us-west-2.amazonaws.com/catsy.655/datasheet-39E02PSX94Y2VCEX.pdf
https://s3-us-west-2.amazonaws.com/catsy.655/Elma-Electronic-Express-System-List-VPX-OpenVPX-SOSA-aligned+en.pdf
https://s3-us-west-2.amazonaws.com/catsy.655/OrderingKey.pdf
Power w: 700
Product number: 39E02PSX94Y2VCEX
Region: ["US-EN","EU-EN","AS-EN","AS-CN"]
Width: 42 HP
