Description

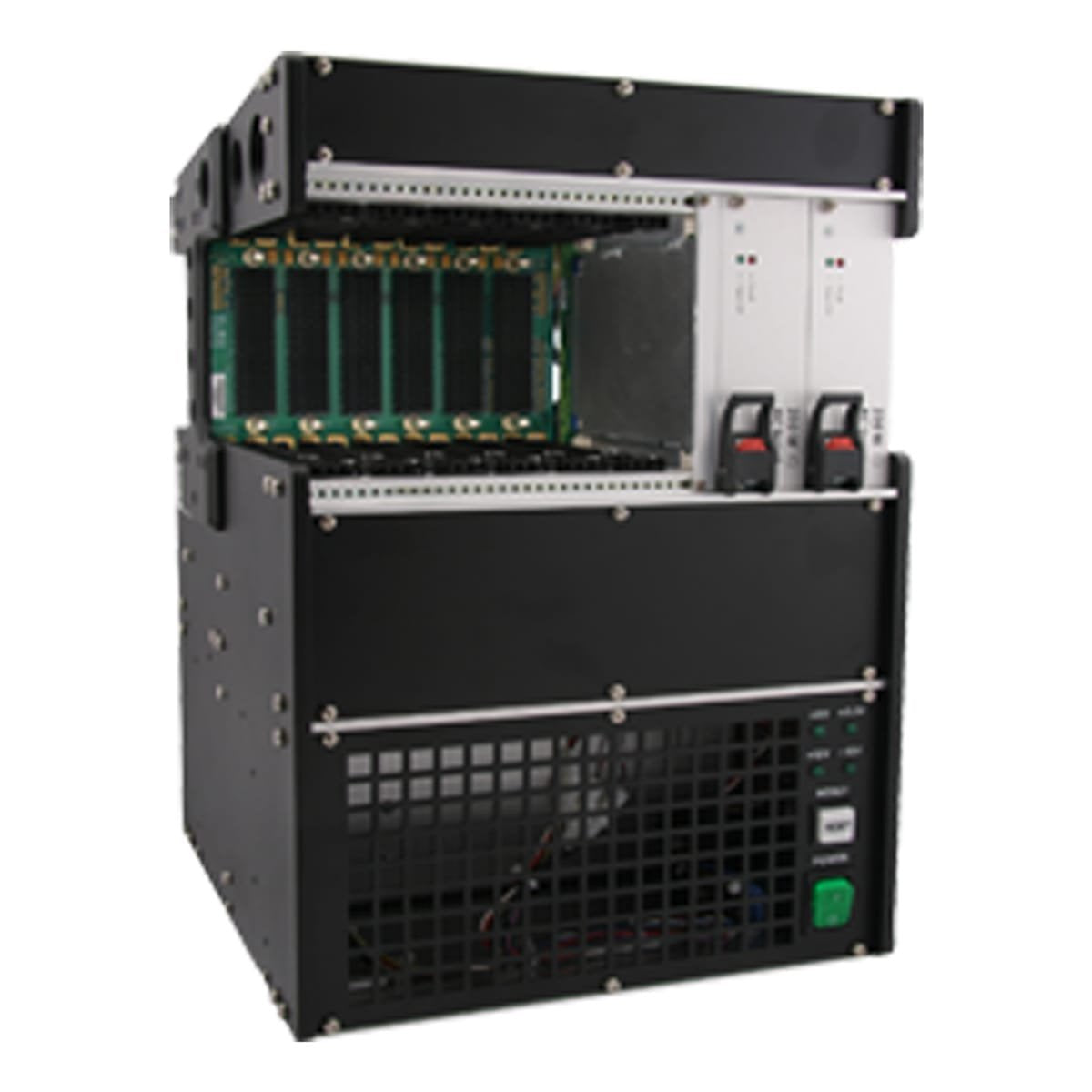

xThe Type 39 E-Frame (Short), test platform supports 3U, VPX development. With a rugged aluminum construction, the Type 39 E-frame is 9U overall to hold 3U cards. Available in compact (49HP) and full (84HP) for mounting 3-15 slots at 1" pitch.
Configure Your Solution
Product Features
x- Half width version (49HP)
- Holds 5 front 3U x 160mm cards
- RTM mounting (rear transition module)
- 3U 5-slot VPX power and ground backplane
- Pluggable 250Watt VITA 62 power supply
- High performance cooling via front and rear mount fan trays
- Rear AC power input module with GND stud
- System monitoring with RS232 interface (optional)
- Front accessible test points and monitoring LEDs for: 3.3V, ± 5V, ±12V, ± 24V & ± 48V
- Fixed and plug mount PSU options: 90-264VAC. Front accessible test points and monitoring LEDs for| +3.3V, +/-5V, +/-12V, +/- 24V, and +/- 48VDC. The Type 39 E-Frame features high performance 150cfm, fans under the card cage.
Product Information
xItem/Part Number39E05BUX94Y2VPB0
Item DescriptionType 39 E-Frame Development Platform, 5 Slot 3U VPX Power & Ground
ArchitectureVPX/OpenVPX
Slots5
