Product Features
x- Half width version (49HP)
- Holds 6 front 3U x 160mm cards
- RTM mounting (rear transition module)
- 3U 6-slot twisted ring with control plane Open VPX backplane
- Dual pluggable 250Watt VITA 62 power supplies
- High performance cooling via front and rear mount fan trays
- Rear AC power input module with GND stud
- System monitoring with RS232 interface (optional)
- Front accessible test points and monitoring LEDs for: 3.3V, ± 5V, ±12V, ± 24V & ± 48V
- Fixed and plug mount PSU options: 90-264VAC. Front accessible test points and monitoring LEDs for| +3.3V, +/-5V, +/-12V, +/- 24V, and +/- 48VDC. The Type 39 E-Frame features high performance 150cfm, fans under the card cage.
Product Information
xItem/Part Number39E06WUX94Y2VPBX

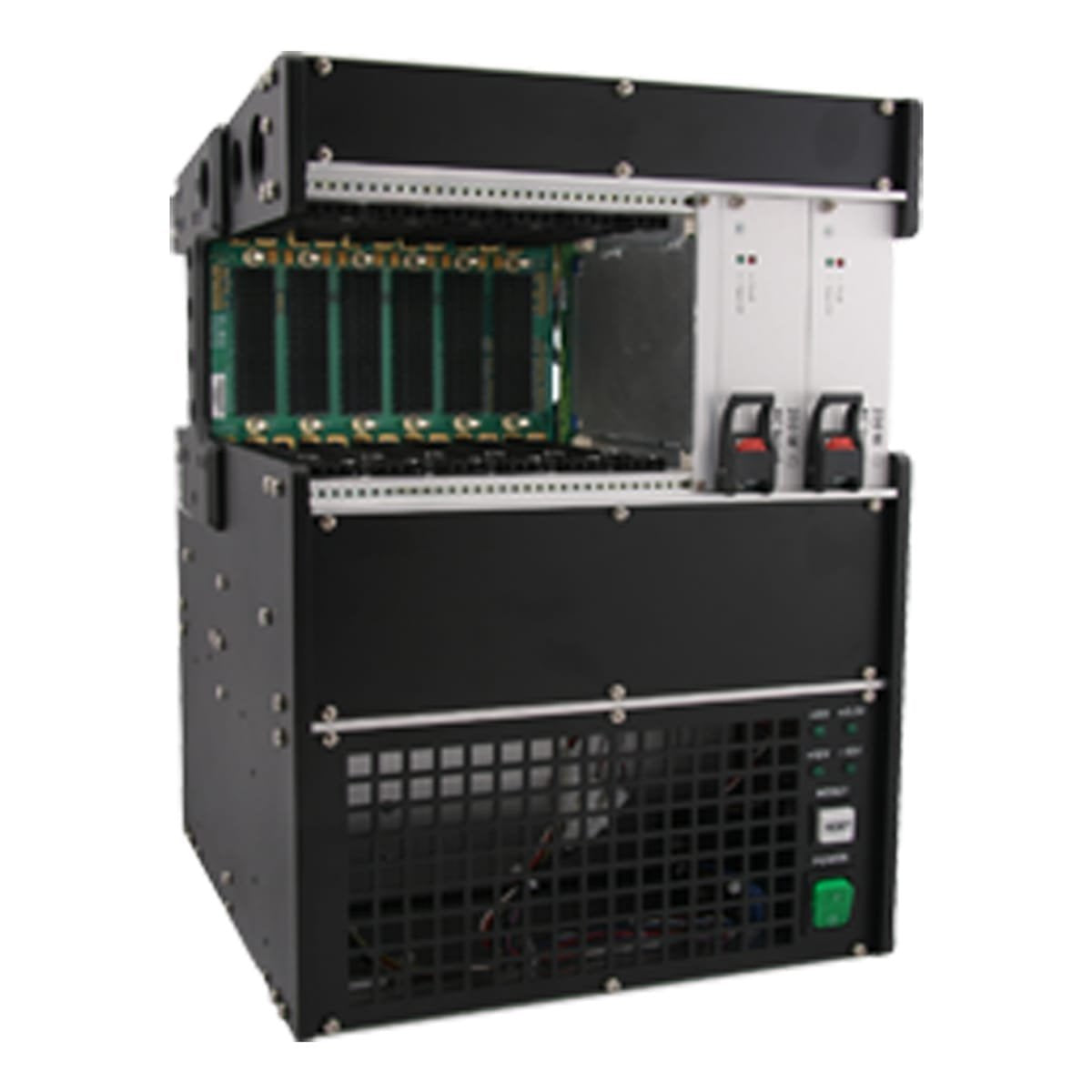

Item DescriptionType 39 E-Frame Development Platform, 6 Slot 3U OpenVPX
ArchitectureVPX/OpenVPX
Slots6
Datasheets and Media
xTechnical Information
xCooling: Air-Cooled
Depth: 298 mm
Environment: Industrial Temperature and Industrial shock & vibration
Express unit: Yes
Height: 3 U
Input voltage type: AC
Media links: https://s3-us-west-2.amazonaws.com/catsy.655/catalog-39E06WUX94Y2VPBX.pdf
https://s3-us-west-2.amazonaws.com/catsy.655/datasheet-39E06WUX94Y2VPBX.pdf
https://s3-us-west-2.amazonaws.com/catsy.655/Elma-Electronic-Express-System-List-VPX-OpenVPX-SOSA-aligned+en.pdf
https://s3-us-west-2.amazonaws.com/catsy.655/OrderingKey.pdf
https://s3-us-west-2.amazonaws.com/catsy.655/datasheet-39E06WUX94Y2VPBX.pdf
https://s3-us-west-2.amazonaws.com/catsy.655/Elma-Electronic-Express-System-List-VPX-OpenVPX-SOSA-aligned+en.pdf
https://s3-us-west-2.amazonaws.com/catsy.655/OrderingKey.pdf
Power w: 250
Product number: 39E06WUX94Y2VPBX
Region: ["US-EN","EU-EN","AS-EN","AS-CN"]
Width: 49 HP
