Description

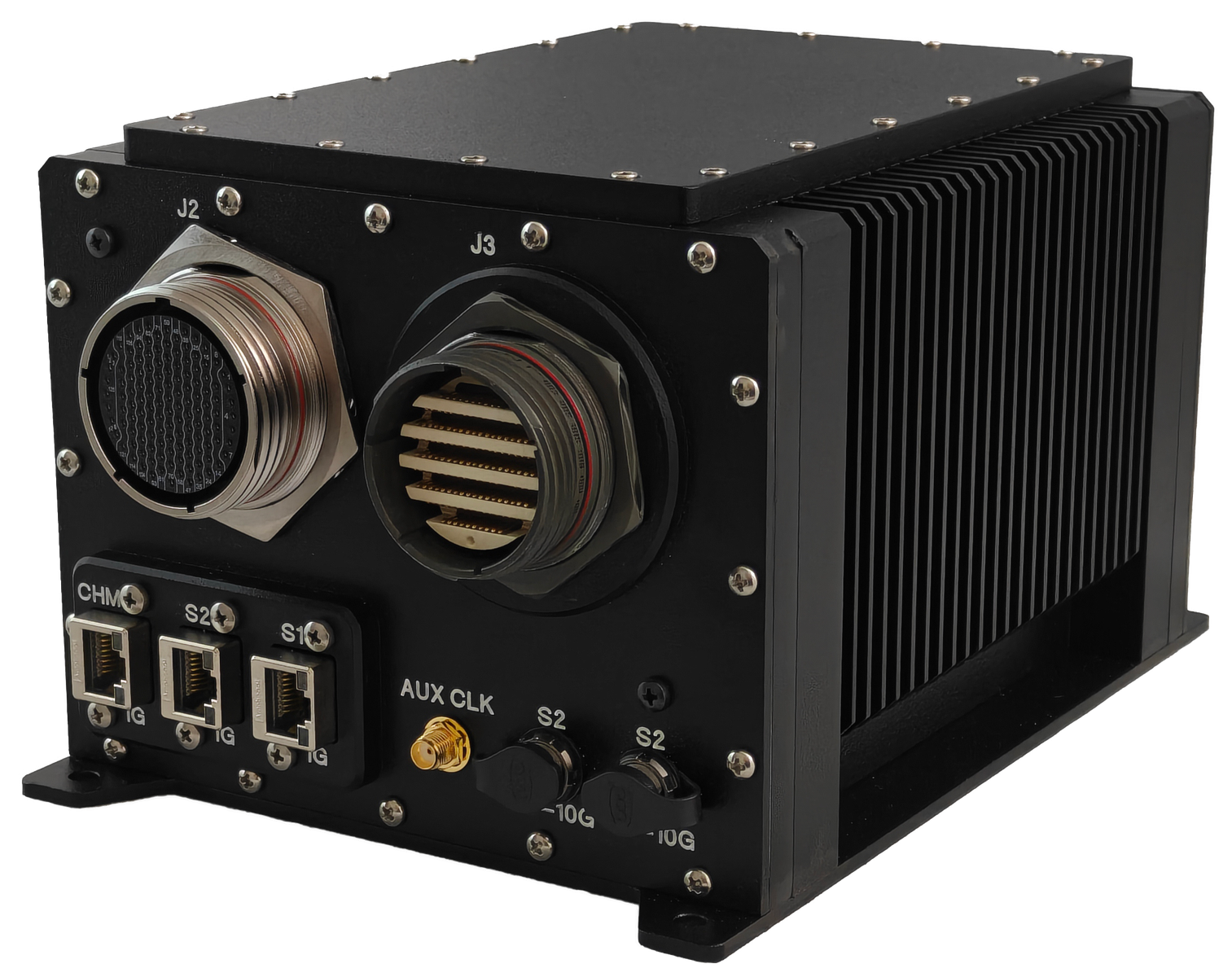

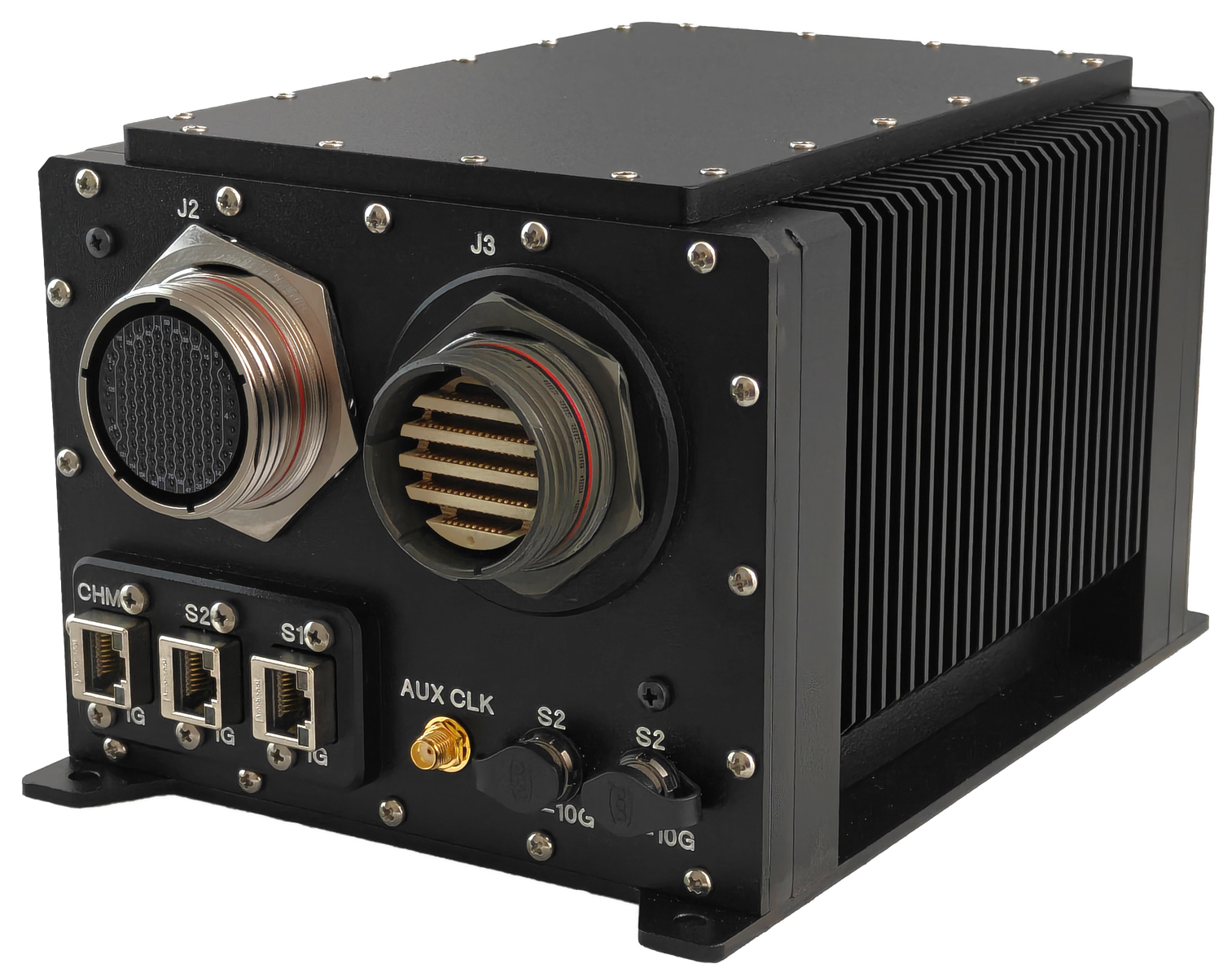

xThe VersaPLUS Deployment Kit is a deployable three-slot VITA 90 VNX+ system for small form factor applications. The kit arrives assembled and configured: the Raspberry Pi CM5 SBC in payload slot 1, the 320W PSU in the VITA 90.3 PSU slot, and an integrated chassis manager/maintenance port aggregator.
Product Features
x- Deploy a pre-integrated VNX+ system immediately
- Take advantage of standards-based refresh paths for long-life defense programs and rapid technology insertion
- SOSA Aligned VNX+ Deployable Chassis with 2 payload + 1 PSU slot; passive cooling
- VNX+ Raspberry Pi CM5 SBC; quad ARM Cortex-A76; 16GB ECC; 64GB eMMC; <10W envelope
- Open payload slot for future expansion
- VNX+ 320W Power Supply installed in the VITA 90.3 slot
- Included cabling kit breaks out rugged chassis connectors to standard commercial I/O interfaces
- Integrated chassis manager and maintenance port aggregator
- Rugged design; designed to military standards, MIL-STD-810, MIL-STD-461, MIL-STD-704, MIL-STD-1257 and D0-160 section 25 ESD
Product Information
xItem/Part Number50.A.A.Z64G.X.L.B.VERSAPLUS-DEPL-KIT
Item DescriptionVersaPLUS Deployment Kit: Off-The-Shelf Application Ready VITA 90 VNX+ System
ArchitectureVNX+ and SOSA
