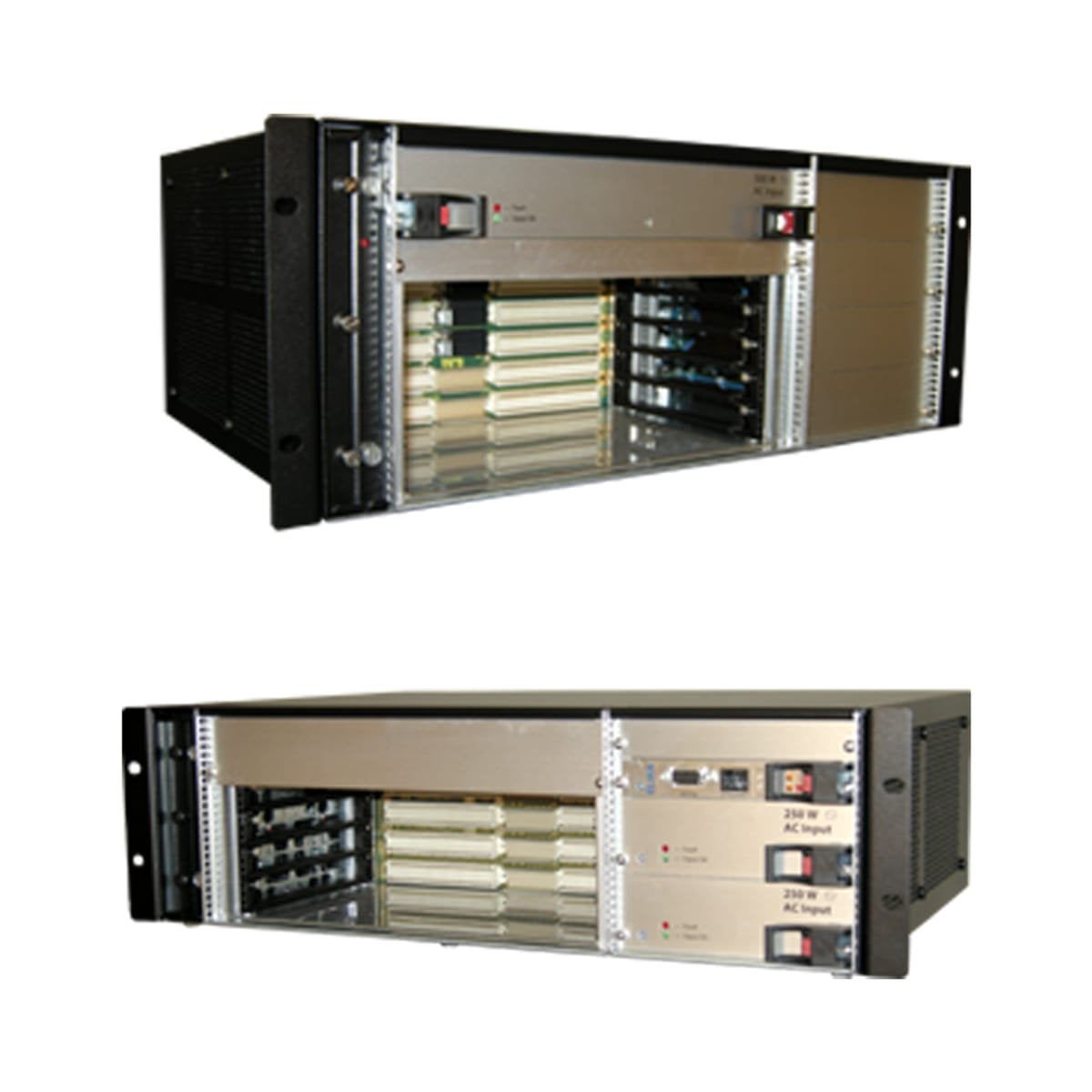

VITA, Type 39V, 19" Rackmount Family
VITA, Type 39V, 19" Rackmount Family
VITA, Type 39V, 19" Rackmount Family
SYS 19-inch Rackmount

VITA, Type 39V, 19" Rackmount Family

Item/Part Number: 39V-VITA
Request Information
fallback form link
Description
Description
x

The Type 39V is a advanced generation of enclosures for VITA based bus architecture (VPX, VME, VME64X, and VXS) applications. This family of chassis showcases an optimal design that addresses EMC, cooling, and ease of manufacturing.


Configure Your Solution
Product Features
Product Features
x
  • 19” Rackmount/Desktop fully compliant to Eurocard, IEEE 1101.10/11
  • 1U, 2U, 3U, 4U and 5U x 84HP x 290mm (H x W x D)
  • 6U horizontal card mounting
  • 2-10 slot VITA-Based System Platforms (VME, VME64x, VPX, VXS, VXI)
  • Advanced EMC shielding to meet CE, FCC, and NEBS
  • Cooling side to side
  • Pluggable PSU
  • Connector options: 3 Row (96 PIN), 5 Row (160 PIN), 5 Row + P0
  • Ready to run - turnkey solution
  • The black powder coated platforms are available in rackmount or desktop versions. They comply fully to IEEE 1101.10/11 specifications with horizontal mounting for 6U x 160mm VITA cards from the front and 6U x 80mm I/O cards from the rear. T
Product Information
Product Information
x
Item/Part Number39V-VITA
Item DescriptionVITA, Type 39V, 19" Rackmount Family
ArchitectureVME/VME64x, VPX/OpenVPX, and Other
Datasheets and Media
Datasheets and Media
x

Test Report 1:

test report 39V VITA
