Description

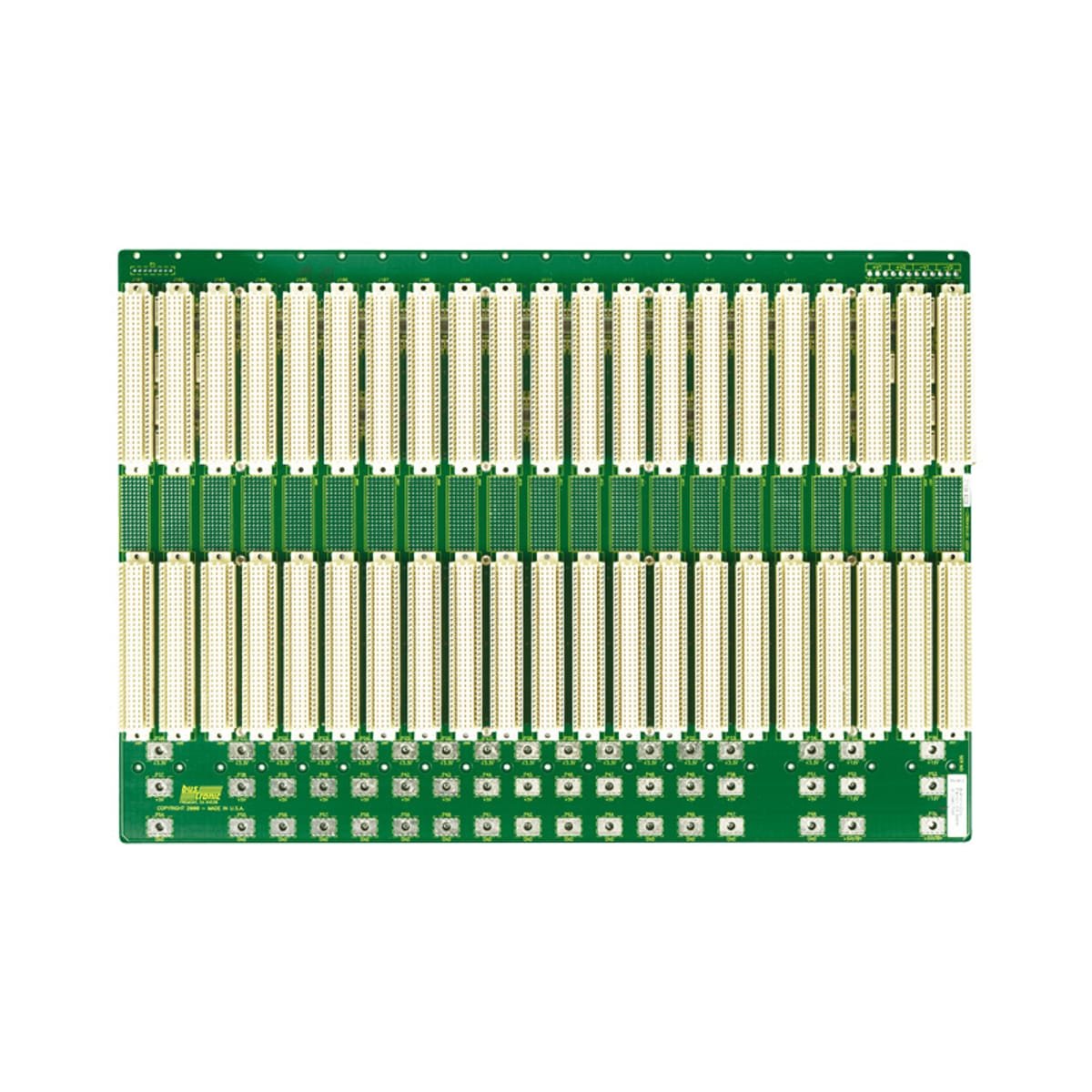

x6U VME64x Backplane 21-slot without P0, compliant with ANSI/VITA 1.1-1997, VME extension standard. Includes termination passive inboard, daisy chain automatic active, and power bugs on top and bottom of slots.
Product Features
x- Meets or exceeds ANSI/VITA 1.1-1997 VME extension standard
- Exceeds ANSI/VITA 1-1994 and IEEE P1014 specifications
- 6U height, 2-21 slots
- 10-layer controlled impedance stripline design
- Active BUSGRANT, IACK daisy chain
- Power connections at bottom for easier cabling
- Backplane stiffeners to provide durability, reliability
- Options for compliance to VITA 1.7 Increased Current Inspection
- Versions also available in 3U, 7U and 9U
Product Information
xItem/Part Number101V64XC21-1620
Item DescriptionVME64X 6U 21 Slot no P0
ArchitectureVME/VME64x
Slots21
