Description

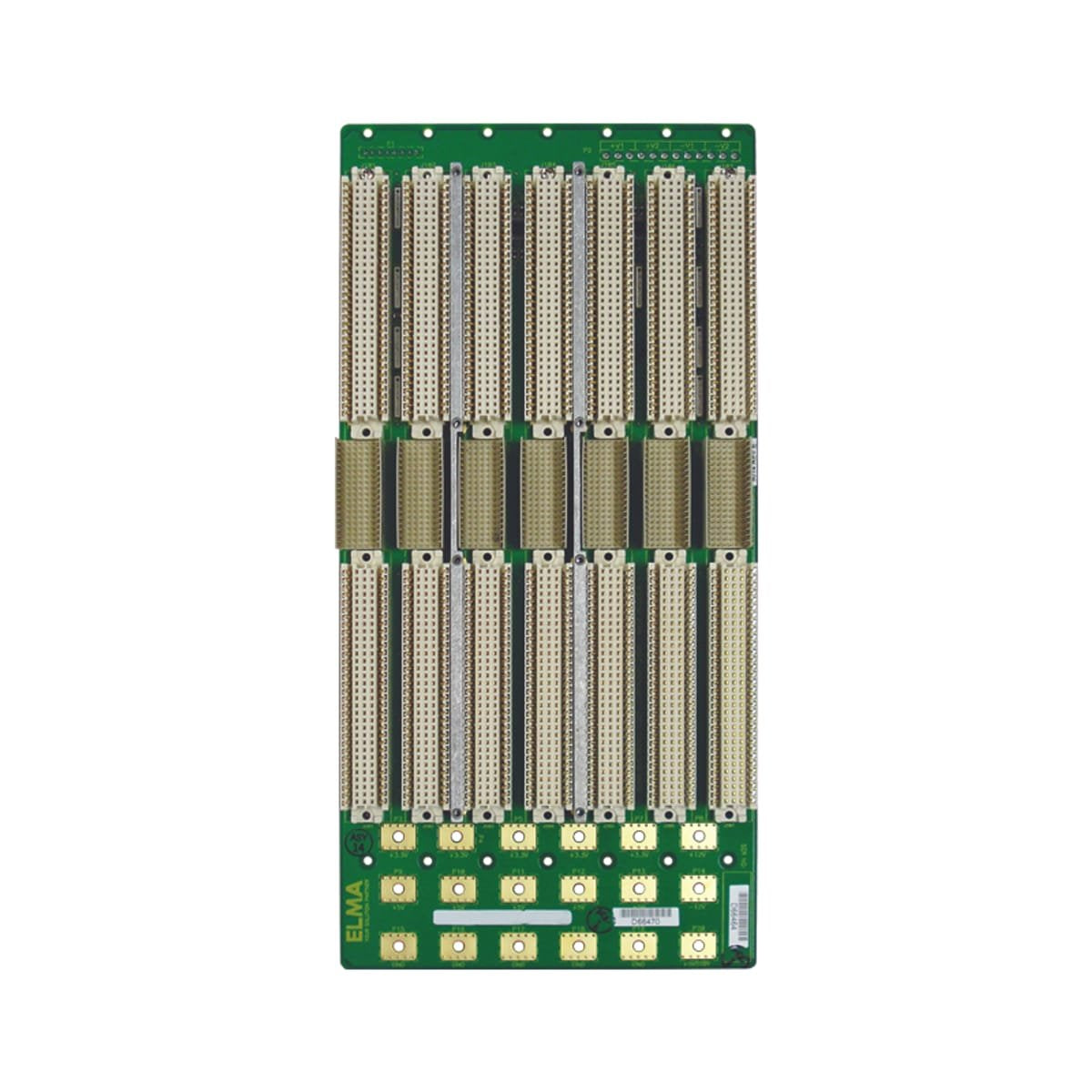

x7U VME64x Backplane 7-slot with P0, compliant with ANSI/VITA 1.1-1997, VME extension, and VITA 1.7 Increased Current. The extra 1U provides room for extra power bugs or busbars. Includes termination passive inboard and daisy chain automatic active.
Product Features
x- Meets or exceeds ANSI/VITA 1.1-1997 VME extensions standard
- Exceeds ANSI/VITA 1-1994 and IEEE P1014 specifications
- 7U height, 2-21 slots
- 10-layer controlled impedance stripline design
- Active BUSGRANT, IACK daisy chain
- Power connections at bottom for easier cabling
- Superior power distribution
- Backplane stiffeners to provide durability, reliability
- Compliant to VITA 1.7 Increased Current Specification
Product Information
xItem/Part Number101V64XM07-0621R
Item DescriptionVME64X 7U 7 slot with P0
ArchitectureVME/VME64x
Slots7
